B-40D-0130-0048-PPY (Each)

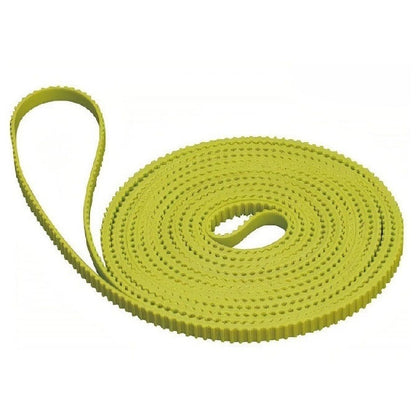

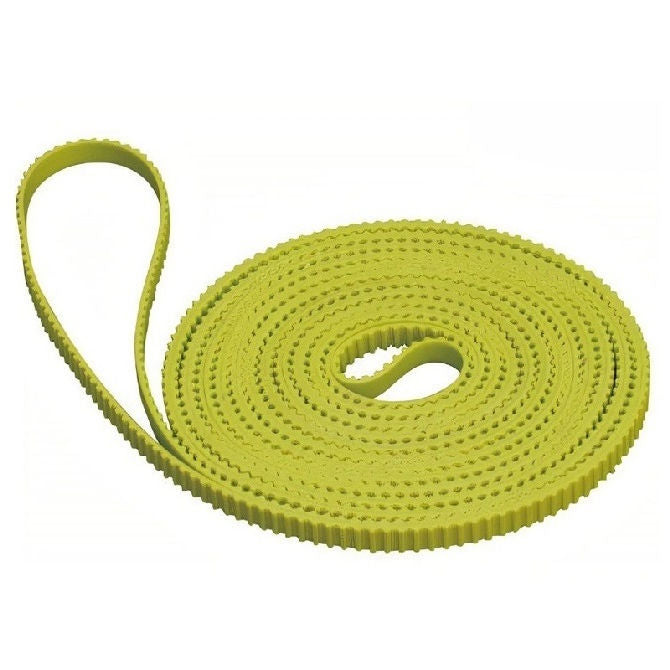

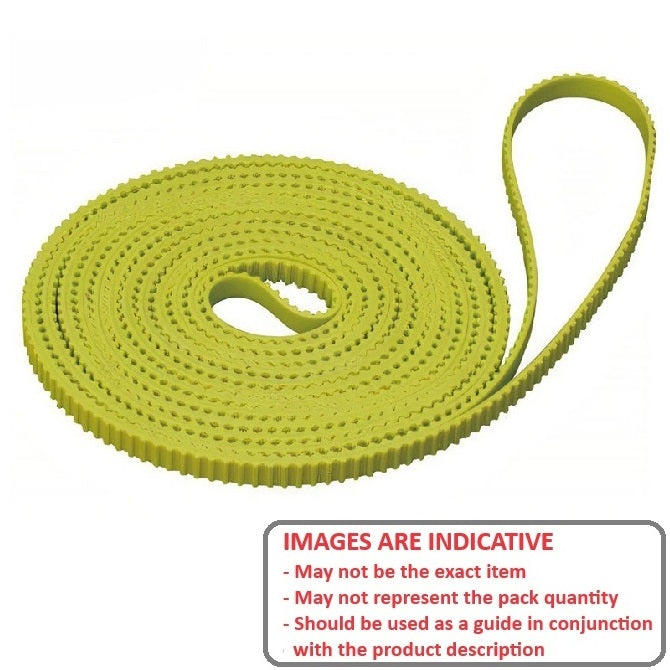

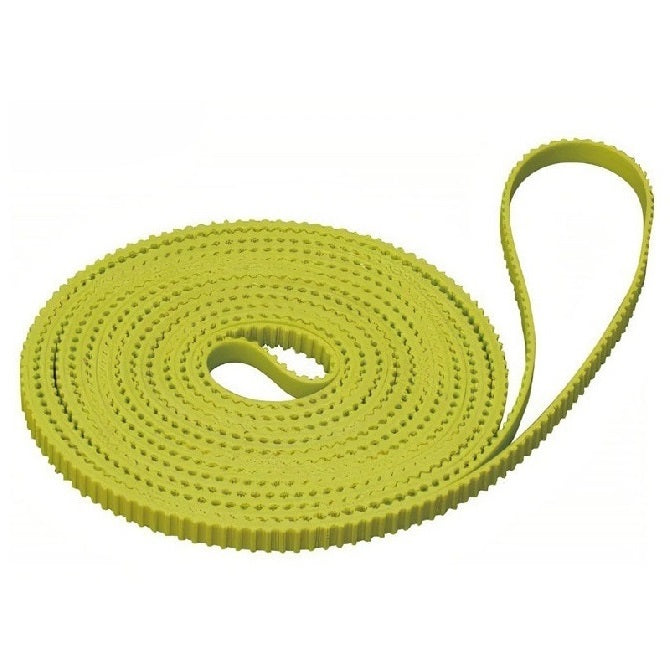

Inch Timing Belts - 130 tooth - 269.49x4.8 mm 2.073mm Pitch 40DP - Polyurethane with Polester Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Order 50 or more
for $11.01 AUD Each
130 tooth - 269.49x4.8 mm Inch Timing Belts - Polyurethane with Polester Cords - Sold per Each:
Base Category: Belts - Inch Timing
Top Level Category: Belts - Inch Timing - 2.073mm Pitch 40DP - 4.8mm Wide
Product Details
Number of Teeth: 130Polyurethane with Polester Cords
- Number of Teeth: 130
- Length: 269.49mm
(269.49mm is 10.61 in.)
- Width: 4.8mm
(4.8mm is 0.189 in.)
- Reinforcement: Polyester
- Appearance: Yellow
- Breaking Strength: 267N
- Min Temperature (C): -18Deg C
- Max Temperature (C): 82Deg C
- Tooth Angle (A): 60°
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® B40D01300045PP
- A6G6-130018
- A6G6130018
- A6G6M130045
- B50D01300048PPY
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
B40D01300048PPY, B40D0130
