B-40D-0130-0048-PPY - Datasheet
MBA
Category Information

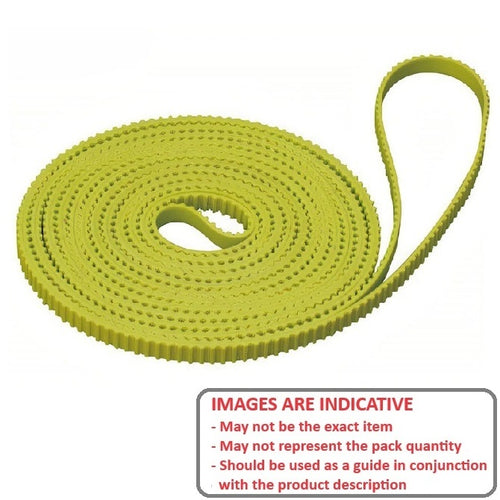

Belts - Inch Timing - 2.073mm Pitch 40DP - 4.8mm Wide4.8mm Wide 2.073mm Pitch 40DP Inch Timing Belts. Standard Series Timing Belts 2.072mm or 0.0816 inch pitch. Also known as LT.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 0.6mm
- Tooth Height (H) - 0.46mm
- Belt Height (W) - 1.2mm - Corner Radii ( r ) - 0.2mm
- Pitch (P) - 2.073mm (0.0816 inch)
Product Data
- Number of Teeth : 130
- Length
269.49
mm
(Equiv. 10.61 in.) - Width
4.8
mm
(Equiv. 0.189 in.) - Reinforcement Polyester
- Appearance Yellow
- Breaking Strength 267 N
- Min Temperature (C) -18 Deg C
- Max Temperature (C) 82 Deg C
- Tooth Angle (A) 60 °
- Material Polyurethane with Polester Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates B40D01300045PP
- B50D01300048PPY
- A6G6-130018
- A6G6M130045
- A6G6130018
