CLP-120-0568G-CZ (2 Pcs)

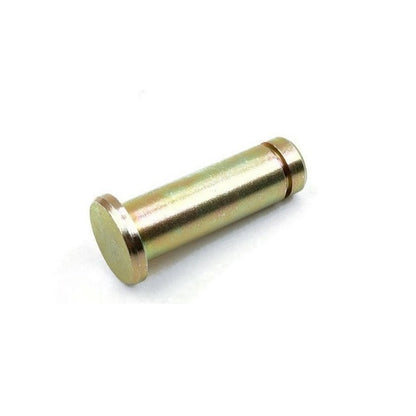

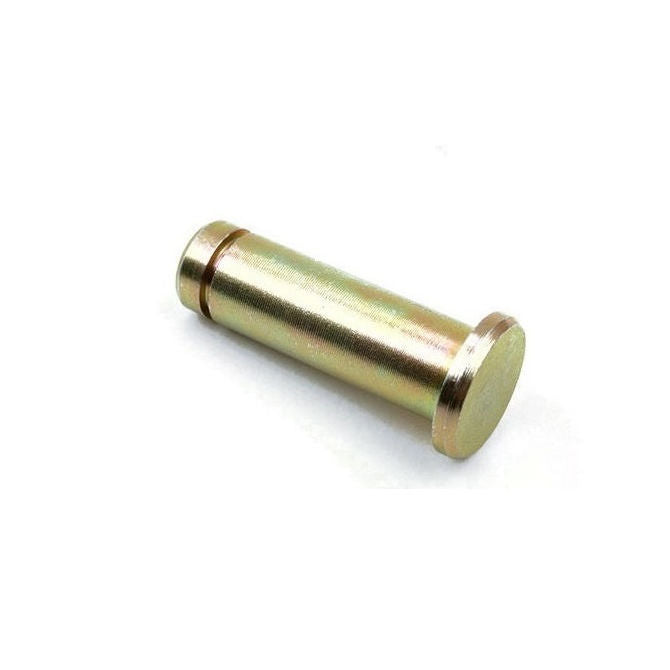

Clevis Pins - 12x56.75x60 mm Groove Locking - Zinc Plated Low Carbon Steel Pin

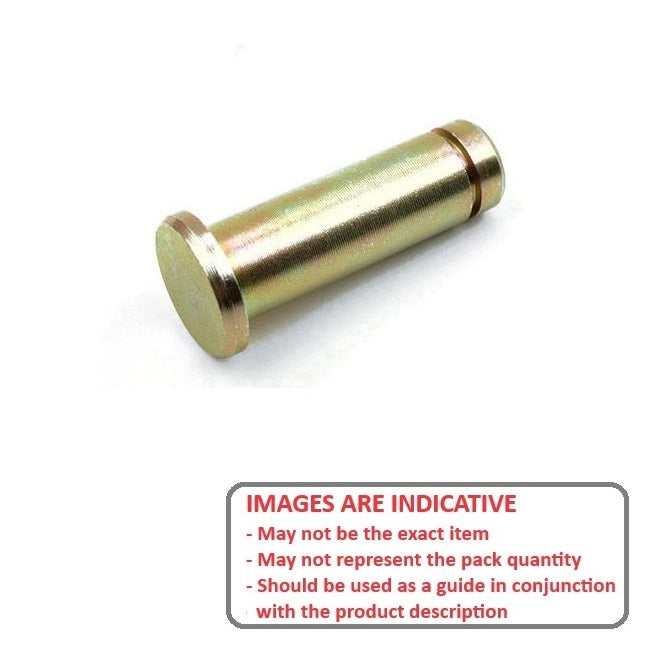

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Clevis Pins - 12x56.75x60 mm - Zinc Plated Low Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Assortment Kits
Price:
$9.05 AUD
$9.05 AUD
per 2
Backorder
Order 50 or more pack (100 pcs) for $8.15 AUD per 2
Backorder now! Backorders for more than the stock quantity are expected before Sep 22, 2025

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Groove Locking - Zinc Plated

Product Details


Additional stock available from USA subject to Prior Sale = 4523

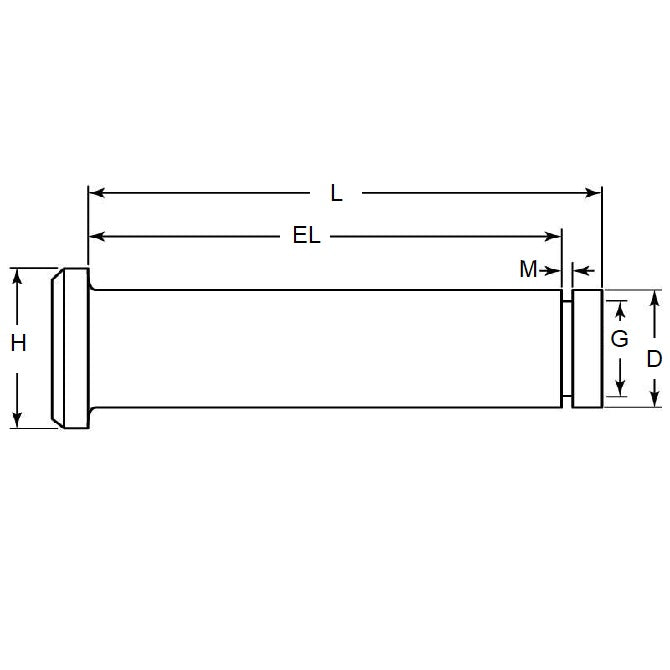

Nom. Pin Diameter (D): 12.00mm
- 0.05 / - 0.18
(12.00mm is 0.472 in.)

Zinc Plated Low Carbon Steel
  • Nom. Pin Diameter (D): 12.00mm
    - 0.05 / - 0.18
    (12.00mm is 0.472 in.)
  • Grip Length (EL): 56.75mm
    + 0.51 / - 0.00
    (56.75mm is 2.234 in.)
  • Nom. Length (L): 60.00mm
    + 0.51 / - 0.00
    (60.00mm is 2.362 in.)
  • Head Diameter (H): 20.00mm
  • Groove Diameter (G): 10.0mm
  • Groove Width (M): 1.3mm
  • Suggested E-Clip: ECL-0100-0110-S15

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor CLPGMZ-120-060
  • CLP1200600GZ
  • CLP1200568GZ
  • CLPGMZ120060

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
