T-0120-0260-G-51101-S420-ECO (100 Pcs)

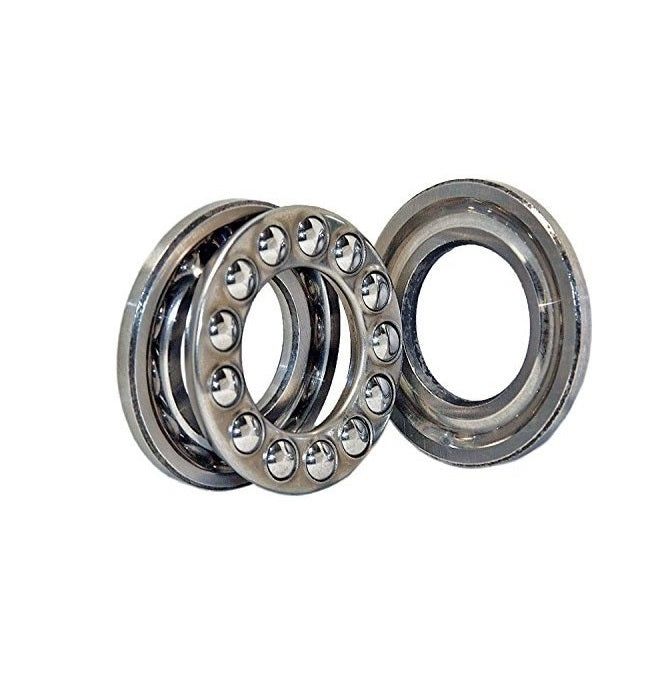

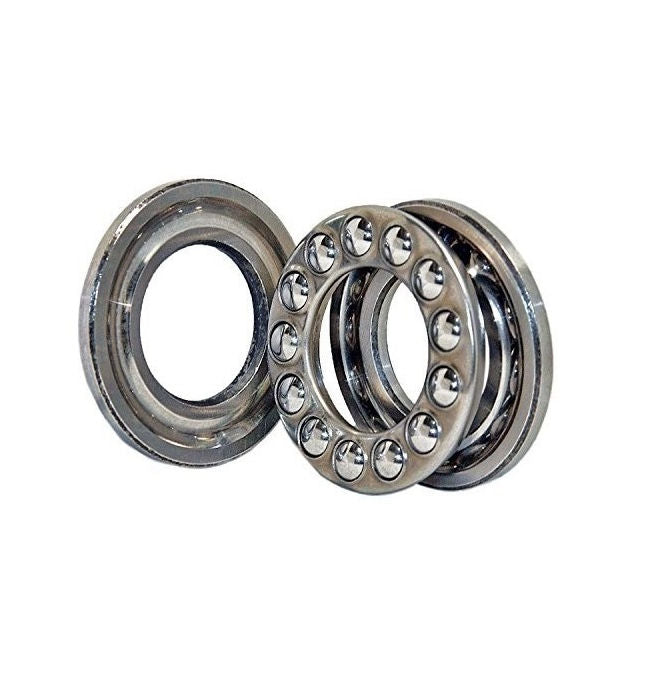

Thrust Ball Bearings - 12x26x9 mm / 13 mm Grooved - Stainless Steel AISI 420C Bearing

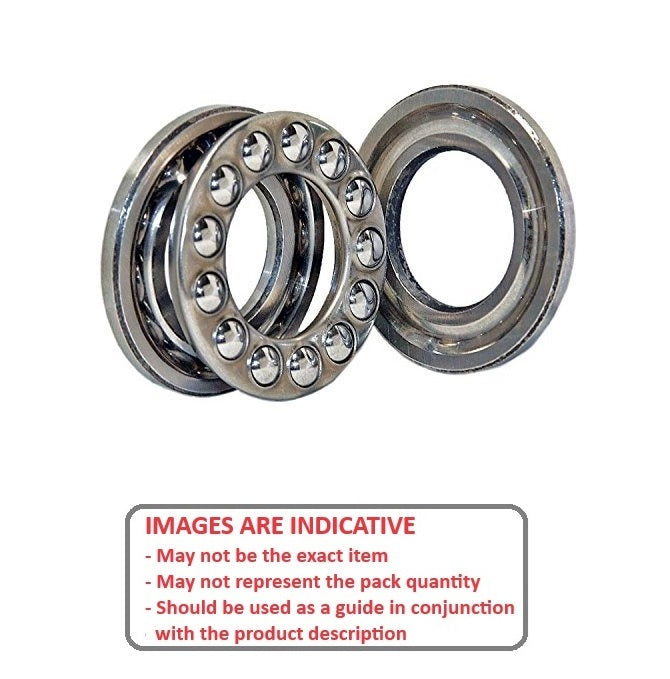

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thrust Ball Bearings - 12x26x9 mm / 13 mm Grooved - Stainless Steel AISI 420C
1 4

ECO

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Thrust Bearings PDF Catalogue
Shafting
Price:
$418.05 AUD
$773.64 AUD $418.05 AUD
per 100
Backorder
Order 50 or more pack (5000 pcs) for $376.25 AUD per 100
Backorder now! Backorders for more than the stock quantity are expected before Sep 21, 2025

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Grooved - Stainless Steel

Product Details

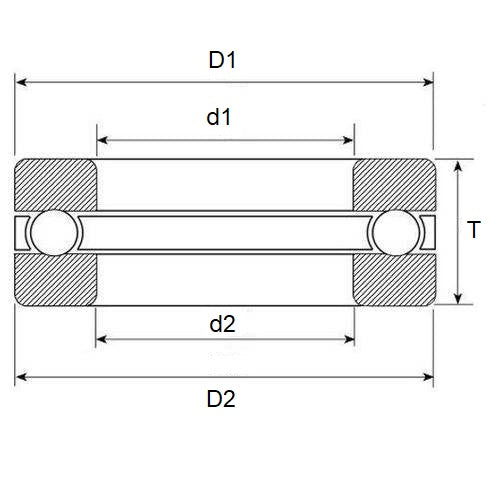

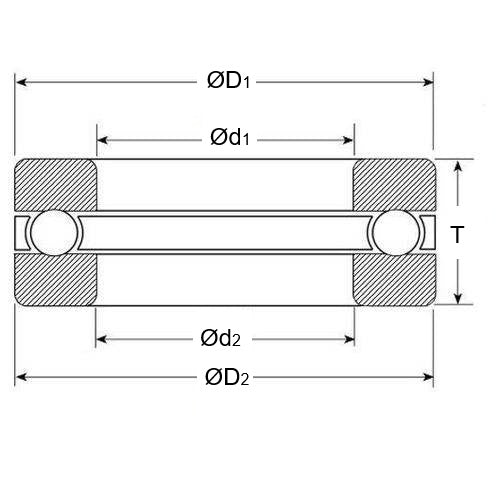

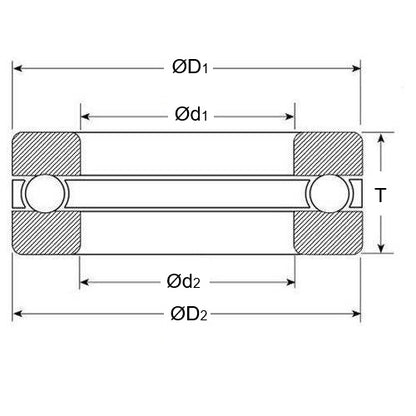

Shaft Diameter (d1): 12.000mm
(12.000mm is 0.472 in.)

Stainless Steel AISI 420C
  • OD (D1): 26.000mm
    (26.000mm is 1.024 in.)
  • Thickness (T): 9.000mm
    (9.000mm is 0.354 in.)
  • Bore (d2): 13.000mm
  • OD (D2): 26.000mm
  • Dynamic Load Capacity: 1570kgf
  • Info: Chinese
  • Cage Type: AIS I 420 Stainless Steel

Brand: ECO
Country of Origin: TW
