6901-ZZ-NR (PK-50)

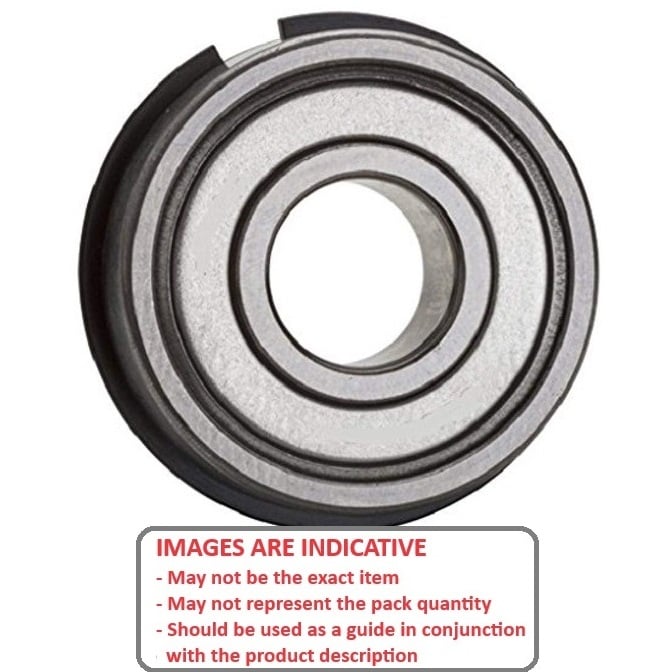

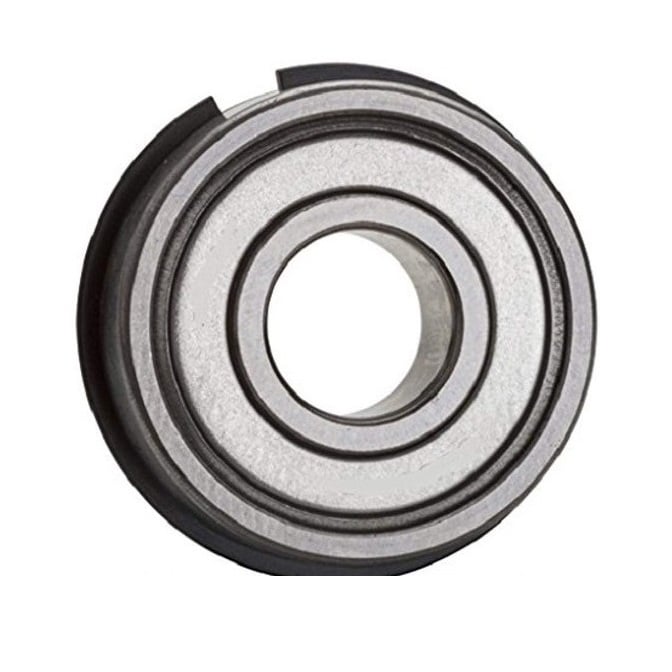

Single Row Ball Bearings - 12x24x6 mm with Snap Ring - Chrome Steel SAE 52100 Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more packs of 50 (2500 pcs)
for $736.41 AUD per 50 pack
12x24x6 mm Single Row Ball Bearings - Chrome Steel SAE 52100 - Sold per pack of 50:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - with Snap Ring - Standard - Chrome Steel
Product Details

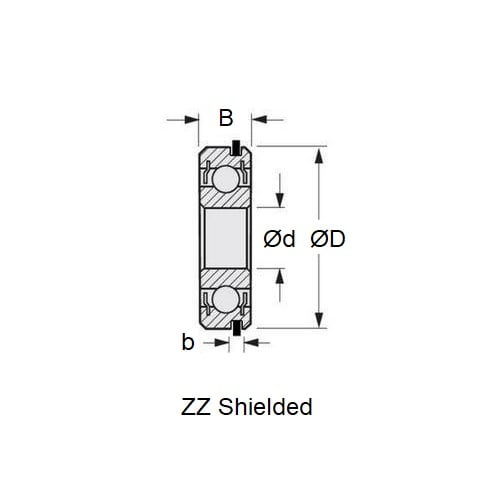

This bearing has a snap ring on the OD
ID (d): 12.000mm
+ 0.000 / - 0.0075
(12.000mm is 0.472 in.)
Chrome Steel SAE 52100
- ID (d): 12.000mm
+ 0.000 / - 0.0075
(12.000mm is 0.472 in.)
- O.D. (D): 24.000mm
+ 0.000 / - 0.010
(24.000mm is 0.945 in.)
- Width (B): 6.000mm
+ 0.000 / - 0.125
(6.000mm is 0.236 in.)
- Groove Width (b): 0.800mm
- Closure Type: ZZNR
- Bearing Type: Radial with Snp Ring
- Snap Ring Thickness: 0.700mm
- Max. Dist. To Groove Edge: 1.050mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- BOCA® MR6901-ZZNR
- MR6901ZZNR
- 6901BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
6901ZZNR, 6901
