6901-2RS

Name: 6901-2RS - Single Row Ball Bearings - 12x24x6 mm Unflanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: 69012RS
Price: 4.59 AUD
Availability: InStock

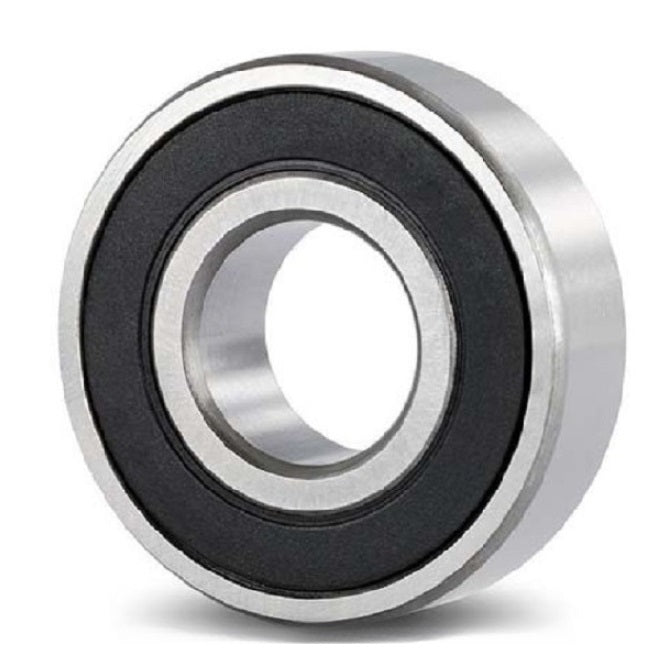

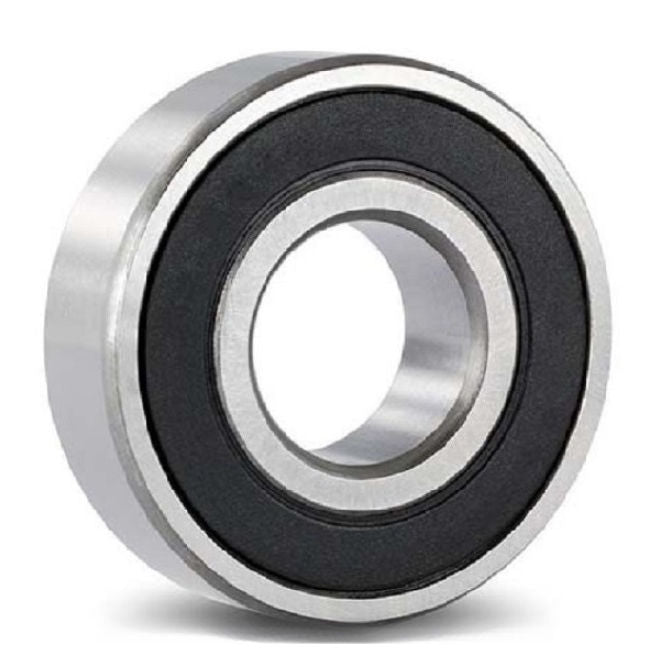

Single Row Ball Bearings - 12x24x6 mm Unflanged - Chrome Steel SAE 52100 Bearing

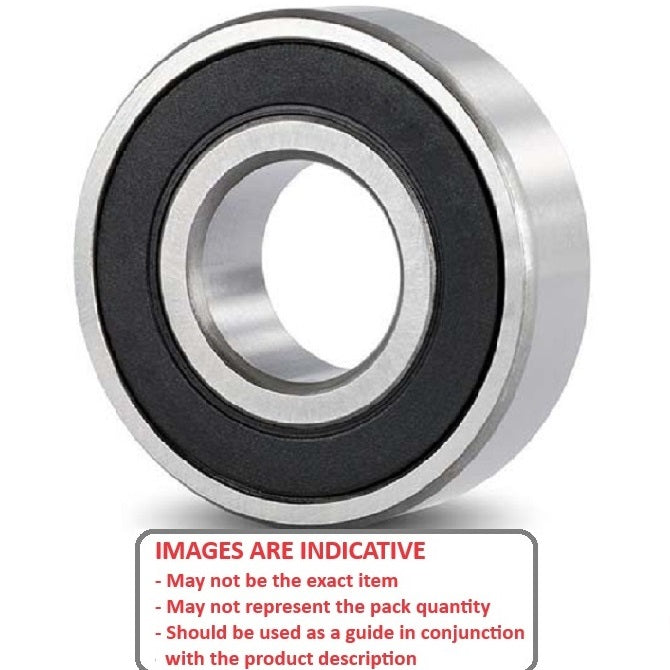

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.59 AUD

Excludes GST and overseas Taxes & Duties

Each
Qty: 106 available now
Order 50 or more for $4.13 AUD Each

Product Details

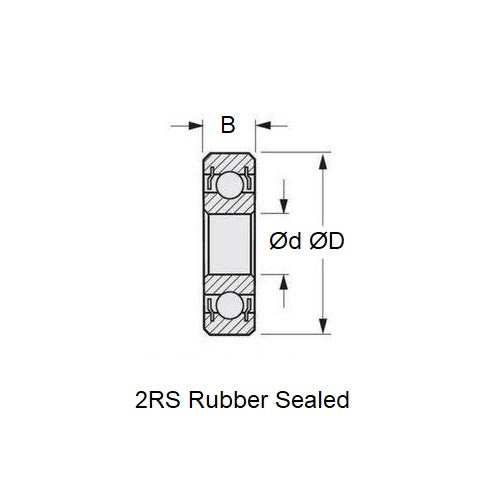

ID (d): 12.000mm
_{+ 0.000 / - 0.0075}
_{(12.000mm is 0.472 in.)}

Chrome Steel SAE 52100

ID (d): 12.000mm
_{+ 0.000 / - 0.0075}
_{(12.000mm is 0.472 in.)}
OD (D): 24.000mm
_{+ 0.000 / - 0.010}
_{(24.000mm is 0.945 in.)}
Width (B): 6.000mm
_{+ 0.000 / - 0.125}
_{(6.000mm is 0.236 in.)}
Precision Grade: Abec 1
Closure Type: 2RS
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
5972K287
WIB 61901-2RSR
WIB 61901-RSR
Sealed 6901 / 6
Nachi 6901-2NSECM
SMT 6901-2RS
NTN 6901LLU
SMT 6901-RS
BOCA MR6901-2RS
BOCA MR6901-RS
MR6901RS
MR69012RS
69012NSECM
6901DDU
6901VV
6901-VV
6901-DDU
61901RSR
619012RSR
6901BASIC

Used for

RC Car Parts
RC Nitro Engine Parts
Delta - P2 1/8 Gas - Bearing 12-24-6mm
Delta - P4 1/8 Gas - Bearing 12-24-6mm
HPI - Baja 5B - Bearing 12-24-6mm
Bluebird - 28 - Rear Bearing 12-24-6mm
Fitzpatrick - 61 With Side Exhaust and ABC Engine - Bearing 12-24-6mm
HB - 25 - 2 Stroke - Rear Bearing 12-24-6mm
Jett - Fan Jet - 30 - Bearing 12-24-6mm
Jett - Fire - 46 - Bearing 12-24-6mm
Jett - Fire - 50 - Bearing 12-24-6mm
Jett - Fire - 65 - Bearing 12-24-6mm
Jett - Fire - 76 - Bearing 12-24-6mm
Jett - Sport - 65 - Bearing 12-24-6mm
Jett - Sport - 76 - Bearing 12-24-6mm
OS - 20 4-C - Rear Bearing 12-24-6mm
OS - 25 F ABC RC W-Muffler - Rear Bearing 12-24-6mm
OS - 25 FR RC W-Muffler - Rear Bearing 12-24-6mm
OS - 25 FX - 2 Stroke - Rear Bearing 12-24-6mm
OS - 25 VF ABC RC - Rear Bearing 12-24-6mm
OS - 25 VF-DF ABC RC - Rear Bearing 12-24-6mm
OS - 28 F RC W-Muffler - Rear Bearing 12-24-6mm
OS - 28 F-H ABC RC - Rear Bearing 12-24-6mm
OS - 28 F-H RC W-Muffler - Rear Bearing 12-24-6mm
OS - 32 F ABC RC W-Muffler - Rear Bearing 12-24-6mm
OS - 32 F-C RC - Rear Bearing 12-24-6mm
OS - 32 F-HS RC W-Cone - Rear Bearing 12-24-6mm
OS - 32 FX - 2 Stroke - Rear Bearing 12-24-6mm
OS - 32 SX-H Heli - 2 Stroke - Rear Bearing 12-24-6mm
OS - 32 SX-HX Heli - 2 Stroke - Rear Bearing 12-24-6mm
OS - 61 SF-HS and RF-HS RC - Rear Bearing 12-24-6mm
OS - FS26S - 4 Stroke - Rear Bearing 12-24-6mm
OS - FS40 - 4 Stroke - Rear Bearing 12-24-6mm
OS - FS40-M - 4 Stroke - Rear Bearing 12-24-6mm
OS - FS40S - 4 Stroke - Rear Bearing 12-24-6mm
Picco - 15 - 2 Stroke - Rear Bearing 12-24-6mm
Picco - 40 - 2 Stroke - Rear Bearing 12-24-6mm
Picco - 40 Pylon - 2 Stroke - Rear Bearing 12-24-6mm
Picco - 45 - 2 Stroke - Rear Bearing 12-24-6mm
Picco - 45 Pylon - 2 Stroke - Rear Bearing 12-24-6mm
Super Tigre - G29 - Rear Bearing 12-24-6mm
Super Tigre - X21 - Rear Bearing 12-24-6mm
Thunder Tiger - 21 O-B - 2 Stroke - Rear Bearing 12-24-6mm
Thunder Tiger - 25 Pro - 2 Stroke - Rear Bearing 12-24-6mm
Thunder Tiger - 36 Pro - 2 Stroke - Rear Bearing 12-24-6mm
Thunder Tiger - 36H - 2 Stroke - Rear Bearing 12-24-6mm
Thunder Tiger - 39H - 2 Stroke - Rear Bearing 12-24-6mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
