R8-C3-T9H (Each)

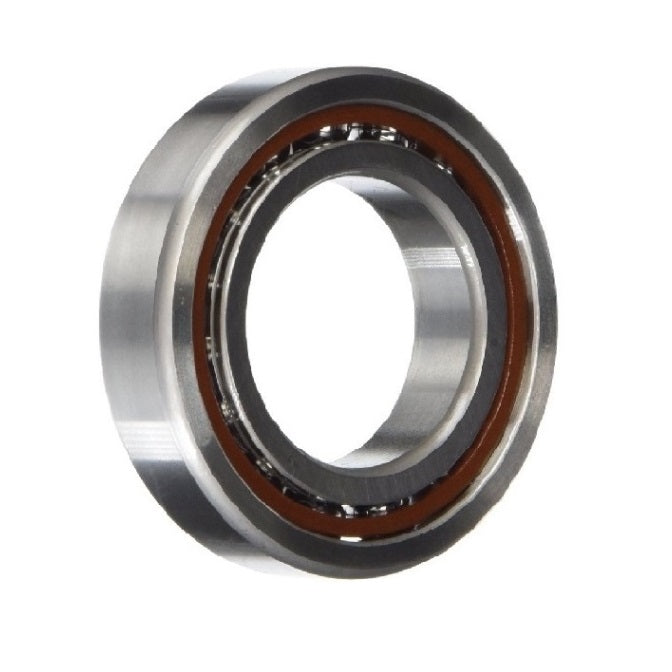

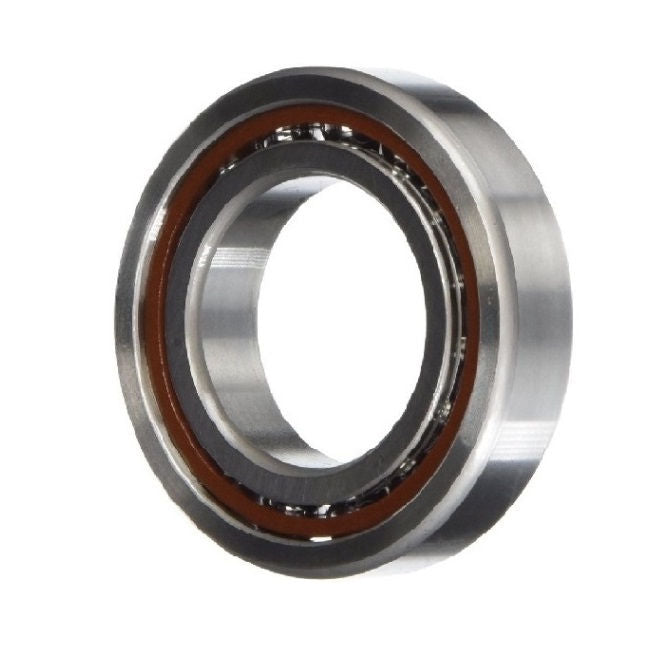

Single Row Ball Bearings - 12.7x28.575x6.35 mm Unflanged - Chrome Steel SAE 52100 - High Speed Polyamide Cage Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 12.7x28.575x6.35 mm - Chrome Steel SAE 52100 - High Speed Polyamide Cage
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$16.00 AUD
$19.20 AUD $16.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 124 available now

Order 50 or more
for $14.40 AUD Each
Only 124 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Product Details


Deleted Item. Available while stocks last.

ID (d): 12.700mm
+ 0.000 / - 0.0075
(12.700mm is 0.5 in.)

Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • ID (d): 12.700mm
    + 0.000 / - 0.0075
    (12.700mm is 0.5 in.)
  • O.D. (D): 28.575mm
    + 0.000 / - 0.010
    (28.575mm is 1.125 in.)
  • Width (B): 6.350mm
    + 0.000 / - 0.125
    (6.350mm is 0.25 in.)
  • Precision Grade: Abec 1
  • Closure Type: Open
  • Bearing Type: Radial

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • SKF EE4-TN9
  • WIB R8SD-T9H-C3
  • R8SDT9HC3
  • R8T9HC3
  • EE4TN9
  • R8BASIC

Used for

  • RC Nitro Engine Parts
  • Enya® - 35 III - Replacement Rear Bearing
  • Enya® - 4C - 46 - Replacement Bearing
  • Enya® - 4C - 60 - Replacement Bearing
  • Enya® - 60 - 4 Stroke - Replacement Rear Bearing
  • Enya® - 80 - 4 Stroke - Replacement Rear Bearing
  • Enya® - BB 6001 - 25 - Replacement Bearing
  • Enya® - BB 6001 - 29 - Replacement Bearing
  • Enya® - BB 6001 - 35 - Replacement Bearing
  • Enya® - III - 120 - Replacement Bearing
  • Fox® - 36 - Replacement Rear Bearing
  • Fox® - 36X Old Combat - Replacement Rear Bearing
  • Fox® - 40 - Replacement Rear Bearing
  • Fox® - 40 All Models - Replacement Bearing
  • Fox® - 40 Four Spline Prop Drive Washer - 78 - Replacement Bearing
  • Fox® - 40 With Tapered Collect - 0.17 - Replacement Bearing
  • K.B - 3.5 21CC All Models - Replacement Bearing
  • K.B - 40 -40-11 New - Replacement Rear Bearing
  • K.B - 40-11 - Replacement Rear Bearing
  • K.B - New - 1 - Replacement Bearing
  • K.B - Old - 3.5 - Replacement Bearing
  • K.B - Old - 7.5 - Replacement Bearing
  • McCoy - 60 Old - Front Bearing
  • McCoy - Old - 32CC - Replacement Bearing
  • McCoy - Old - 52 - Replacement Bearing
  • Merco® - 16 All Models - Replacement Bearing
  • Merco® - 2.49 All Models - Replacement Bearing
  • Merco® - 49 -50 -61 - Replacement Rear Bearing
  • Merco® - 49 All Models - Replacement Bearing
  • OPS - 40 All Models - Replacement Bearing
  • OPS - 45 All Models - Replacement Bearing
  • OPS - 60 -65 -67 -80 - Replacement Rear Bearing
  • OPS - 65 All Models - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
