REM-127-R-CB (PK-10)

Male Rod Ends - 12.7x78.59 mm - 1/2-20 UNF Right - Bronze Lined Steel Rod End

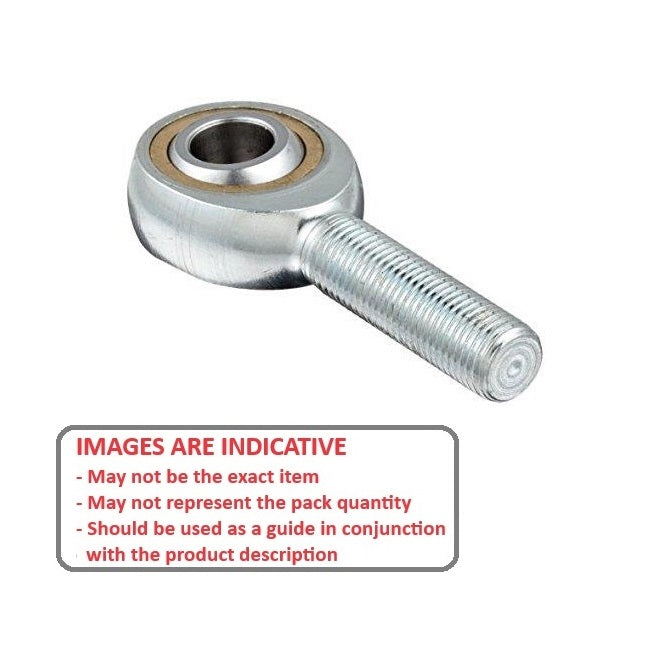

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Male Rod Ends - 12.7x78.59 mm - 1/2-20 UNF Right - Bronze Lined Steel
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Rod Ends - Male

Top Level Category: Rod Ends - Male - Steel - Bronze Lined - Standard

Product Details

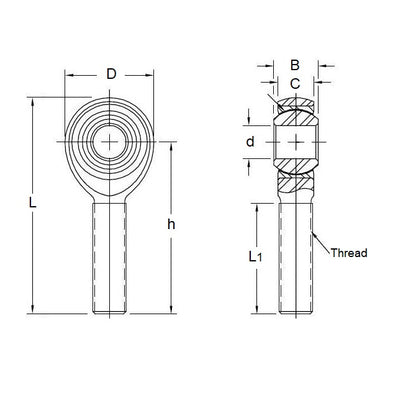

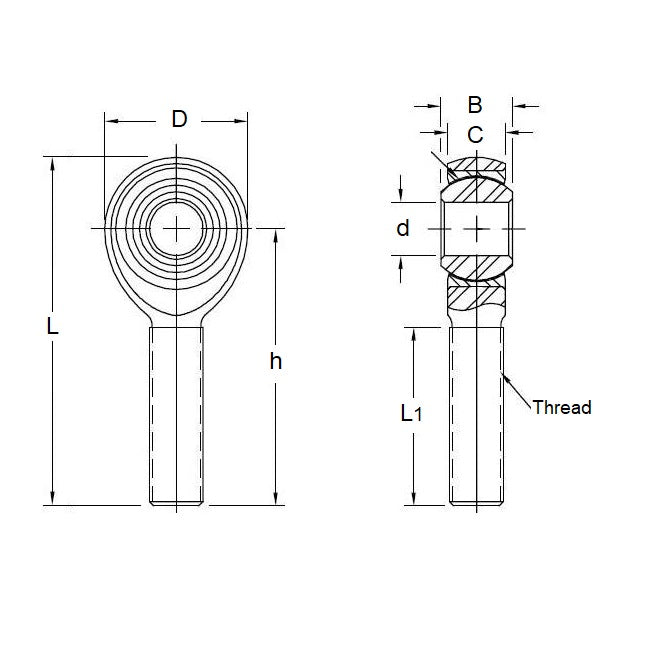

Eye Size (d1): 12.70mm
(12.70mm is 0.5 in.)

Bronze Lined Steel
  • Eye Size (d1): 12.70mm
    (12.70mm is 0.5 in.)
  • Overall Length (L): 78.59mm
    (78.59mm is 3.094 in.)
  • Thread Size: 1/2-20 UNF Right
  • Min. Thread Length (l2): 38.10mm
  • Head Width (W): 12.70mm
  • Eye Width (W1): 15.88mm
  • Head Diameter (D): 33.32mm
  • Centre Height (l1): 61.93mm
  • Grease Nipple: Yes

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 6072K124-RIGHT
  • MTR BIM-81-2
  • ASAHI® JAMB8
  • KWK KMB8
  • IKO POSB8
  • NTN® SMI-B8
  • 6072K124RIGHT
  • SMIB8
  • BIM812

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
