T-0115-0218-BND (Each)

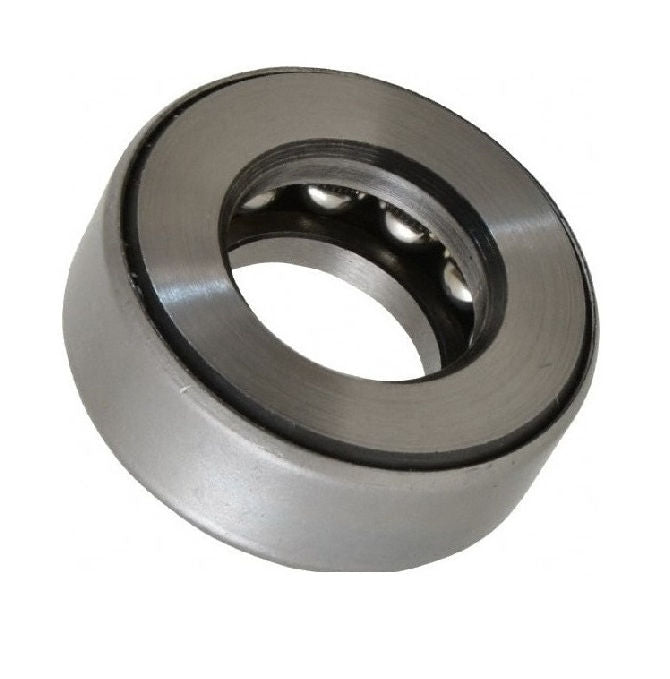

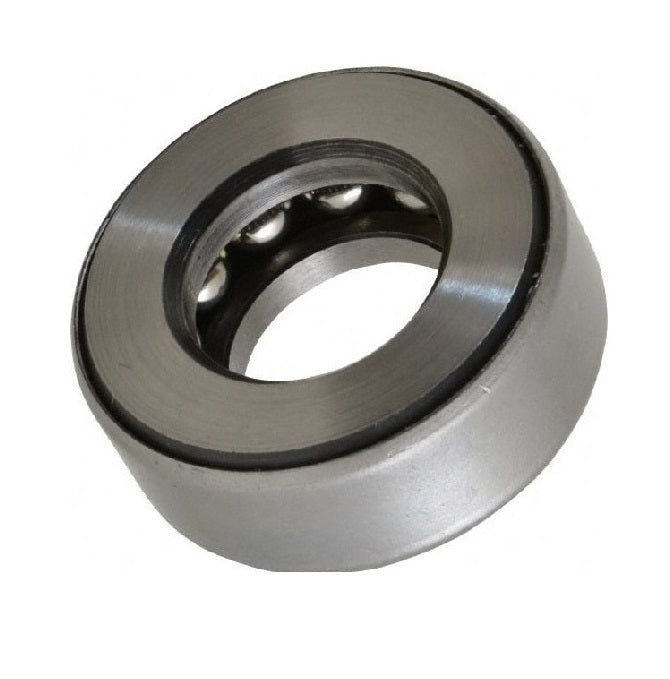

Thrust Ball Bearings - 11.506x21.819x7.138 mm / 12.141 mm Banded - Carbon Steel Bearing

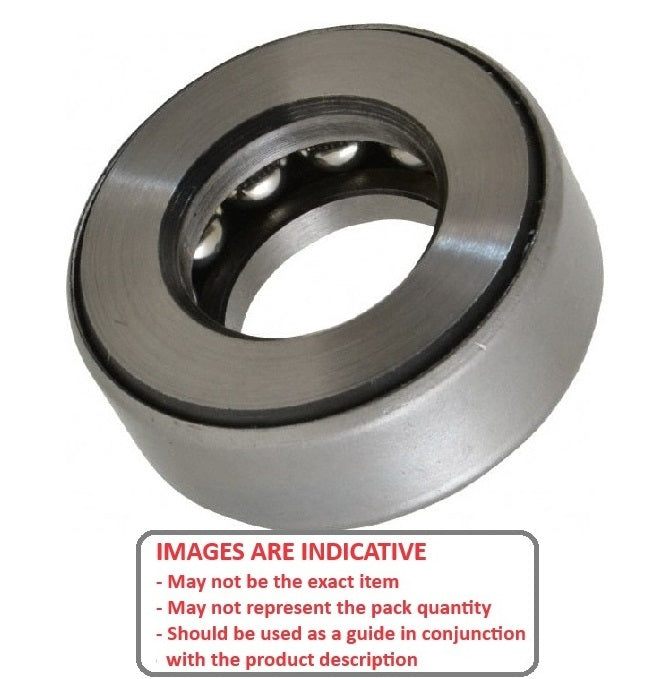

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thrust Ball Bearings - 11.506x21.819x7.138 mm / 12.141 mm Banded - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Thrust Bearings PDF Catalogue
Shafting
Price:
$22.14 AUD
$40.47 AUD $22.14 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now

Order 50 or more
for $19.93 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 09, 2026

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Banded

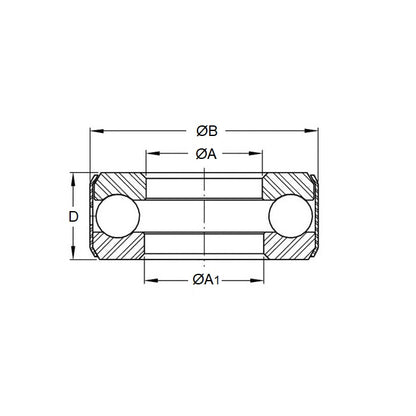

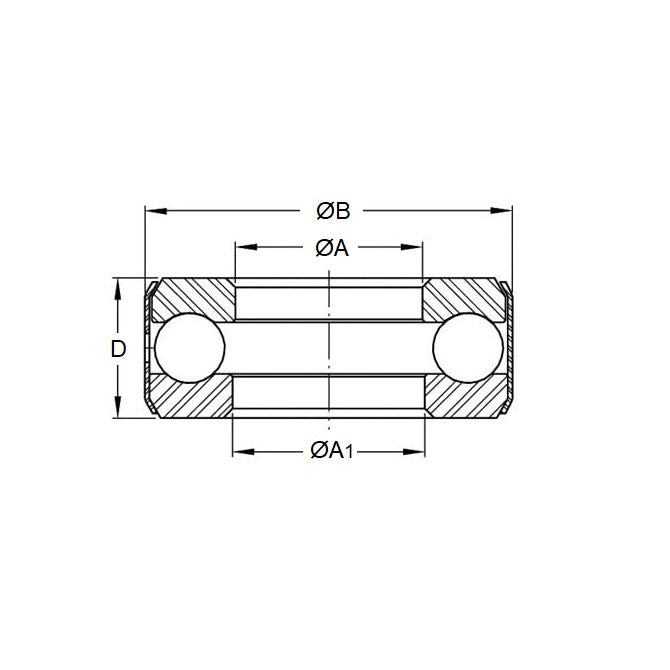

Product Details

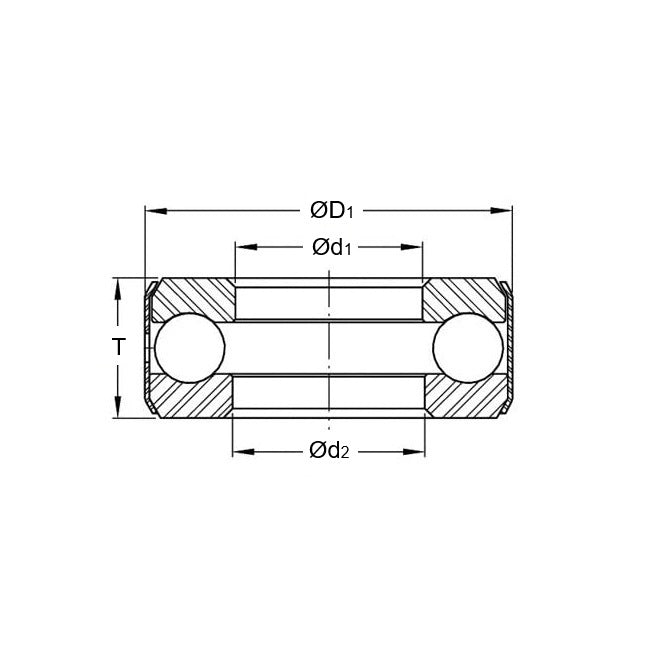

Shaft Diameter (d1): 11.506mm
(11.506mm is 0.453 in.)

Carbon Steel
  • Shaft Diameter (d1): 11.506mm
    (11.506mm is 0.453 in.)
  • O.D. (D1): 21.819mm
    (21.819mm is 0.859 in.)
  • Thickness (T): 7.138mm
    (7.138mm is 0.281 in.)
  • Bore (d2): 12.141mm
  • Dynamic Load Capacity: 136kgf
  • Static Load Capacity: 201kgf
  • Max. Speed: 1000RPM
  • Information: Unground Banded Thrust Bearing

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NICE® 602-3-4-V
  • Reid Tool® SKF-9045
  • SKF9045
  • 60234V

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
