CCI-01111-CZY (5 Pcs)

Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated

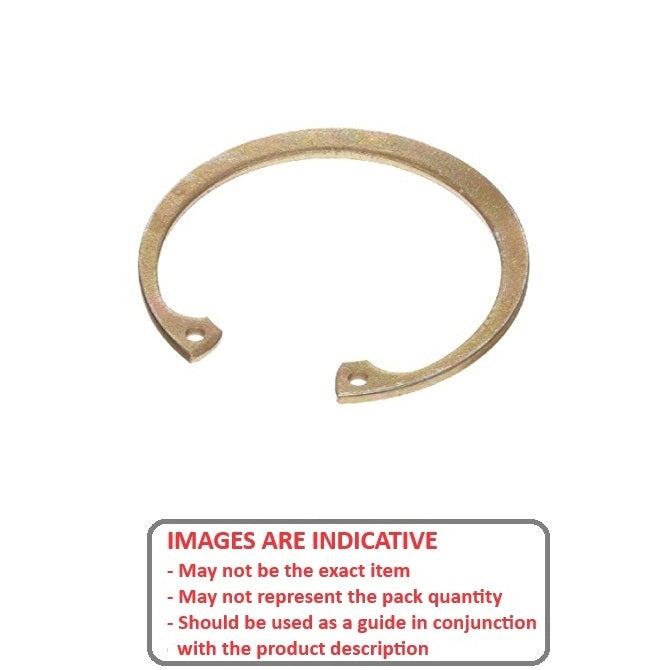

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$0.95 AUD
$2.62 AUD $0.95 AUD
per 5
Qty: 40 packs (200 pcs) available now
Order 50 or more packs (250 pcs) for $0.86 AUD per 5

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 12, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Product Details:

Additional stock available from USA subject to Prior Sale = 7500

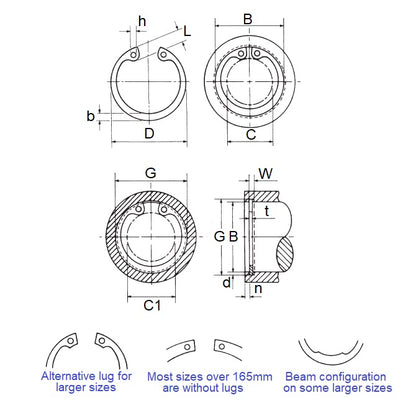

Housing Bore (B): 11.11mm
(11.11mm is 0.437 in.)

Carbon Steel Zinc Plated
  • Clip Thickness (T): 0.64mm
    +/- 0.050
    (0.64mm is 0.025 in.)
  • Groove Dia. (Dg): 11.71mm
    + 0.00 / - 0.06
    (11.71mm is 0.461 in.)
  • Approx. Loose Circlip OD (Dr): 12.24mm
    + 0.25 / - 0.13
  • Groove Width (W): 0.74mm
    + 0.08 / - 0.00
  • Clearance in Bore (C): 5.84mm
  • Clearance in Groove (C1): 6.35mm
  • Min. Lug Diameter (h): 0.99mm
  • Min. Extension (n): 0.91
  • Standard: MIL-16625

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98409A141, HO043ZD, HO-043-ZD, N1300-0043AZD, N13000043AZD, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
