DB100-125-200 (PK-3)

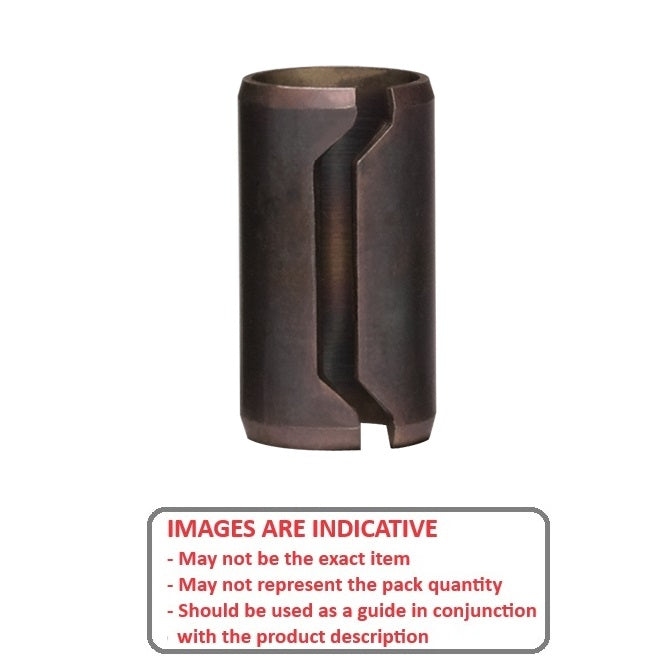

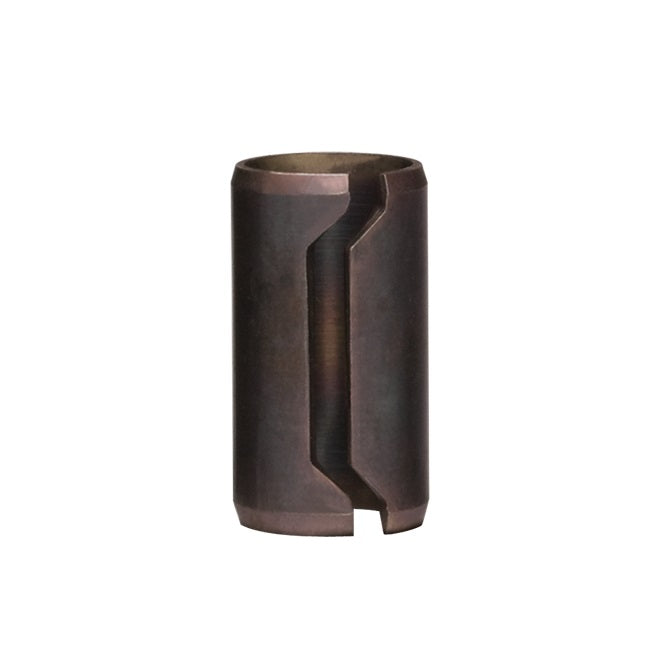

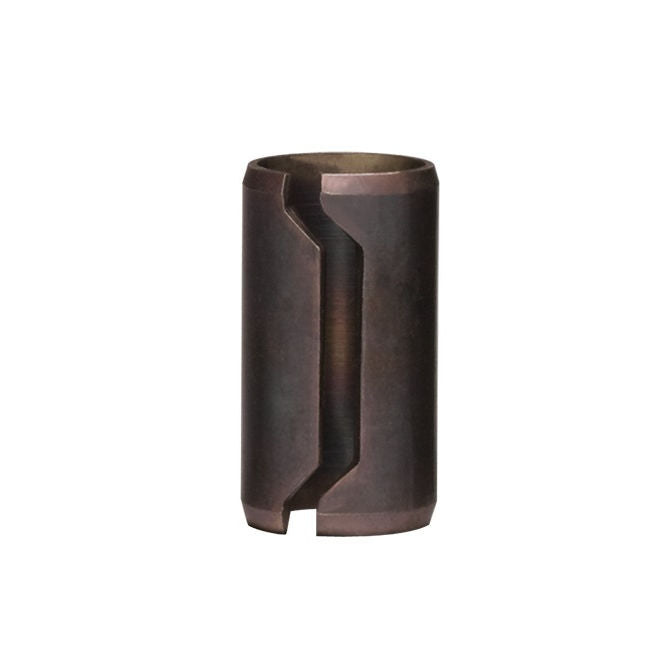

Dowel Bushings Pins - 10x20x12.5 mm - Carbon Steel Pin

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Bushings Pins - 10x20x12.5 mm - Carbon Steel Pin
1 3

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$3.80 AUD
$7.22 AUD $3.80 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
 Qty: 1 pack (3 pcs) available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Dowel Bushings

Top Level Category: Pins - Dowel Bushings

Product Details


Deleted Item. Available while stocks last.

Suitable Bolt Size: 10.00mm
(10.00mm is 0.394 in.)

Carbon Steel
  • Suitable Bolt Size: 10.00mm
    (10.00mm is 0.394 in.)
  • Length : 20.00mm
    + 0.0 / - 1.0
    (20.00mm is 0.787 in.)
  • Rec. Hole Diameter Min: 12.50mm
    (12.50mm is 0.492 in.)

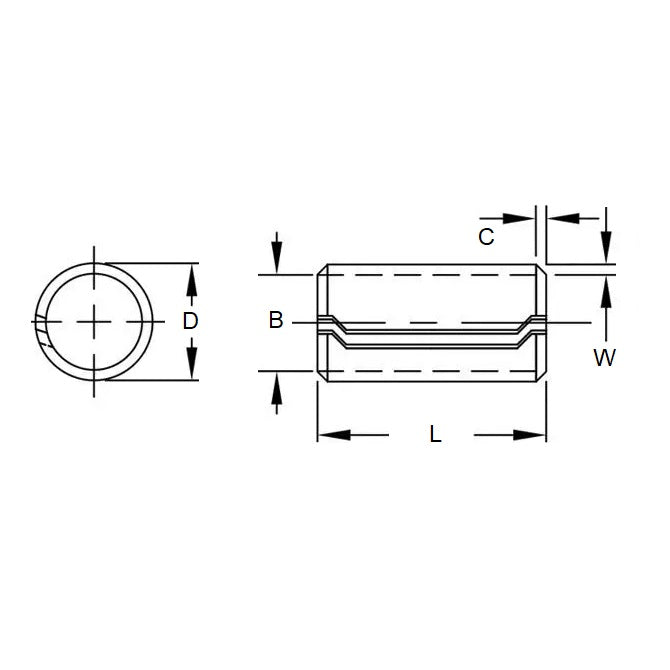

  • Unassembled Diameter (D) Min: 12.75mm
  • Unassembled Diameter (D) Max: 13.01mm
  • Wall Thickness: 1.07mm
  • Rec. Hole Diameter Max: 12.63mm
  • Minimum Single Shear: 28.50kN

Brand: NoCor
Country of Origin: DE

Product Compliance and Data

Similar to

  • DB1019
  • DB10-19

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
