6800-2RS

Single Row Ball Bearings - 10x19x5 mm Unflanged - Chrome Steel SAE 52100 Bearing

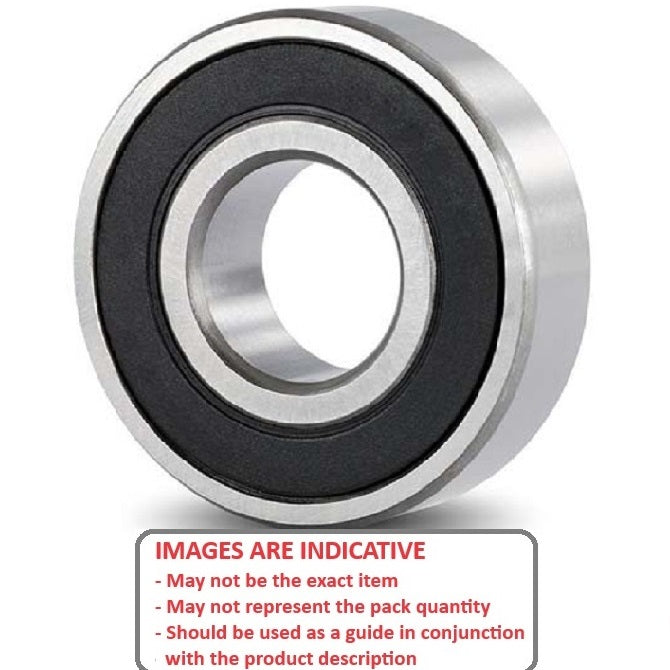

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 10x19x5 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.05 AUD
$4.05 AUD
Each
Qty: 83 available now
Order 50 or more for $3.65 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 26, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details

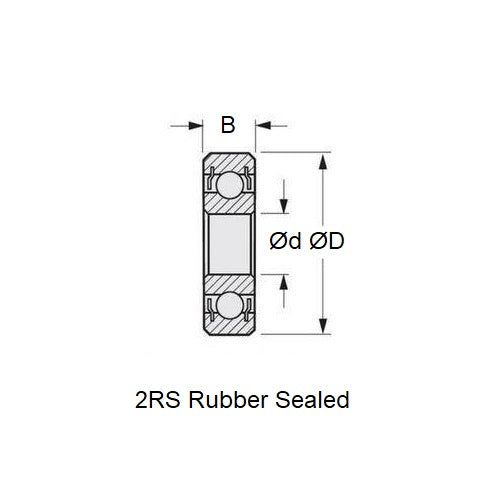

ID (d): 10.000mm
+ 0.000 / - 0.0075
(10.000mm is 0.394 in.)

Chrome Steel SAE 52100
  • OD (D): 19.000mm
    + 0.000 / - 0.010
    (19.000mm is 0.748 in.)
  • Width (B): 5.000mm
    + 0.000 / - 0.125
    (5.000mm is 0.197 in.)
  • Precision Grade: Abec 1
  • Closure Type: 2RS
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • FESTO 237570
  • ALTPART
  • 5972K275
  • WIB 61800-2RSR
  • WIB 61800-RSR
  • Sealed 6800 / 5
  • NTN 6800LLU
  • 618002RSR
  • 61800RSR
  • 68002RS
  • 6800-2RS
  • 6800DDU
  • 6800RS
  • 6800-RS
  • 6800BASIC

Used for

  • RC Car Parts
  • RC Helicopter Parts
  • RC Nitro Engine Parts
  • Associated - MGT4.60SE - Bearing 10-19-5mm
  • Associated - Monster GT Truck and RTR Nitro Off Road - Bearing 10-19-5mm
  • CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing 10-19-5mm
  • Mugen - K2 Advanced - Bearing 10-19-5mm
  • Mugen - SE7 K1 - Bearing 10-19-5mm
  • Multiplex - Tecnago 1/5 Scale - Bearing 10-19-5mm
  • Ricambi - SVM Columbia MK 5 1/5 Scale GA - Bearing 10-19-5mm
  • Serpent - 705 - Bearing 10-19-5mm
  • Serpent - 835 1-10 2WD - Bearing 10-19-5mm
  • Serpent - 835 1-10 4WD - Bearing 10-19-5mm
  • Serpent - Impact 10 M2 Challenger - Bearing 10-19-5mm
  • Serpent - Impact 10 Pro 2 - Bearing 10-19-5mm
  • Serpent - Impact M2 Spec 2000 4WD - Bearing 10-19-5mm
  • Serpent - Impact-2 2WD Pro - Bearing 10-19-5 2 Per Axle
  • Serpent - Impact-2 2WD Sport - Bearing 10-19-5 2 Per Axle
  • Serpent - Impact-2 4WD Sport - Bearing 10-19-5 2 Per Axle
  • Serpent - Impulse 1/10 Scale Single SPE - Bearing 10-19-5mm
  • Serpent - Impulse Pro 1/10 4WD - Bearing 10-19-5mm
  • Serpent - Impulse Street 2 Speed 4WD - Bearing 10-19-5mm
  • Serpent - Impulse Street Spec 4WD - Bearing 10-19-5mm
  • Thunder Tiger - EB4-S3 - Bearing 10-19-5mm
  • Thunder Tiger - ST1 - Bearing 10-19-5mm
  • Thunder Tiger - TTRS3 - Bearing 10-19-5mm
  • Traxxas - Sledgehammer - Bearing 10-19-5mm
  • Traxxas - S-Maxx Stadium Max RTR - Bearing 10-19-5mm
  • Traxxas - Sport Maxx - Bearing 10-19-5mm
  • Traxxas - T- Maxx 3.3 - Bearing 10-19-5mm
  • Traxxas - T-Maxx 2.5 With Additional Trans - Bearing 10-19-5mm
  • Traxxas - T-Maxx 4WD RTR With Additional T - Bearing 10-19-5mm
  • Traxxas - T-Maxx With Additional Trans. BR - Bearing 10-19-5mm
  • Miniature Aircraft - Fury Extreme - Bearing 10-19-5mm
  • OPS - 15 - Front Bearing 10-19-5mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
