DT-64RS (Each)

Ball Slide Assembly Linear - 101.6 mm - 53.524 Kg - 152.4 mm Precision

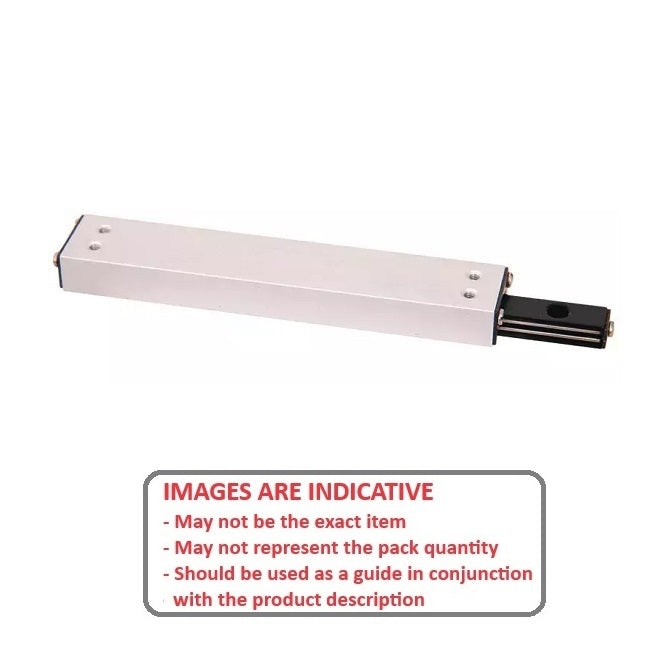

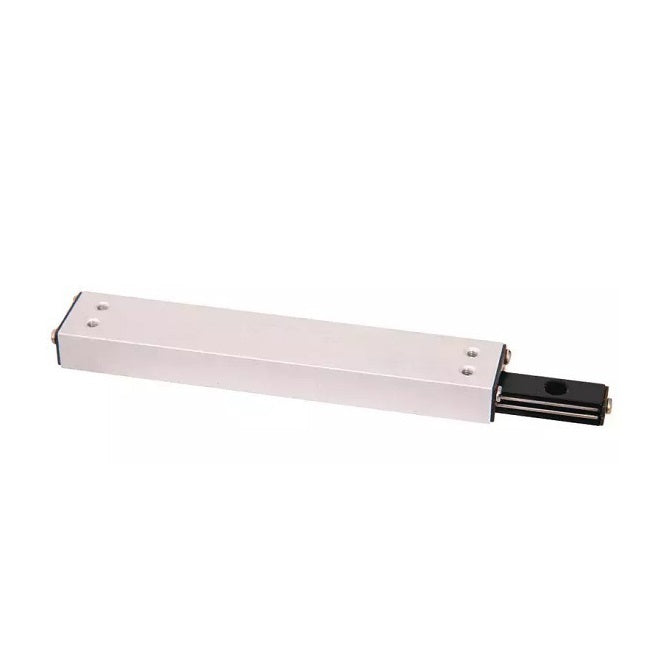

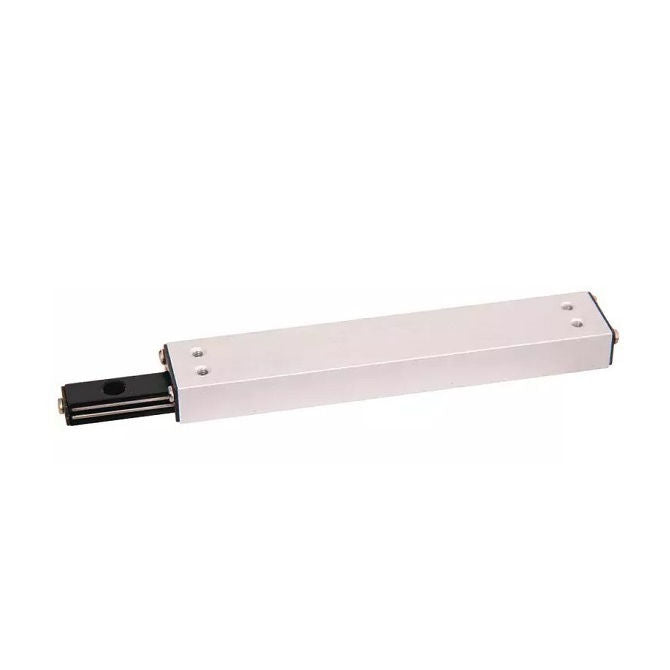

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ball Slide Assembly Linear - 101.6 mm - 53.524 Kg - 152.4 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$610.32 AUD
$732.38 AUD $610.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $549.29 AUD Each
Backorder now! Backorders are expected before Aug 01, 2026

4x6 inch Linear - 101.6 mm - 53.524 Kg - 152.4 mm Ball Slide Assembly Linear - - Sold per Each:

Base Category: Linear - Ball Slide Assembly

Top Level Category: Linear - Ball Slide Assembly - Precision

Product Details

Travel: 101.600mm
(101.600mm is 4 in.)
  • Travel: 101.600mm
    (101.600mm is 4 in.)
  • Load Capacity: 53.524Kg

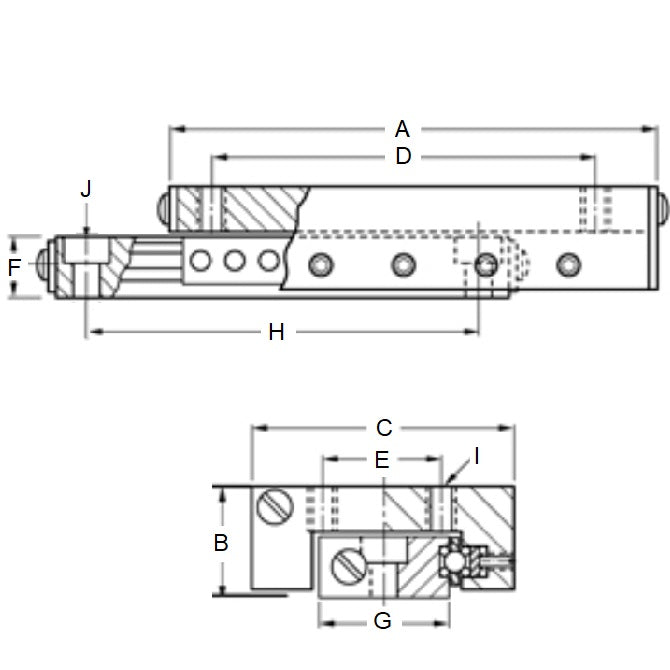

  • Carriage Length (A): 152.400mm
    (152.400mm is 6 in.)
  • Overall Height (B): 25.400mm
  • Carriage Width (C): 25.400mm
  • Carriage Bolt Centre (D): 127.000mm
  • Carriage Bolt Centre (E): 31.750mm
  • Rail Height (F): 15.875mm
  • Rail Width (G): 38.100mm
  • Rail Bolt Centres Length (H): 136.525mm
  • Carriage Bolt Size: 10-32 UNF
  • Base Bolt Size: 10-32 UNF

Brand: MBA
Country of Origin: US

Product Compliance and Data
