Linear - Ball Slide Assembly - Precision

Linear -> Ball Slide Assembly -> Precision

There are 49 products in the sub-categories of Linear - Ball Slide Assembly - Precision. Scroll down or follow the link to Linear - Ball Slide Assembly - Precision in the products table to see all these items combined into a handy table with filters.

Category Details

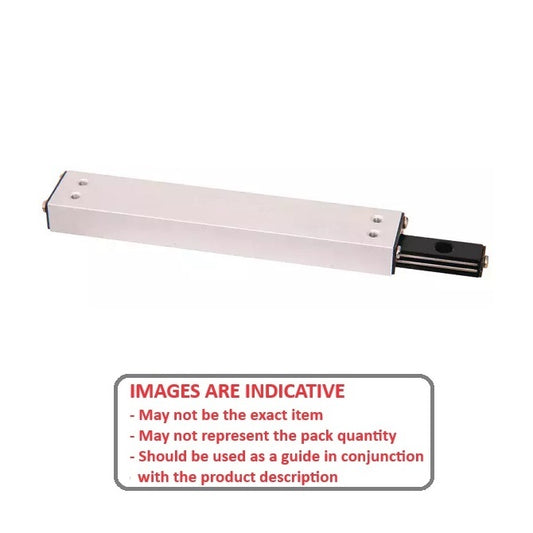

A selection of Precision Ball Slide Assembly Linear. These precision ball slides have a typical coefficient of friction of 0.003 and provide straight line accuracy of 0.0005mm per mm of travel.

  • At load capacity a life of 250 million mm of travel can be expected. The expected life at half load capacity is 2.5 billion mm.
  • Factory preload adjustment prevents sideplay and backlash. Lightweight aluminium carriage and base with high load capacity.
  • Four tapped and threaded carriage holes and counterbored base holes simplify installation and component mounting.
  • Long life, self cleaning ball bearing needs no lubrication.
  • Positional repeatability 0.005mm. Clear anodised finish.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Ball Slide Assembly - Precision category on the Small Parts & Bearings online store.
