FC204

Flanged Round Cast Iron Housings - 100x28.3x5 mm - Cast Iron Housing

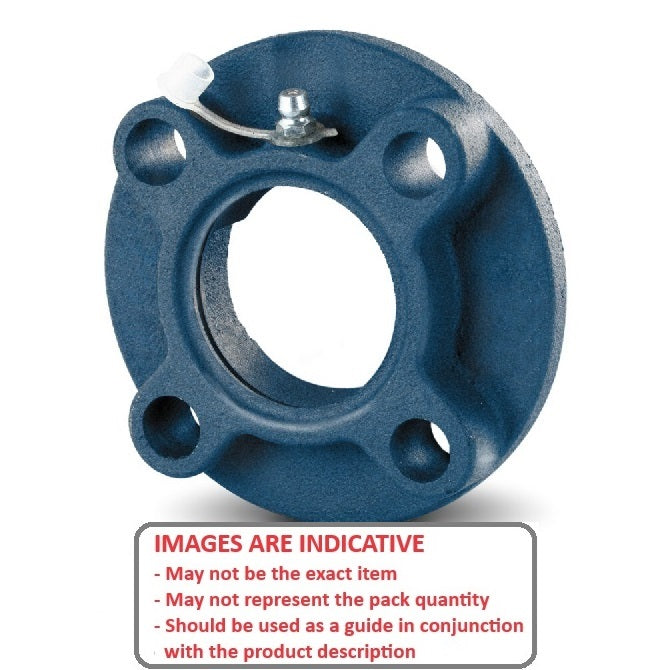

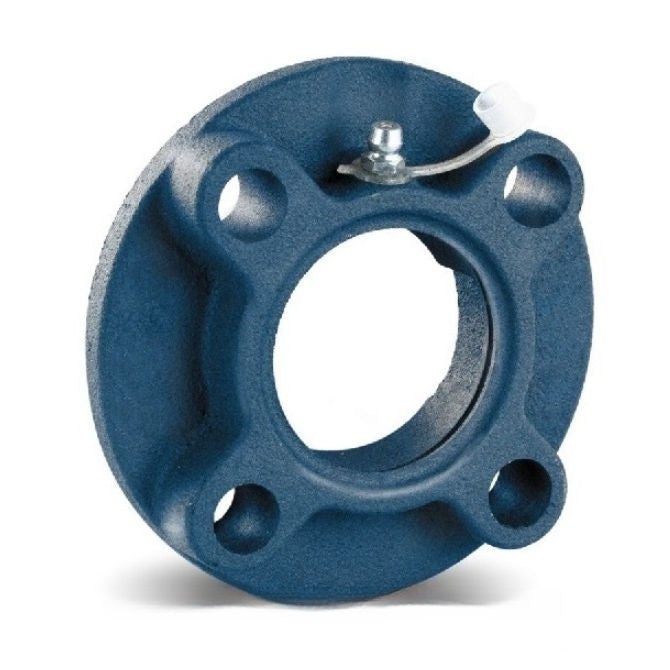

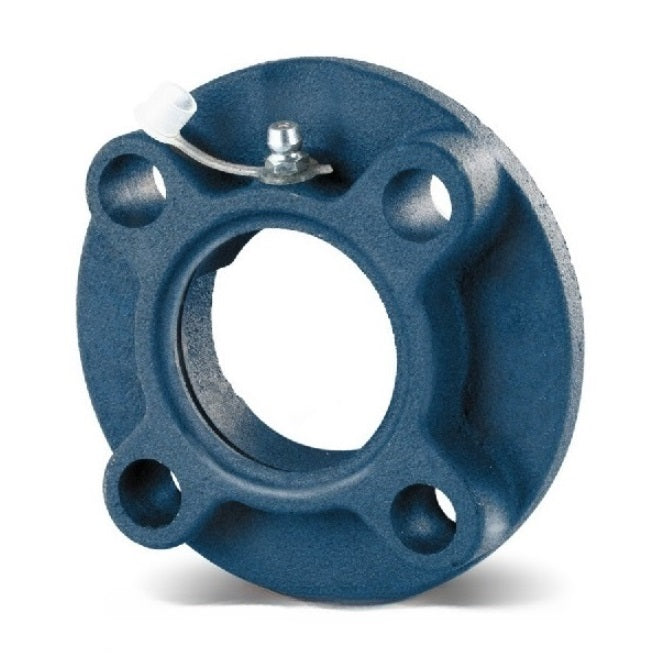

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged Round Cast Iron Housings - 100x28.3x5 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$22.41 AUD
$26.89 AUD $22.41 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $20.17 AUD
Backorder now! Backorders for more than the stock quantity are expected before Oct 29, 2025

Base Category: Housings - Flanged Round Cast Iron

Top Level Category: Housings - Flanged Round Cast Iron

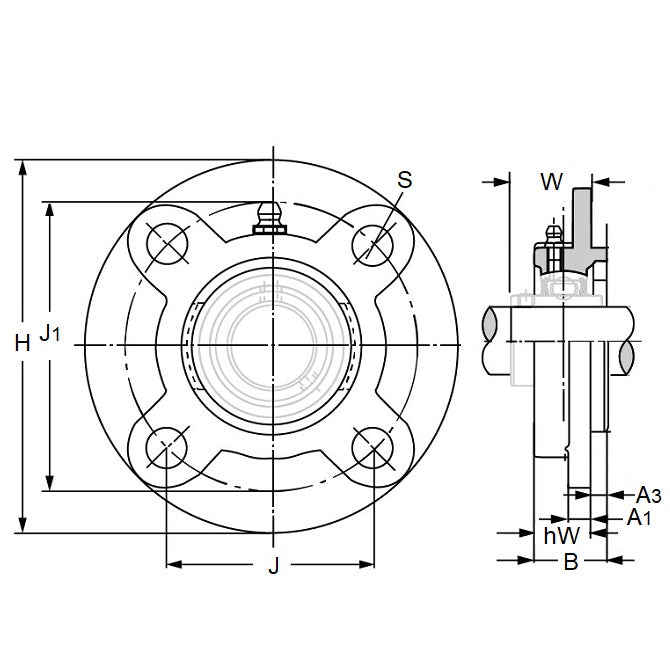

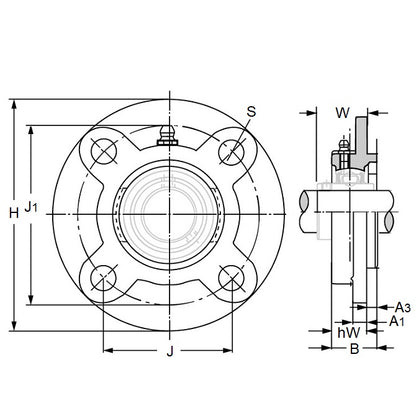

Product Details

Height (H): 100mm
(100mm is 3.937 in.)

Cast Iron
  • Height (H): 100mm
    (100mm is 3.937 in.)
  • Ass. Width to Base (W): 28.300mm
    (28.300mm is 1.114 in.)
  • Width of Spigot (a3): 5.000mm
    (5.000mm is 0.197 in.)
  • Bolt Circle Diameter (J1): 78.000mm
  • Base Width (A1): 7.000mm
  • Bearing Width (B): 31.000mm
  • To Suit Bearing: UC201 - UC202 - UC203 - UC204
  • Bolt Hole Size (s): 12.000mm
  • Bolt Hole Centres (J): 55.100mm
  • Hsg. Width (excl. Spigot hW): 20.50mm

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Nachi FC204J

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
