Housings - Flanged Round Cast Iron

Housings -> Flanged Round Cast Iron

There are 3 products in the sub-categories of Housings - Flanged Round Cast Iron. Browse the Housings - Flanged Round Cast Iron products table.

Category Details

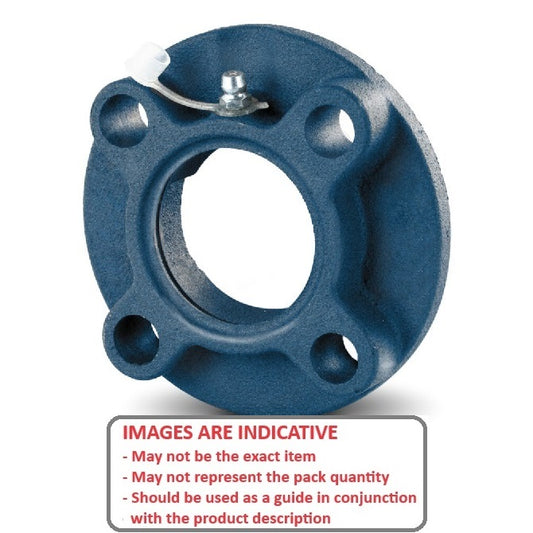

A selection of Flanged Round Cast Iron Housings. Lubrication Groove.

  • An expanded range may be available on special order. Please enquire.
  • Bearings sold separately.
  • Larger sizes available on request.
  • Use with steel bearing inserts for cast iron housings.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housings - Flanged Round Cast Iron category on the Small Parts & Bearings online store.
Height (H) Ass. Width to Base (W) Width of Spigot (a3) Bolt Circle Diameter (J1) Base Width (A1) Bearing Width (B) Indicative
Height (H)
100
mm

(Equiv. 3.937 in.)
Ass. Width to Base (W)
28.300
mm

(Equiv. 1.114 in.)
Width of Spigot (a3)
5.000
mm

(Equiv. 0.197 in.)
Bolt Circle Diameter (J1)
78.000
mm
Base Width (A1)
7.000
mm
Bearing Width (B)
31.000
mm
Flanged Round Cast Iron Housings - 100x28.3x5 mm
Material: Cast Iron    To Suit Bearing: UC201 - UC202 - UC203 - UC204    Bolt Hole Size (s): 12.000 mm    Bolt Hole Centres (J): 55.100 mm    Hsg. Width (excl. Spigot hW): 20.50 mm
Part Number: FC204
Flanged Round Cast Iron Housings - 100x28.3x5 mm - Cast Iron Housing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$22.41 AUD
$26.89 AUD $22.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Height (H) Ass. Width to Base (W) Width of Spigot (a3) Bolt Circle Diameter (J1) Indicative
Height (H)
100
mm

(Equiv. 3.937 in.)
Ass. Width to Base (W)
28.300
mm

(Equiv. 1.114 in.)
Width of Spigot (a3)
5.000
mm

(Equiv. 0.197 in.)
Bolt Circle Diameter (J1)
78.000
mm
Flanged Round Cast Iron Housings - 100x28.3x5 mm
Material: Cast Iron    Base Width (A1): 7.000 mm    Bearing Width (B): 31.000 mm    To Suit Bearing: UC201 - UC202 - UC203 - UC204    Bolt Hole Size (s): 12.000 mm    Bolt Hole Centres (J): 55.100 mm    Hsg. Width (excl. Spigot hW): 20.50 mm
Part Number: FC204
Flanged Round Cast Iron Housings - 100x28.3x5 mm - Cast Iron Housing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$22.41 AUD
$26.89 AUD $22.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Height (H)
115.000
mm

(Equiv. 4.528 in.)
Ass. Width to Base (W)
29.700
mm

(Equiv. 1.169 in.)
Width of Spigot (a3)
6.000
mm

(Equiv. 0.236 in.)
Bolt Circle Diameter (J1)
90.000
mm
Base Width (A1)
7.000
mm
Bearing Width (B)
34.000
mm
Flanged Round Cast Iron Housings - 115x29.7x6 mm
Material: Cast Iron    To Suit Bearing: UC205    Bolt Hole Size (s): 12.000 mm    Bolt Hole Centres (J): 63.600 mm    Hsg. Width (excl. Spigot hW): 21.000 mm
Part Number: FC205
Flanged Round Cast Iron Housings - 115x29.7x6 mm - Cast Iron Housing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$26.41 AUD
$31.69 AUD $26.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Height (H)
115.000
mm

(Equiv. 4.528 in.)
Ass. Width to Base (W)
29.700
mm

(Equiv. 1.169 in.)
Width of Spigot (a3)
6.000
mm

(Equiv. 0.236 in.)
Bolt Circle Diameter (J1)
90.000
mm
Flanged Round Cast Iron Housings - 115x29.7x6 mm
Material: Cast Iron    Base Width (A1): 7.000 mm    Bearing Width (B): 34.000 mm    To Suit Bearing: UC205    Bolt Hole Size (s): 12.000 mm    Bolt Hole Centres (J): 63.600 mm    Hsg. Width (excl. Spigot hW): 21.000 mm
Part Number: FC205
Flanged Round Cast Iron Housings - 115x29.7x6 mm - Cast Iron Housing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$26.41 AUD
$31.69 AUD $26.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Height (H)
125.000
mm

(Equiv. 4.921 in.)
Ass. Width to Base (W)
32.200
mm

(Equiv. 1.268 in.)
Width of Spigot (a3)
8.000
mm

(Equiv. 0.315 in.)
Bolt Circle Diameter (J1)
100.000
mm
Base Width (A1)
8.000
mm
Bearing Width (B)
38.100
mm
Flanged Round Cast Iron Housings - 125x32.2x8 mm
Material: Cast Iron    To Suit Bearing: UC206    Bolt Hole Size (s): 12.000 mm    Bolt Hole Centres (J): 70.700 mm    Hsg. Width (excl. Spigot hW): 23.000 mm
Part Number: FC206
Flanged Round Cast Iron Housings - 125x32.2x8 mm - Cast Iron Housing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$34.77 AUD
$41.73 AUD $34.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Height (H)
125.000
mm

(Equiv. 4.921 in.)
Ass. Width to Base (W)
32.200
mm

(Equiv. 1.268 in.)
Width of Spigot (a3)
8.000
mm

(Equiv. 0.315 in.)
Bolt Circle Diameter (J1)
100.000
mm
Flanged Round Cast Iron Housings - 125x32.2x8 mm
Material: Cast Iron    Base Width (A1): 8.000 mm    Bearing Width (B): 38.100 mm    To Suit Bearing: UC206    Bolt Hole Size (s): 12.000 mm    Bolt Hole Centres (J): 70.700 mm    Hsg. Width (excl. Spigot hW): 23.000 mm
Part Number: FC206
Flanged Round Cast Iron Housings - 125x32.2x8 mm - Cast Iron Housing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$34.77 AUD
$41.73 AUD $34.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
