CCE-01032-S15 (2 Pcs)

External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo

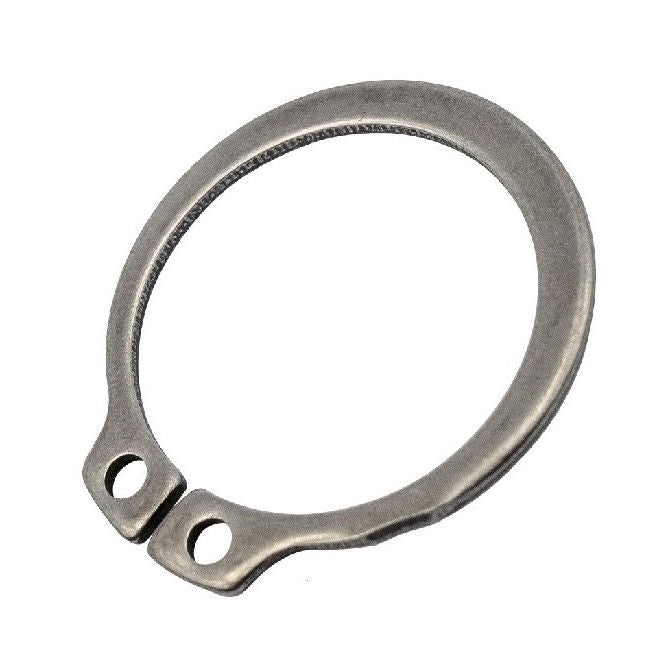

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Price:
$5.05 AUD
$5.05 AUD
per 2
Qty: 75 available now (150 pcs)
Order 50 or more (100 pcs) for $4.55 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 17, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 752


Shaft Diameter (Ds): 10.32mm
Stainless Steel Grade PH15-7 Mo
  • Clip Thickness (T): 0.64mm
    +/- 0.051
  • Groove Dia. (Dg): 9.70mm
    +/- 0.051
  • Approx. Loose Circlip ID (A): 9.30mm
  • Radial Wall (S) min/max: B (Square Ends)mm
  • Groove Width (W): 0.74mm
  • Min. Extension (n): 0.99
  • Standard: MIL-16624

Brand: MBA
Country of Origin: US

Alternative Parts Include: N14000040KSF, N1400-0040KSF, 91590A118, SH-040-SS, SH040SS, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
