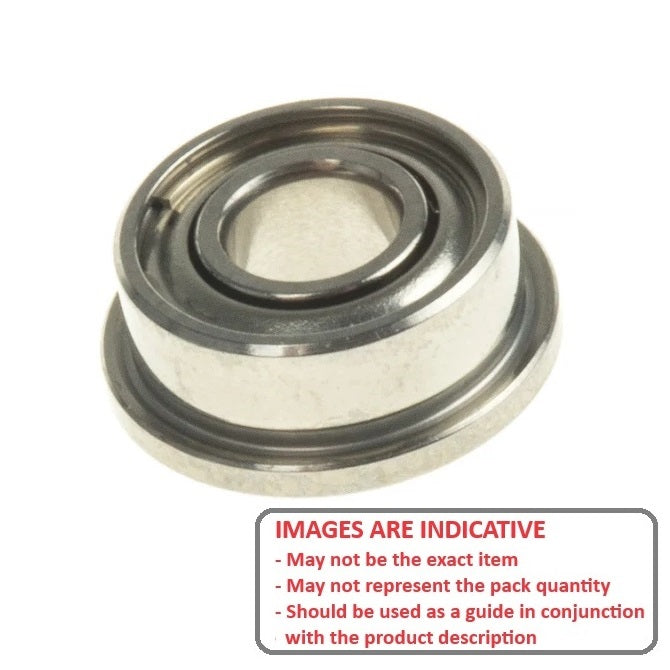

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

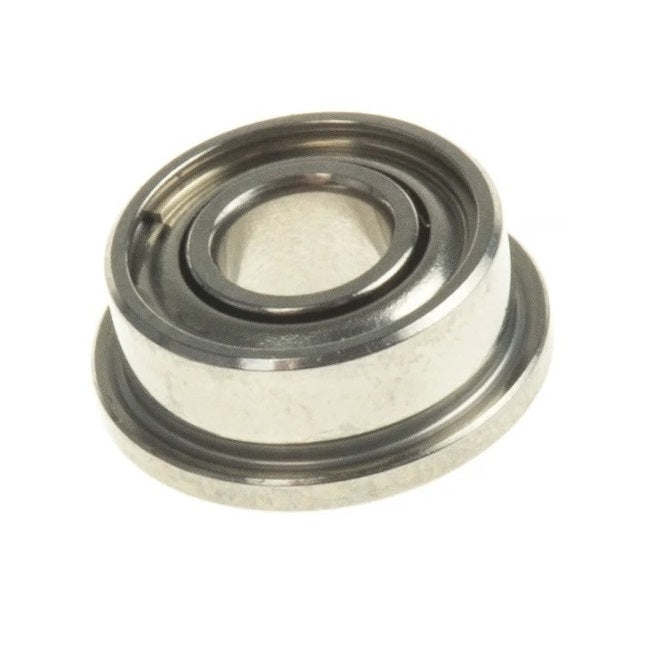

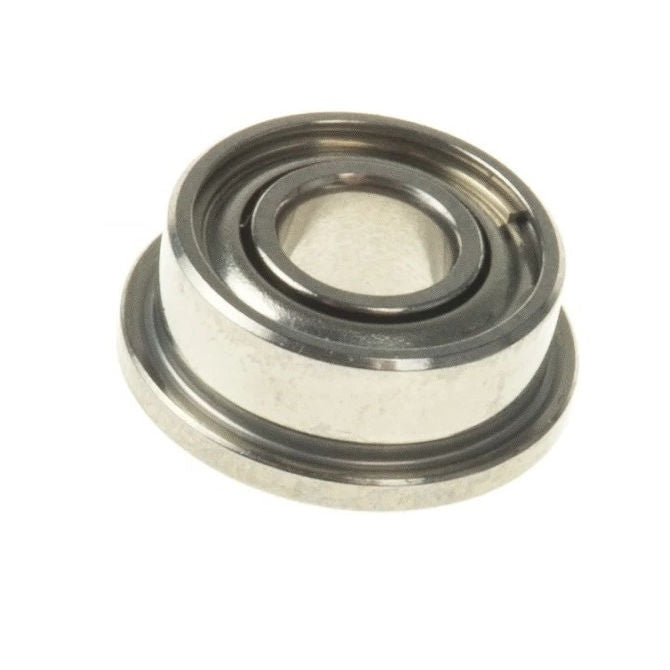

Single Row Ball Bearings - 1.5 mm x 4 mm x 2 mm
SF681XA-ZZS-MC34-GR5-R-L23 (20 Pcs)

Myonic

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting
Price:
$1,432.86 AUD
$1,432.86 AUD
per 20
Out Of Stock
Order 50 or more (1000 pcs) for $1,289.57 AUD per 20
Pre-Order now! Backorders for more than the stock quantity are expected before May 10, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

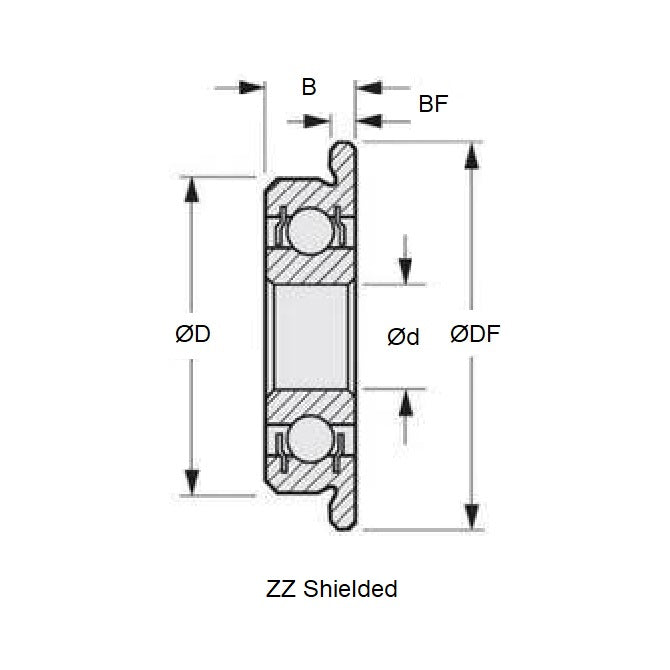

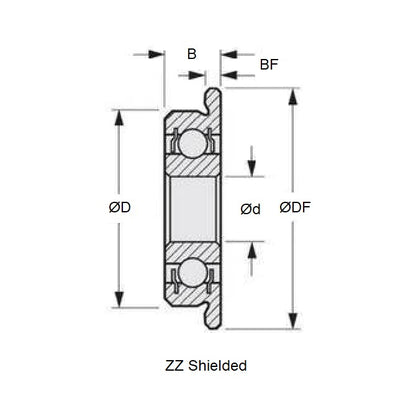

Product Details:

ID (d): 1.500mm
+ 0.000 / - 0.005

Stainless Steel AISI 440C
  • OD (D): 4.000mm
    + 0.000 / - 0.005
  • Width (B): 2.000mm
    + 0.000 / - 0.040
  • Flange Diameter (DF): 5.000mm
  • Flange Width (BF): 0.600mm
  • Precision Grade: Abec 5
  • Closure Type: ZZS
  • Bearing Type: Radial Flanged
  • Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Alternative Parts Include: ULKZ-154X-48-A5P-6/15-L23, ULKZ154X-A5P-L23, SF681XAZZSRGR5MC34L23, SF681XAZZSMC3GR5L23, SF68-1.5-2Z-P5, F68-1.5-2Z-P5, F681XA, P5-SF68-1.5SS, P5-F68-1.5SS, GRW, F681XABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
