ECL-0013-0016A-B (PK-5)
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 5 (250 pcs)
for $2.91 AUD per 5 pack
Couldn't load pickup availability

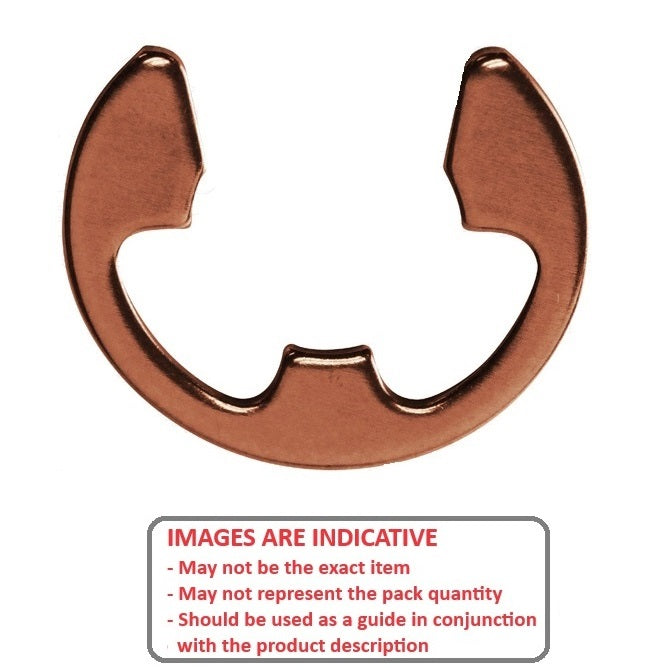

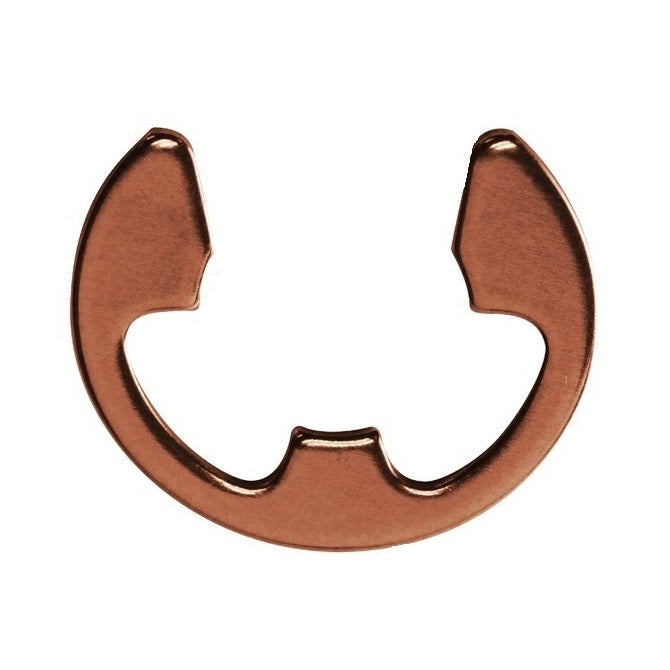

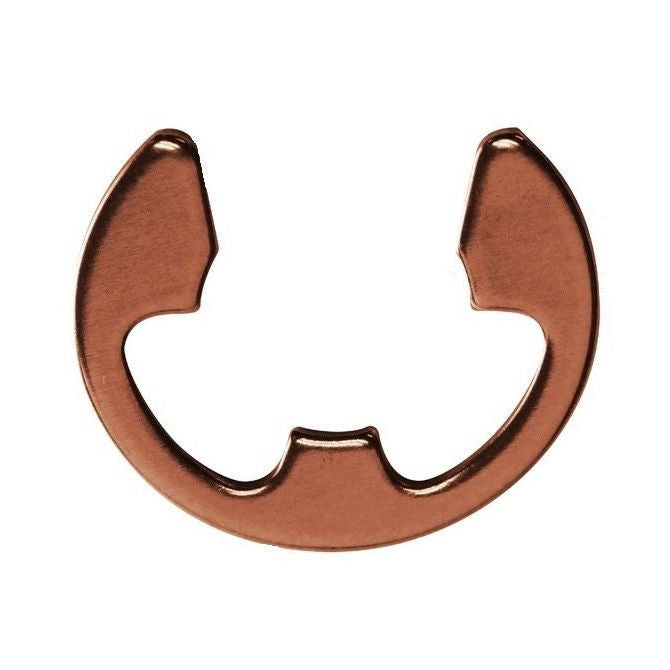

1/16 inch E-Clip - 1.59x1.32x0.25 mm E-Clips Retaining Rings - Beryllium Copper - Sold per pack of 5:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Beryllium Copper
Product Details
Additional stock available from USA subject to Prior Sale = 998

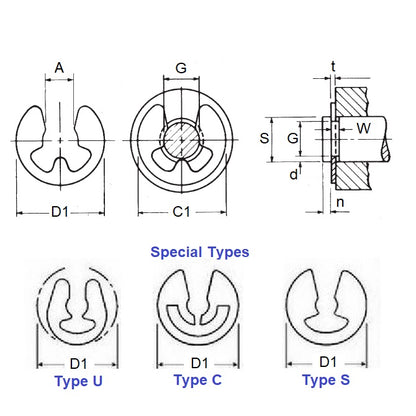

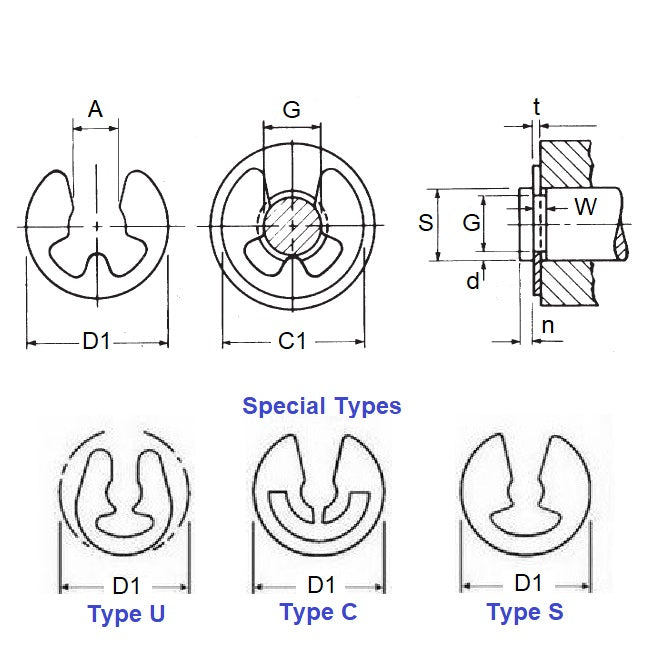

Minimum Rec. Shaft Dia (S): 1.59mm
+ 0.76 / - 0.00
(1.59mm is 0.063 in.)
Beryllium Copper
- Minimum Rec. Shaft Dia (S): 1.59mm
+ 0.76 / - 0.00
(1.59mm is 0.063 in.)
- Groove Dia. (Dg): 1.32mm
+ 0.051 / - 0.000
(1.32mm is 0.052 in.)
- Clip Thickness (T): 0.25mm
+/- 0.025
(0.25mm is 0.01 in.)
- Clip OD Loose (D1): 3.96mm
- Groove Width (W): 0.30mm
- Maximum Rec. Shaft Dia (S): 2.35
- Clip OD in groove (C1): 4.19mm
- Standard: MIL-16633
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5133-006-BC
- ALTPART
- 92725A505
- Ellison® E-006-BC
- Huyett® E-006-BC
- NoCor® E-006-BC
- RotorClip® E-006-BC
- N1500006BC
- N1500-006-BC
- N15000006BC
- N1500-0006BC
- E006BC
- 5133006BC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
