ECL-0013-0016A-B - Datasheet
MBA
Category Information

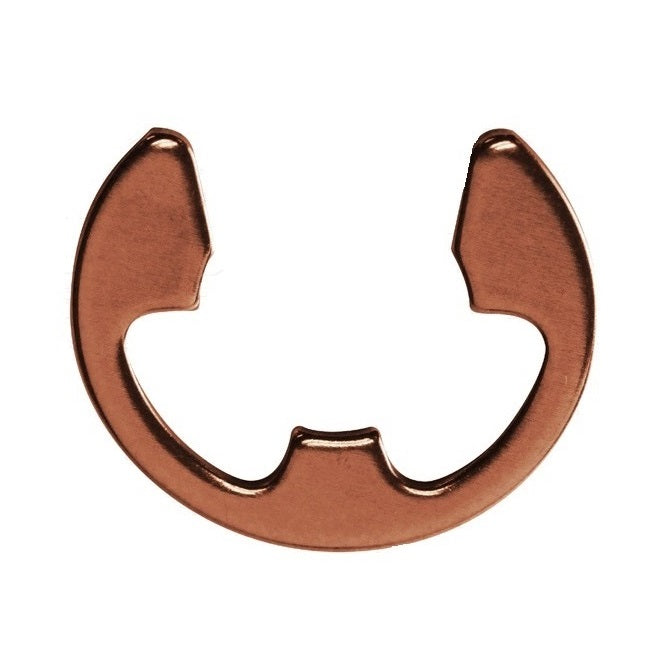

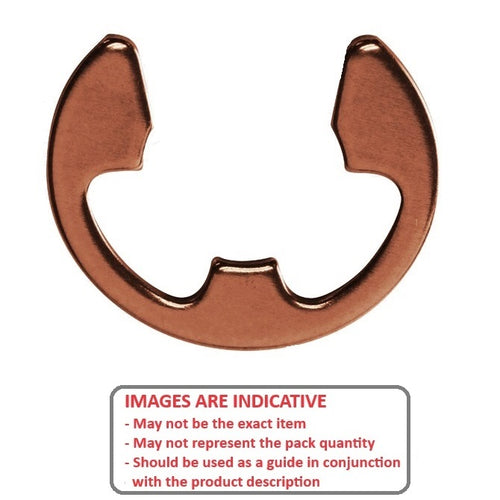

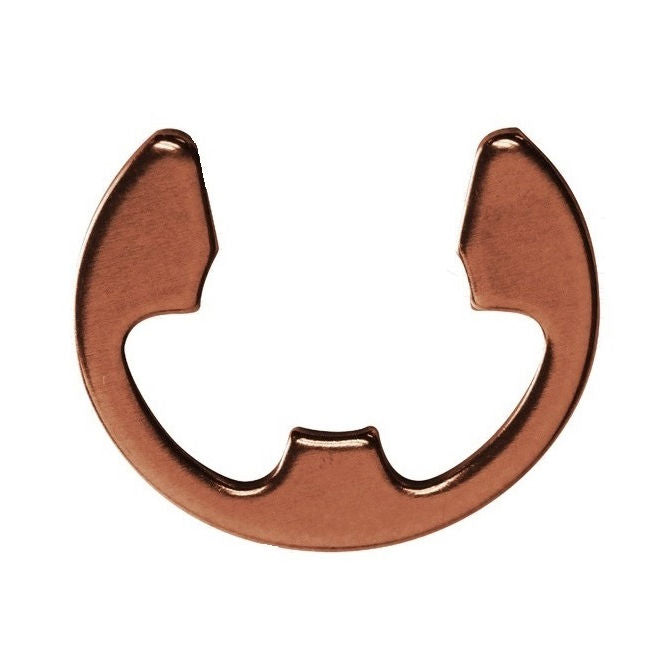

Retaining Rings - E-Clips - Basic - Beryllium CopperBeryllium Copper Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Berrylium Copper.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
1.59
mm
+ 0.76 / - 0.00
(Equiv. 0.063 in.) - Groove Dia. (Dg)
1.32
mm
+ 0.051 / - 0.000
(Equiv. 0.052 in.) - Clip Thickness (T)
0.25
mm
+/ - 0.025
(Equiv. 0.01 in.) - Clip OD Loose (D1) 3.96 mm
- Groove Width (W) 0.30 mm
- Maximum Rec. Shaft Dia (S) 2.35
- Clip OD in groove (C1) 4.19 mm
- Standard MIL-16633
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-006-BC
- 92725A505
- Ellison E-006-BC
- NoCor E-006-BC
- Rotorclip E-006-BC
- E006BC
- 5133006BC
- N1500-0006BC
- N15000006BC
- N1500-006-BC
- N1500006BC
