CFS-0014-0381-064-S1

Constant Force Springs - 1.4 Newtons - 381x0.102 mm - Carbon Spring Steel Music Wire

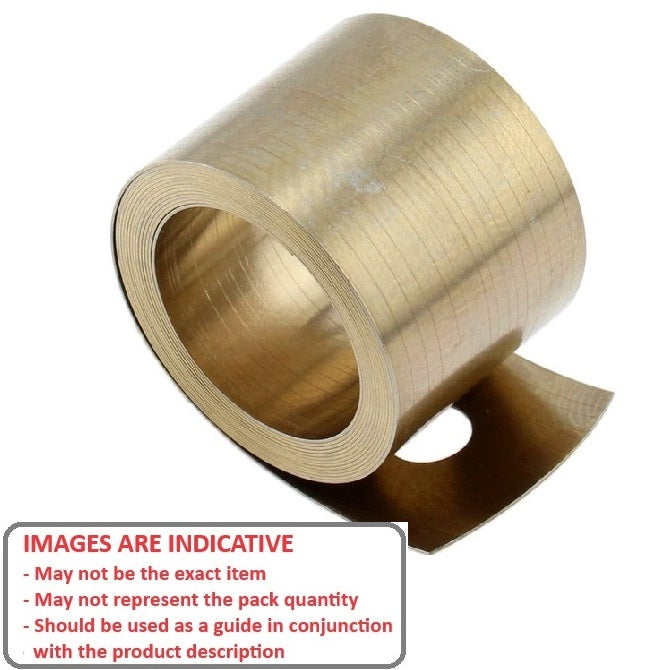

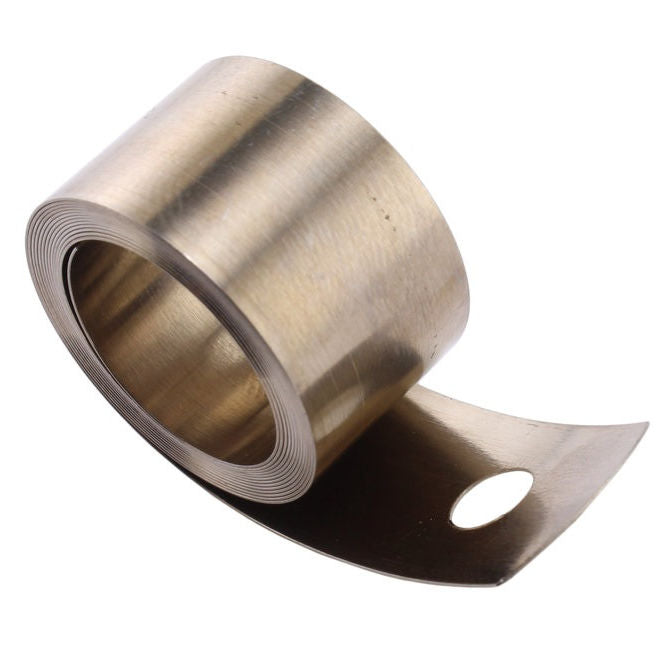

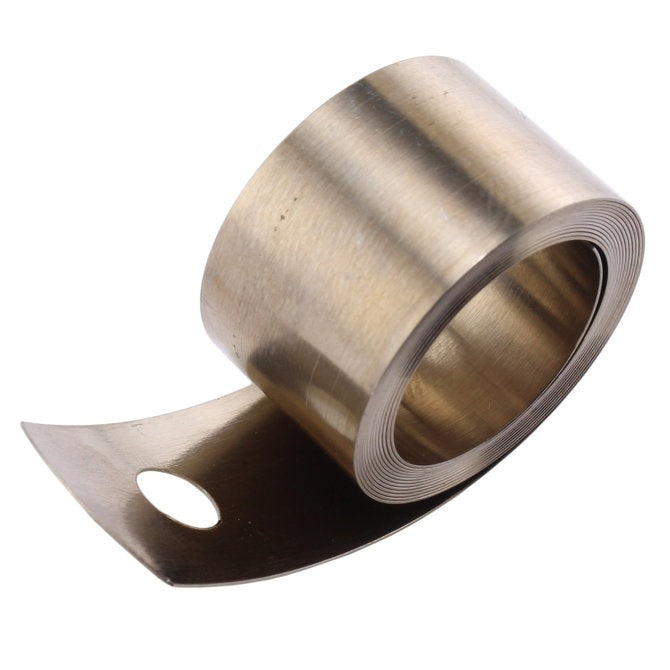

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Constant Force Springs - 1.4 Newtons - 381x0.102 mm - Spring Steel Music Wire
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$3.00 AUD
$5.70 AUD $3.00 AUD
Each
Qty: 2641 available now
Order 50 or more for $2.70 AUD Each
Only 2641 may be ordered online. If you need a large quantity, please contact us.

Base Category: Springs - Constant Force

Top Level Category: Springs - Constant Force

Product Details

Load Capacity: 1.4Newtons
+/- 10%

Carbon Spring Steel Music Wire

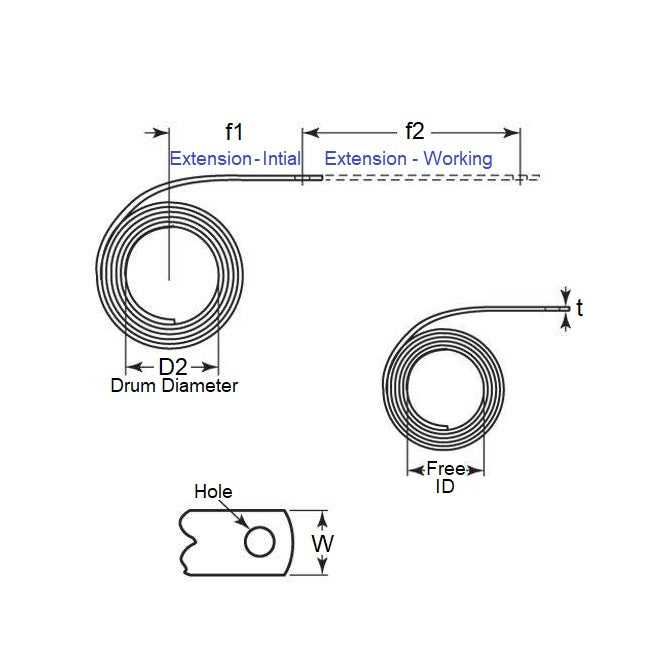

  • Band Length: 381.0mm
    (381.0mm is 15 in.)
  • Thickness (t): 0.102mm
    (0.102mm is 0.004 in.)
  • Band Width (W): 6.35mm
  • Free ID (Ref. Only): 11.11mm
  • Drum Diameter: 13.5
  • Cycles Life: 13000
  • Mounting Holes: 1mm
  • Initial Extension (f1): 20.3mm
  • Max. Working Deflection (f2): 304.8

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • ATA 150-135785
  • 150135785
  • A3X50-SK04D15
  • A3X50SK04D15

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
