CFS-0014-0381-064-S1 - Datasheet
MBA
Category Information

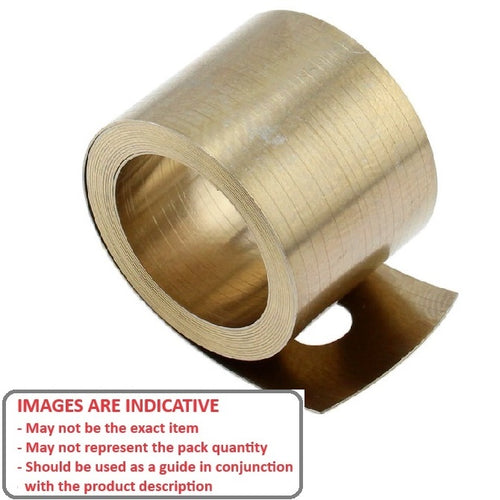

Springs - Constant ForceConstant Force Springs. 301 Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Mounting hole specifications will be supplied on request. These springs are usually mounted on a drum and the free end attached to a loading force like a counterbalance.
- Free ID may vary to meet load specification.
- Load capacity can be increased by using multiple strips in tandem, back to back or laminated.
- Be sure to leave at least 40mm coiled on the drum at full extension. The spring ID will wrap tightly on the drum so that most applications require no fastening to the drum.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

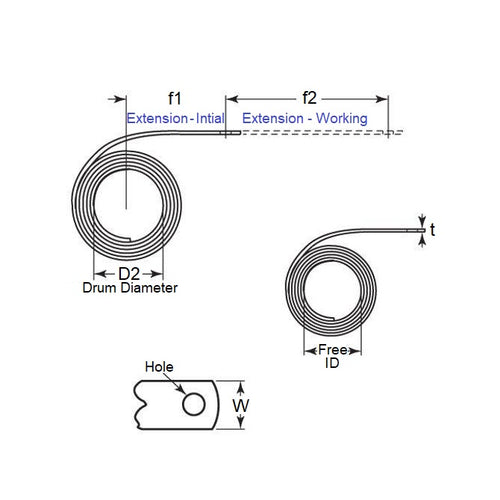

- Load Capacity : 1.4 Newtons +/- 10%
- Band Length
381.0
mm
(Equiv. 15 in.) - Thickness (t)
0.102
mm
(Equiv. 0.004 in.) - Band Width (W) 6.35 mm
- Free ID (Ref. Only) 11.11 mm
- Drum Diameter 13.5
- Cycles Life 13000
- Mounting Holes 1 mm
- Initial Extension (f1) 20.3 mm
- Max. Working Deflection (f2) 304.8
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- ATA 150-135785
- 150135785
- A3X50-SK04D15
- A3X50SK04D15
