SWR0A-ZZ-MC3-L23

Name: 1036833 | SWR0A-ZZ-MC3-L23 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Unflanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SWR0AZZMC3L23
Price: 5.89 AUD
Availability: InStock

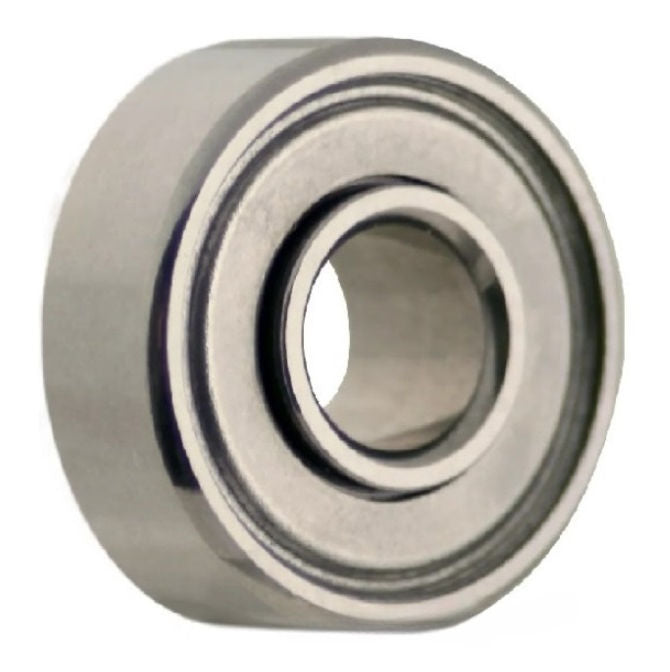

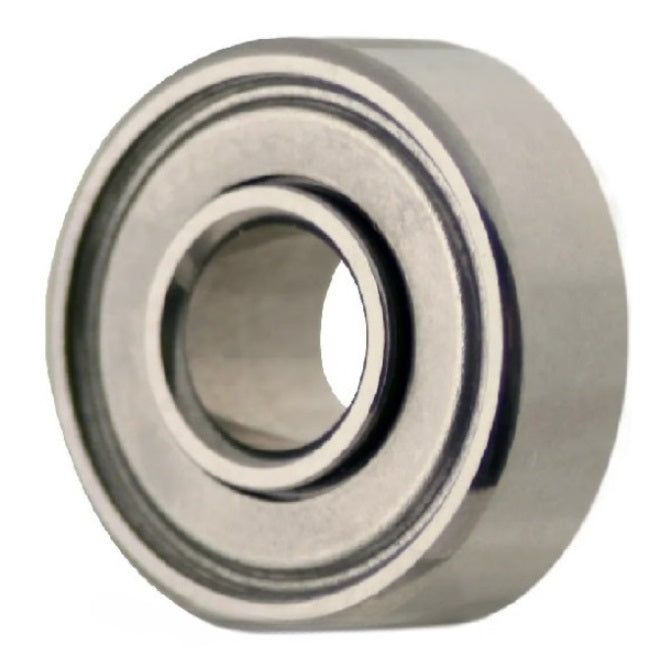

Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Unflanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$5.89 AUD

~~$13.29 AUD~~ $5.89 AUD

Each
Qty: 10 available now

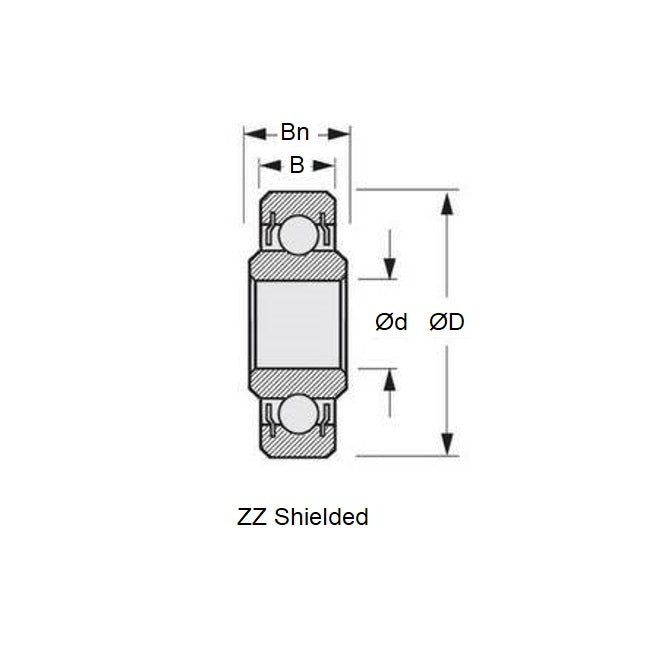

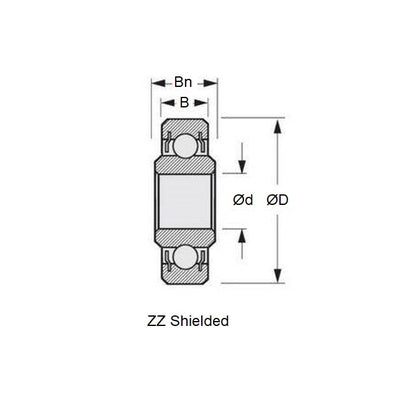

Product Details

ID (d): 1.191mm
_{+ 0.000 / - 0.0075}
_{(1.191mm is 0.047 in.)}

Stainless Steel AISI 440C

OD (D): 3.967mm
_{+ 0.000 / - 0.0075}
_{(3.967mm is 0.156 in.)}
Width (B): 2.381mm
_{+ 0.000 / - 0.125}
_{(2.381mm is 0.094 in.)}
Inner Ring Width (Bn): 3.175mm
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial with Extended Inner

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

MPB 2.1-2CHHE
ALTPART
57155K11
GRW E1191-2Z
Similar Part LX3-64
ADR LX3-64-ZZ
NHBB R0PPEE
NHBB R1-2.1-2-ZZEE
MPB R25CHHE
MPB R25RHHE
Similar Part RE46156
FAG RE46156-ZZ
Similar Part RW0
MPB S2.1-2CHHE
GRW SE1191-2Z
MPB SR25CHHE
MPB SR25RHHE
ISO SRW0ZZWL2
ISO SRW0-ZZWL2
NHBB SSR0PPEE
NHBB SSR1-2.1-2-ZZEE
Shielded Width A SWR0/2.381
Shielded SWR0A / 2
ADR WLX3-64-ZZ
RE46156ZZ
S212CHHE
WLX364ZZ
SS-R1-2.1-2-ZZEE
SSR1212ZZEE
DD-R1-2.1-2-ZZEE
DDR1212ZZEE
DDR1-2.1-2-ZZEE
SE11912Z
WR0ABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
