ECL-0007-0010-B (PK-5)

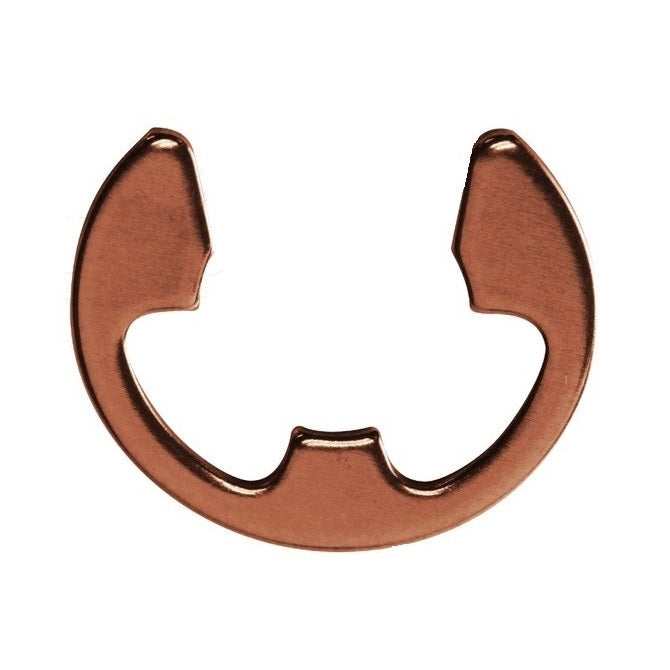

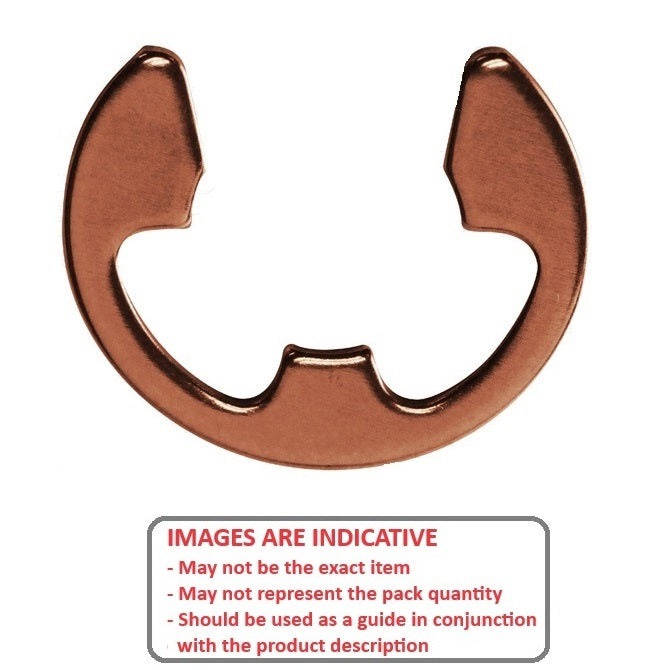

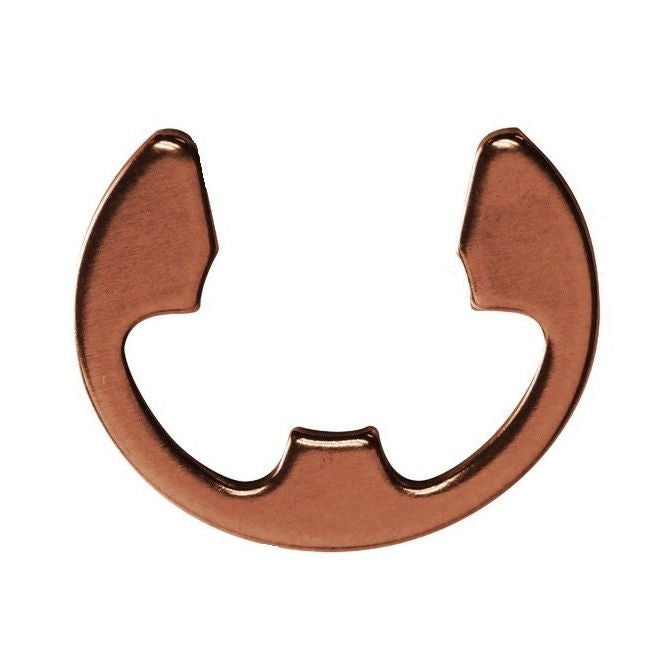

E-Clips Retaining Rings - 1x0.66x0.25 mm Basic - Beryllium Copper E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 5 (250 pcs)
for $2.41 AUD per 5 pack
Couldn't load pickup availability
1x0.66x0.25 mm E-Clips Retaining Rings - Beryllium Copper - Sold per pack of 5:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Beryllium Copper

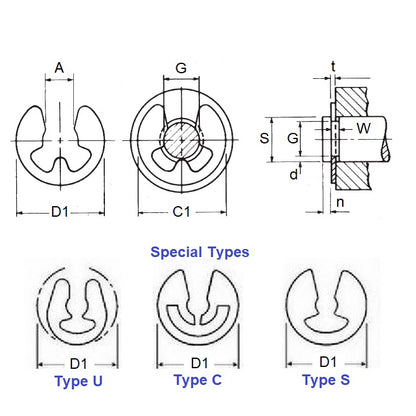

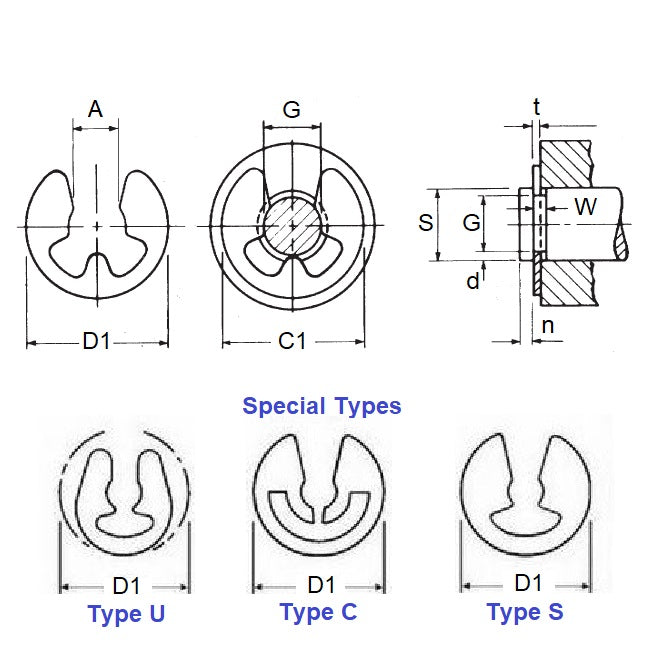

Product Details
Minimum Rec. Shaft Dia (S): 1.00mm+ 0.25 / - 0.00
(1.00mm is 0.039 in.)
Beryllium Copper
- Minimum Rec. Shaft Dia (S): 1.00mm
+ 0.25 / - 0.00
(1.00mm is 0.039 in.)
- Groove Dia. (Dg): 0.66mm
+ 0.051 / - 0.000
(0.66mm is 0.026 in.)
- Clip Thickness (T): 0.25mm
+/- 0.025
(0.25mm is 0.01 in.)
- Clip OD Loose (D1): 1.75mm
- Groove Width (W): 0.31mm
- Maximum Rec. Shaft Dia (S): 1.25
- Clip OD in groove (C1): 2.01mm
- Loose Clip ID (A): 0.64mm
- Standard: MIL-16633
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5133-004-BC
- Ellison® E-004-BC
- Huyett® E-004-BC
- NoCor® E-004-BC
- RotorClip® E-004-BC
- N1500-X004BC
- N1500X004BC
- E004BC
- 5133004BC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00070010B, ECL0007
