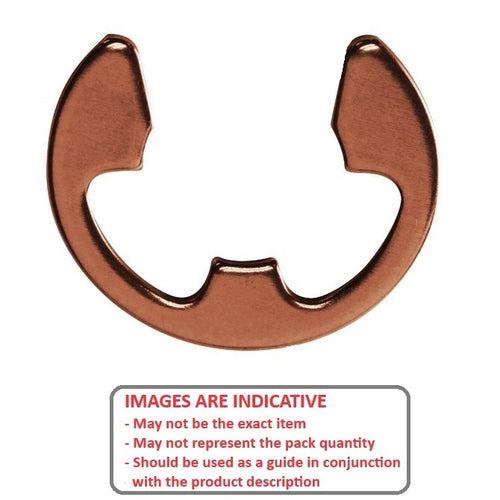

Retaining Rings - E-Clips - Basic - Beryllium CopperBeryllium Copper Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Berrylium Copper.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
1.00
mm
+ 0.25 / - 0.00
(Equiv. 0.039 in.) - Groove Dia. (Dg)
0.66
mm
+ 0.051 / - 0.000
(Equiv. 0.026 in.) - Clip Thickness (T)
0.25
mm
+/ - 0.025
(Equiv. 0.01 in.) - Clip OD Loose (D1) 1.75 mm
- Groove Width (W) 0.31 mm
- Maximum Rec. Shaft Dia (S) 1.25
- Clip OD in groove (C1) 2.01 mm
- Loose Clip ID (A) 0.64 mm
- Standard MIL-16633
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-004-BC
- Ellison E-004-BC
- NoCor E-004-BC
- Rotorclip E-004-BC
- E004BC
- 5133004BC
- N1500-X004BC
- N1500X004BC
