| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection | Optimum Deflection | Load at Optimal |

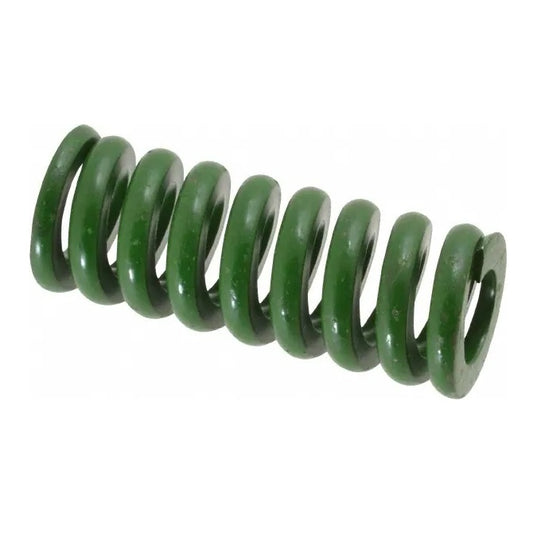

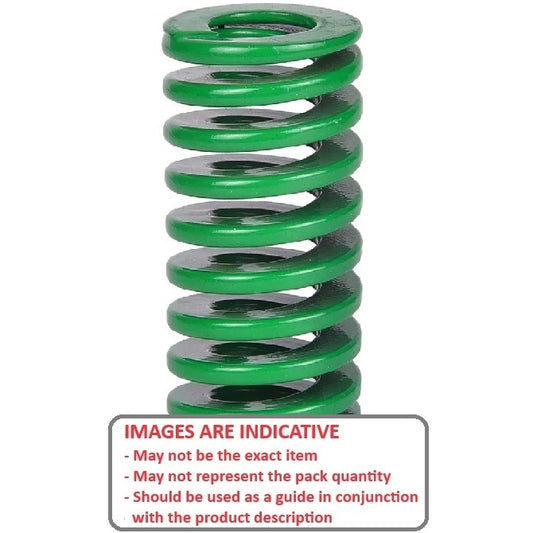

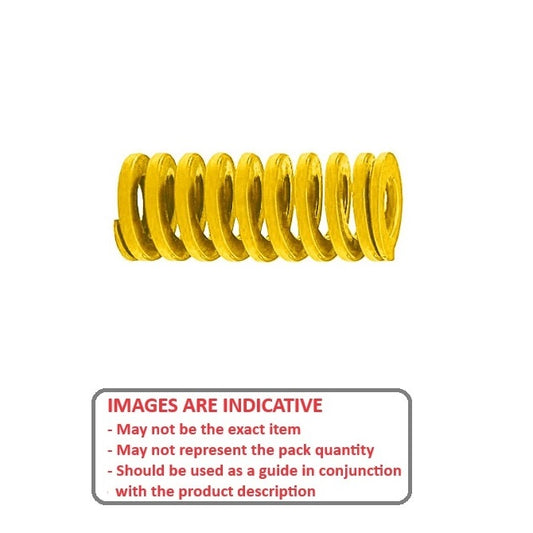

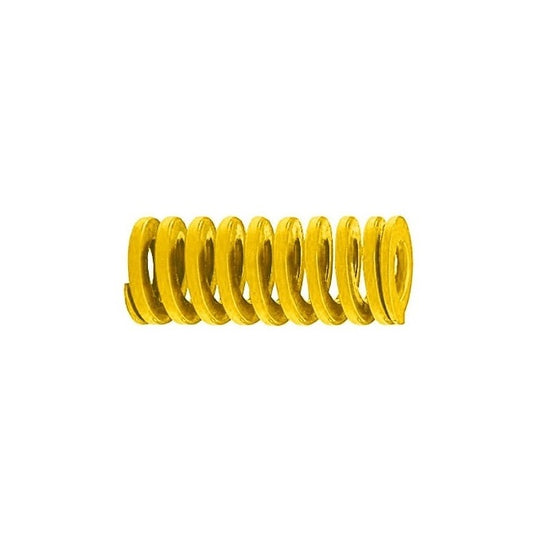

Indicative Image |
|---|---|---|---|---|---|---|
|
Hole Diameter (B)
16.00
mm (Equiv. 0.63 in.) |
Rod Diameter (A)
8.00
mm (Equiv. 0.315 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.8
mm |
Load at Optimal
669.4
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-160-051-EHD
Die Springs - 16x8x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.50 AUD
Regular price
Unit price
per
Each
|
||||||
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection |
Indicative Image |
||
|
Hole Diameter (B)
16.00
mm (Equiv. 0.63 in.) |
Rod Diameter (A)
8.00
mm (Equiv. 0.315 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.8 mm
Load at Optimal: 669.4 N
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-160-051-EHD
Die Springs - 16x8x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
16.00
mm (Equiv. 0.63 in.) |
Rod Diameter (A)
8.00
mm (Equiv. 0.315 in.) |
Length (L)
64.00
mm (Equiv. 2.52 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
16.0
mm |
Load at Optimal
171.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 23.7 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-160-064-LD
Die Springs - 16x8x64 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$23.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
16.00
mm (Equiv. 0.63 in.) |
Rod Diameter (A)
8.00
mm (Equiv. 0.315 in.) |
Length (L)
64.00
mm (Equiv. 2.52 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 16.0 mm
Load at Optimal: 171.2 N
Maximum Deflection: 37 Percent
Maximum Deflection: 23.7 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-160-064-LD
Die Springs - 16x8x64 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$23.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
1360.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-025-HD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$28.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 1360.8 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-025-HD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$28.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
1845.9
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-025-EHD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 1845.9 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-025-EHD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
351.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-025-LD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$23.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 351.5 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-025-LD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$23.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
617.4
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-025-MD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$23.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 617.4 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-025-MD
Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$23.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
1344.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-032-HD
Die Springs - 20x10x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$26.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 1344.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-032-HD
Die Springs - 20x10x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$26.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
360.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-032-LD
Die Springs - 20x10x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$24.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 360.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-032-LD
Die Springs - 20x10x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$24.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
580.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-032-MD
Die Springs - 20x10x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$26.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 580.8 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-032-MD
Die Springs - 20x10x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$26.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
1225.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-038-HD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$29.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 1225.5 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-038-HD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$29.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
1681.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-038-EHD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 1681.5 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-038-EHD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
316.4
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-038-LD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$30.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 316.4 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-038-LD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$30.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
532.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-038-MD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 532.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-038-MD
Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$27.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
11.0
mm |
Load at Optimal
330.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-044-LD
Die Springs - 20x10x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$26.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.0 mm
Load at Optimal: 330.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-044-LD
Die Springs - 20x10x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$26.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
11.0
mm |
Load at Optimal
522.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-044-MD
Die Springs - 20x10x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$24.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.0 mm
Load at Optimal: 522.5 N
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-044-MD
Die Springs - 20x10x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$24.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.8
mm |
Load at Optimal
1203.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-051-HD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$34.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.8 mm
Load at Optimal: 1203.2 N
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-051-HD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$34.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.8
mm |
Load at Optimal
1638.4
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-051-EHD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$33.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.8 mm
Load at Optimal: 1638.4 N
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-051-EHD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$33.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.8
mm |
Load at Optimal
313.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-051-LD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$29.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.8 mm
Load at Optimal: 313.6 N
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-051-LD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$29.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.8
mm |
Load at Optimal
533.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-051-MD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.8 mm
Load at Optimal: 533.8 N
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-051-MD
Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$30.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
64.00
mm (Equiv. 2.52 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
16.0
mm |
Load at Optimal
320.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 23.7 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-064-LD
Die Springs - 20x10x64 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$31.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
64.00
mm (Equiv. 2.52 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 16.0 mm
Load at Optimal: 320.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 23.7 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-064-LD
Die Springs - 20x10x64 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$31.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.0
mm |
Load at Optimal
1134.3
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-076-HD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$35.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.0 mm
Load at Optimal: 1134.3 N
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Heavy Duty |
||||||
|
Part Number: DS-200-076-HD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$35.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.0
mm |
Load at Optimal
1552.3
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-076-EHD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$38.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.0 mm
Load at Optimal: 1552.3 N
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Extra Heavy Duty |
||||||
|
Part Number: DS-200-076-EHD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$38.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.0
mm |
Load at Optimal
304.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-076-LD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$32.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.0 mm
Load at Optimal: 304.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Light Duty |
||||||
|
Part Number: DS-200-076-LD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$32.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.0
mm |
Load at Optimal
476.9
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-076-MD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$52.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
20.00
mm (Equiv. 0.787 in.) |
Rod Diameter (A)
10.00
mm (Equiv. 0.394 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.0 mm
Load at Optimal: 476.9 N
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric - Medium Duty |
||||||
|
Part Number: DS-200-076-MD
Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$52.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
