Collection: Springs - Die - Metric

Springs -> Die -> Metric

There are 121 products in the sub-categories of Springs - Die - Metric. Scroll down or follow the link to Springs - Die - Metric in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

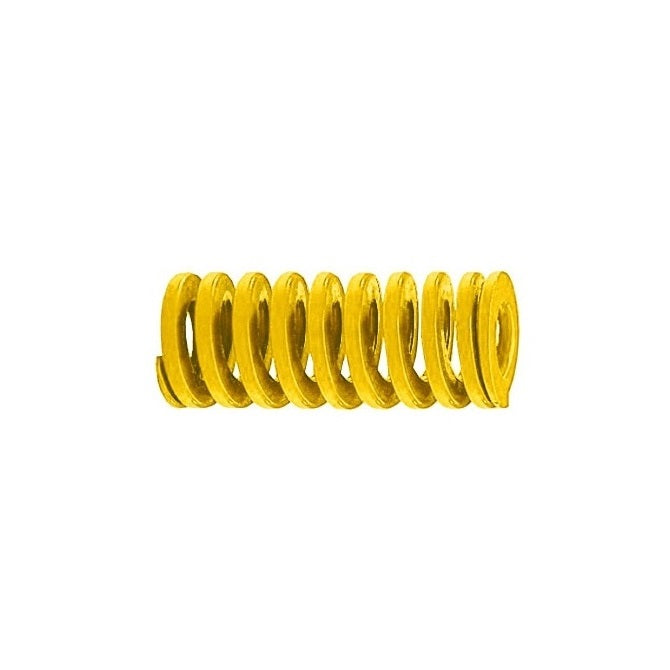

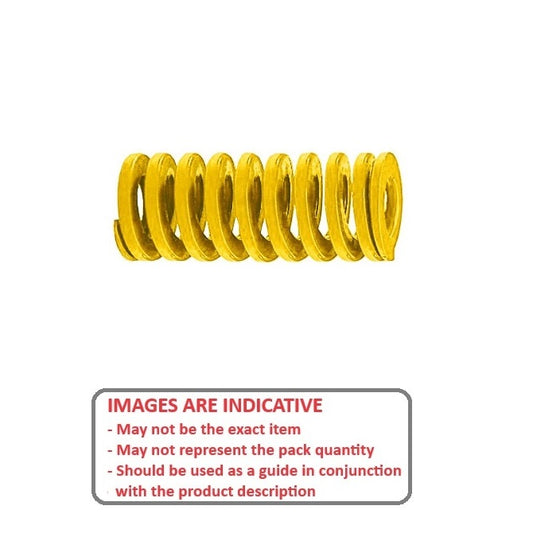

Springs - Die - Metric - Extra Heavy Duty

A selection of Extra Heavy Duty Metric Die Springs. Colour coded yellow....

Springs - Die - Metric - Extra Heavy Duty

Springs - Die - Metric - Heavy Duty

A selection of Heavy Duty Metric Die Springs. Colour coded red. High...

Springs - Die - Metric - Heavy Duty

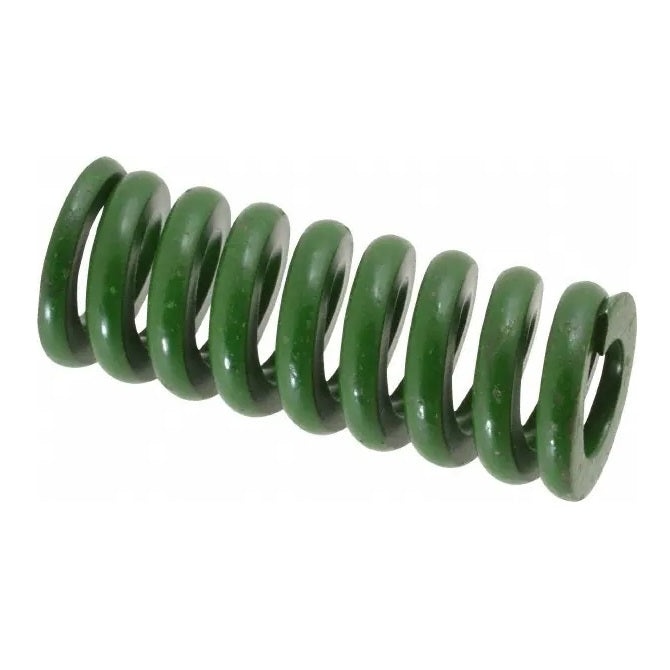

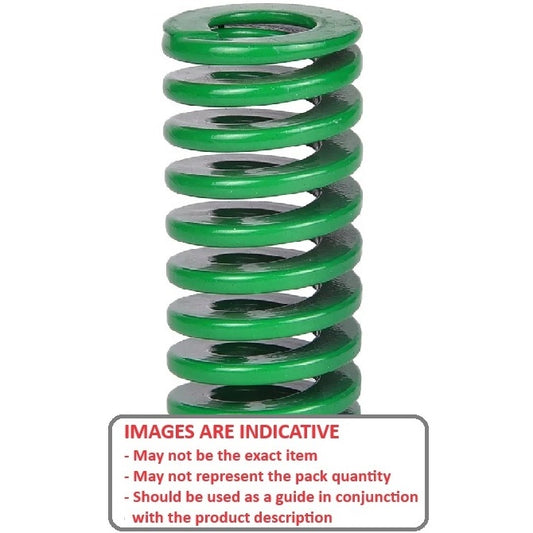

Springs - Die - Metric - Light Duty

A selection of Light Duty Metric Die Springs. Colour coded green. High...

Springs - Die - Metric - Light Duty

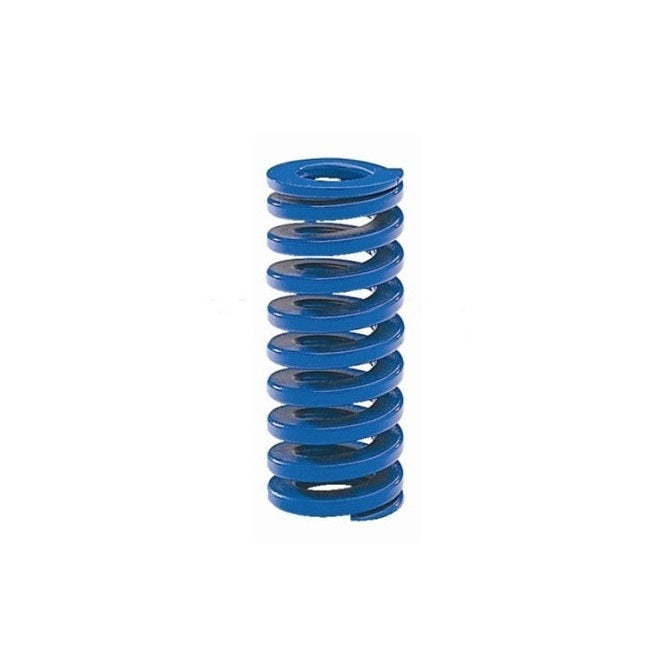

Springs - Die - Metric - Medium Duty

A selection of Medium Duty Metric Die Springs. Colour coded blue. High...

Springs - Die - Metric - Medium Duty

Category Details

This category includes various types of die springs.

Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spings Catalogue PDF

A more concise listing may be found in the Springs - Die - Metric category on the Small Parts & Bearings online store.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 100.8 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-025-MD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 100.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-025-MD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-025-MD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Sale DS-100-025-MD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 139.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-025-HD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 139.2 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-025-HD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-025-HD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Sale DS-100-025-HD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 231.8 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 231.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-025-EHD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Sale DS-100-025-EHD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 63.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-025-LD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 63.0 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-025-LD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-025-LD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Sale DS-100-025-LD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 104.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-032-MD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 104.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-032-MD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-032-MD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Sale DS-100-032-MD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 140.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-032-HD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 140.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-032-HD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-032-HD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Sale DS-100-032-HD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 223.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 223.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-032-EHD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Sale DS-100-032-EHD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 68.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-032-LD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 68.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-032-LD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-032-LD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Sale DS-100-032-LD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 113.1 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-038-MD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-038-MD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-MD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-MD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 162.5 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-038-HD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 162.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-038-HD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-HD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-HD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 225.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 225.2 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-EHD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-EHD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 64.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-038-LD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 64.6 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-038-LD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-LD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-LD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 44.00 mm (Equiv. 1.732 in.)	Optimum Deflection 25 Percent	Optimum Deflection 11.0 mm	Load at Optimal 113.3 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-044-MD Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $15.50 AUD Regular price ~~$18.60 AUD~~ Sale price $15.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 44.00 mm (Equiv. 1.732 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 113.3 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-044-MD Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $15.50 AUD Regular price ~~$18.60 AUD~~ Sale price $15.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-044-MD --- Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Sale DS-100-044-MD --- Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Regular price $15.50 AUD Regular price ~~$18.60 AUD~~ Sale price $15.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 44.00 mm (Equiv. 1.732 in.)	Optimum Deflection 25 Percent	Optimum Deflection 11.0 mm	Load at Optimal 66.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-044-LD Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 44.00 mm (Equiv. 1.732 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 66.0 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-044-LD Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-044-LD --- Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Sale DS-100-044-LD --- Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 113.9 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-051-MD Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 113.9 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-051-MD Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-051-MD --- Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Sale DS-100-051-MD --- Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 163.8 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-051-HD Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 163.8 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-051-HD Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-051-HD --- Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Sale DS-100-051-HD --- Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 64.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-051-LD Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 64.0 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-051-LD Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-051-LD --- Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Sale DS-100-051-LD --- Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 305.00 mm (Equiv. 12.008 in.)	Optimum Deflection 1.1 Percent		Load at Optimal 83.9 N
Material: Carbon Spring Steel Maximum Deflection: 100.7 Percent Maximum Deflection: 17.4 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-305-LD Die Springs - 10x5x305 mm Metric - Carbon Spring Steel 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 305.00 mm (Equiv. 12.008 in.)	Optimum Deflection 1.1 Percent
Material: Carbon Spring Steel Load at Optimal: 83.9 N Maximum Deflection: 100.7 Percent Maximum Deflection: 17.4 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-305-LD Die Springs - 10x5x305 mm Metric - Carbon Spring Steel 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
DS-100-305-LD --- Die Springs - 10x5x305 mm Metric - Carbon Spring Steel Sale DS-100-305-LD --- Die Springs - 10x5x305 mm Metric - Carbon Spring Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 112.8 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-125-025-LD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 112.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-125-025-LD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-025-LD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Sale DS-125-025-LD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 189.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-125-025-MD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 189.0 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-125-025-MD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-025-MD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Sale DS-125-025-MD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 265.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-125-025-HD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $15.41 AUD Regular price ~~$18.49 AUD~~ Sale price $15.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 265.2 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-125-025-HD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $15.41 AUD Regular price ~~$18.49 AUD~~ Sale price $15.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-025-HD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Sale DS-125-025-HD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Regular price $15.41 AUD Regular price ~~$18.49 AUD~~ Sale price $15.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 368.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-125-025-EHD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 368.6 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-125-025-EHD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-025-EHD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Sale DS-125-025-EHD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 131.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-125-032-LD Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $13.41 AUD Regular price ~~$16.09 AUD~~ Sale price $13.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 131.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-125-032-LD Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $13.41 AUD Regular price ~~$16.09 AUD~~ Sale price $13.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-032-LD --- Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Sale DS-125-032-LD --- Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Regular price $13.41 AUD Regular price ~~$16.09 AUD~~ Sale price $13.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 198.4 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-125-032-MD Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 198.4 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-125-032-MD Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-032-MD --- Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Sale DS-125-032-MD --- Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Springs - Die - Metric

Category Details

Filter

Filter

Subscribe to our emails
