Collection: Springs - Die - Metric - Extra Heavy Duty

Springs -> Die -> Metric -> Extra Heavy Duty

There are 19 products in the sub-categories of Springs - Die - Metric - Extra Heavy Duty. Browse the Springs - Die - Metric - Extra Heavy Duty products table.

Category Details

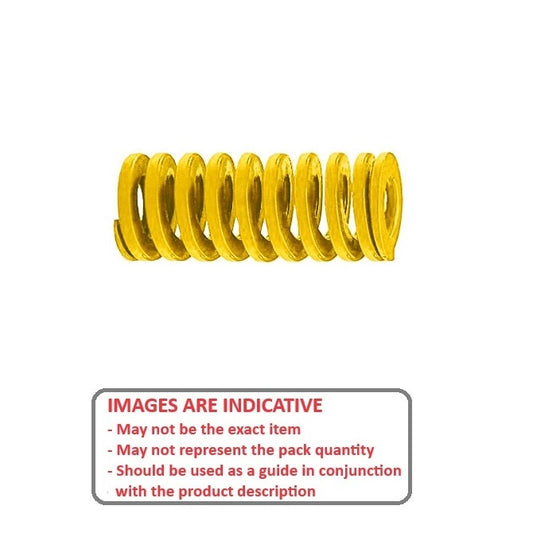

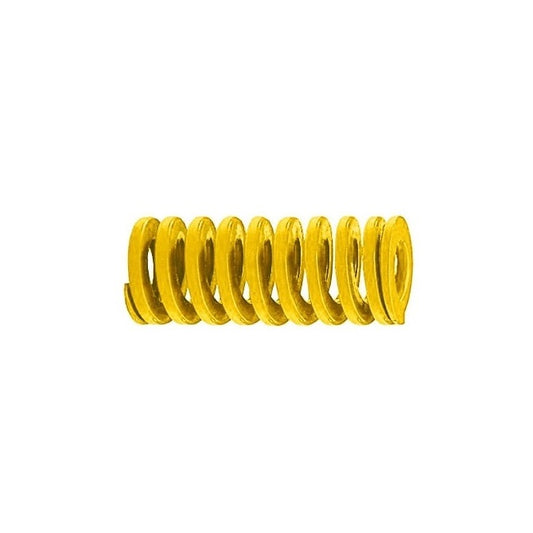

A selection of Extra Heavy Duty Metric Die Springs. Colour coded yellow. High tensile strength chromium alloy steel.

Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Heat Resistance: Up to +230 Deg C (Loss of load occurs above +120 Deg C).
Spring Ends: Squared and ground.
For compressed length, Subtract Deflection from Free Length.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spings Catalogue PDF

A more concise listing may be found in the Springs - Die - Metric - Extra Heavy Duty category on the Small Parts & Bearings online store.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 231.8 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 342.2 N Spring Rate: 36.8 N/mm Colour Code: Yellow
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 231.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 342.2 N Spring Rate: 36.8 N/mm Colour Code: Yellow
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-025-EHD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Sale DS-100-025-EHD --- Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Regular price $16.05 AUD Regular price ~~$19.25 AUD~~ Sale price $16.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 223.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 329.2 N Spring Rate: 27.9 N/mm Colour Code: Yellow
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 223.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 329.2 N Spring Rate: 27.9 N/mm Colour Code: Yellow
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-100-032-EHD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Sale DS-100-032-EHD --- Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Regular price $11.05 AUD Regular price ~~$13.25 AUD~~ Sale price $11.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 225.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 334.2 N Spring Rate: 23.7 N/mm Colour Code: Yellow
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 225.2 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 334.2 N Spring Rate: 23.7 N/mm Colour Code: Yellow
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Sat, Oct 04, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-EHD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-EHD --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per 4 Available Now
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 368.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 544.1 N Spring Rate: 58.5 N/mm Colour Code: Yellow
Part Number: DS-125-025-EHD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 368.6 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 544.1 N Spring Rate: 58.5 N/mm Colour Code: Yellow
Part Number: DS-125-025-EHD Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-025-EHD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Sale DS-125-025-EHD --- Die Springs - 12.5x6.3x25 mm Metric - Carbon Spring Steel Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 351.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 518.0 N Spring Rate: 43.9 N/mm Colour Code: Yellow
Part Number: DS-125-032-EHD Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 32.00 mm (Equiv. 1.26 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 351.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 518.0 N Spring Rate: 43.9 N/mm Colour Code: Yellow
Part Number: DS-125-032-EHD Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-032-EHD --- Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Sale DS-125-032-EHD --- Die Springs - 12.5x6.3x32 mm Metric - Carbon Spring Steel Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 342.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 507.6 N Spring Rate: 36.0 N/mm Colour Code: Yellow
Part Number: DS-125-038-EHD Die Springs - 12.5x6.3x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.50 mm (Equiv. 0.492 in.)	Rod Diameter (A) 6.30 mm (Equiv. 0.248 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 342.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 507.6 N Spring Rate: 36.0 N/mm Colour Code: Yellow
Part Number: DS-125-038-EHD Die Springs - 12.5x6.3x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-125-038-EHD --- Die Springs - 12.5x6.3x38 mm Metric - Carbon Spring Steel Sale DS-125-038-EHD --- Die Springs - 12.5x6.3x38 mm Metric - Carbon Spring Steel Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 16.00 mm (Equiv. 0.63 in.)	Rod Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 743.4 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 1097.4 N Spring Rate: 118.0 N/mm Colour Code: Yellow
Part Number: DS-160-025-EHD Die Springs - 16x8x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $18.05 AUD Regular price ~~$21.65 AUD~~ Sale price $18.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 16.00 mm (Equiv. 0.63 in.)	Rod Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 743.4 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 1097.4 N Spring Rate: 118.0 N/mm Colour Code: Yellow
Part Number: DS-160-025-EHD Die Springs - 16x8x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $18.05 AUD Regular price ~~$21.65 AUD~~ Sale price $18.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-160-025-EHD --- Die Springs - 16x8x25 mm Metric - Carbon Spring Steel Sale DS-160-025-EHD --- Die Springs - 16x8x25 mm Metric - Carbon Spring Steel Regular price $18.05 AUD Regular price ~~$21.65 AUD~~ Sale price $18.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 16.00 mm (Equiv. 0.63 in.)	Rod Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 685.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 1016.6 N Spring Rate: 72.1 N/mm Colour Code: Yellow
Part Number: DS-160-038-EHD Die Springs - 16x8x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 16.00 mm (Equiv. 0.63 in.)	Rod Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 685.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 1016.6 N Spring Rate: 72.1 N/mm Colour Code: Yellow
Part Number: DS-160-038-EHD Die Springs - 16x8x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-160-038-EHD --- Die Springs - 16x8x38 mm Metric - Carbon Spring Steel Sale DS-160-038-EHD --- Die Springs - 16x8x38 mm Metric - Carbon Spring Steel Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 16.00 mm (Equiv. 0.63 in.)	Rod Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 669.4 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 988.5 N Spring Rate: 52.3 N/mm Colour Code: Yellow
Part Number: DS-160-051-EHD Die Springs - 16x8x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $27.50 AUD Regular price ~~$33.00 AUD~~ Sale price $27.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 16.00 mm (Equiv. 0.63 in.)	Rod Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 669.4 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 988.5 N Spring Rate: 52.3 N/mm Colour Code: Yellow
Part Number: DS-160-051-EHD Die Springs - 16x8x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $27.50 AUD Regular price ~~$33.00 AUD~~ Sale price $27.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-160-051-EHD --- Die Springs - 16x8x51 mm Metric - Carbon Spring Steel Sale DS-160-051-EHD --- Die Springs - 16x8x51 mm Metric - Carbon Spring Steel Regular price $27.50 AUD Regular price ~~$33.00 AUD~~ Sale price $27.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 1845.9 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 2724.9 N Spring Rate: 293.0 N/mm Colour Code: Yellow
Part Number: DS-200-025-EHD Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $27.50 AUD Regular price ~~$33.00 AUD~~ Sale price $27.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 25.00 mm (Equiv. 0.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 1845.9 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 2724.9 N Spring Rate: 293.0 N/mm Colour Code: Yellow
Part Number: DS-200-025-EHD Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $27.50 AUD Regular price ~~$33.00 AUD~~ Sale price $27.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-200-025-EHD --- Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Sale DS-200-025-EHD --- Die Springs - 20x10x25 mm Metric - Carbon Spring Steel Regular price $27.50 AUD Regular price ~~$33.00 AUD~~ Sale price $27.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 1681.5 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 2495.7 N Spring Rate: 177.0 N/mm Colour Code: Yellow
Part Number: DS-200-038-EHD Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $27.05 AUD Regular price ~~$32.45 AUD~~ Sale price $27.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 1681.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 2495.7 N Spring Rate: 177.0 N/mm Colour Code: Yellow
Part Number: DS-200-038-EHD Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $27.05 AUD Regular price ~~$32.45 AUD~~ Sale price $27.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-200-038-EHD --- Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Sale DS-200-038-EHD --- Die Springs - 20x10x38 mm Metric - Carbon Spring Steel Regular price $27.05 AUD Regular price ~~$32.45 AUD~~ Sale price $27.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 1638.4 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 2419.2 N Spring Rate: 128.0 N/mm Colour Code: Yellow
Part Number: DS-200-051-EHD Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $33.05 AUD Regular price ~~$39.65 AUD~~ Sale price $33.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 1638.4 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 2419.2 N Spring Rate: 128.0 N/mm Colour Code: Yellow
Part Number: DS-200-051-EHD Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $33.05 AUD Regular price ~~$39.65 AUD~~ Sale price $33.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-200-051-EHD --- Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Sale DS-200-051-EHD --- Die Springs - 20x10x51 mm Metric - Carbon Spring Steel Regular price $33.05 AUD Regular price ~~$39.65 AUD~~ Sale price $33.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 1552.3 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 2295.8 N Spring Rate: 81.7 N/mm Colour Code: Yellow
Part Number: DS-200-076-EHD Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $38.95 AUD Regular price ~~$46.75 AUD~~ Sale price $38.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Rod Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 1552.3 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 2295.8 N Spring Rate: 81.7 N/mm Colour Code: Yellow
Part Number: DS-200-076-EHD Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $38.95 AUD Regular price ~~$46.75 AUD~~ Sale price $38.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-200-076-EHD --- Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Sale DS-200-076-EHD --- Die Springs - 20x10x76 mm Metric - Carbon Spring Steel Regular price $38.95 AUD Regular price ~~$46.75 AUD~~ Sale price $38.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 3287.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 4878.6 N Spring Rate: 346.0 N/mm Colour Code: Yellow
Part Number: DS-250-038-EHD Die Springs - 25x12.5x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $42.86 AUD Regular price ~~$51.44 AUD~~ Sale price $42.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 3287.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 4878.6 N Spring Rate: 346.0 N/mm Colour Code: Yellow
Part Number: DS-250-038-EHD Die Springs - 25x12.5x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $42.86 AUD Regular price ~~$51.44 AUD~~ Sale price $42.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-250-038-EHD --- Die Springs - 25x12.5x38 mm Metric - Carbon Spring Steel Sale DS-250-038-EHD --- Die Springs - 25x12.5x38 mm Metric - Carbon Spring Steel Regular price $42.86 AUD Regular price ~~$51.44 AUD~~ Sale price $42.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 2656.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 3921.8 N Spring Rate: 207.5 N/mm Colour Code: Yellow
Part Number: DS-250-051-EHD Die Springs - 25x12.5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $46.68 AUD Regular price ~~$56.02 AUD~~ Sale price $46.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 2656.0 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 3921.8 N Spring Rate: 207.5 N/mm Colour Code: Yellow
Part Number: DS-250-051-EHD Die Springs - 25x12.5x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $46.68 AUD Regular price ~~$56.02 AUD~~ Sale price $46.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-250-051-EHD --- Die Springs - 25x12.5x51 mm Metric - Carbon Spring Steel Sale DS-250-051-EHD --- Die Springs - 25x12.5x51 mm Metric - Carbon Spring Steel Regular price $46.68 AUD Regular price ~~$56.02 AUD~~ Sale price $46.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 2485.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 3675.5 N Spring Rate: 130.8 N/mm Colour Code: Yellow
Part Number: DS-250-076-EHD Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $70.95 AUD Regular price ~~$85.15 AUD~~ Sale price $70.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 2485.2 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 3675.5 N Spring Rate: 130.8 N/mm Colour Code: Yellow
Part Number: DS-250-076-EHD Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $70.95 AUD Regular price ~~$85.15 AUD~~ Sale price $70.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-250-076-EHD --- Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel Sale DS-250-076-EHD --- Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel Regular price $70.95 AUD Regular price ~~$85.15 AUD~~ Sale price $70.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 32.00 mm (Equiv. 1.26 in.)	Rod Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 5017.9 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 7447.6 N Spring Rate: 528.2 N/mm Colour Code: Yellow
Part Number: DS-320-038-EHD Die Springs - 32x16x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $46.32 AUD Regular price ~~$55.58 AUD~~ Sale price $46.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 32.00 mm (Equiv. 1.26 in.)	Rod Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 5017.9 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 7447.6 N Spring Rate: 528.2 N/mm Colour Code: Yellow
Part Number: DS-320-038-EHD Die Springs - 32x16x38 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $46.32 AUD Regular price ~~$55.58 AUD~~ Sale price $46.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-320-038-EHD --- Die Springs - 32x16x38 mm Metric - Carbon Spring Steel Sale DS-320-038-EHD --- Die Springs - 32x16x38 mm Metric - Carbon Spring Steel Regular price $46.32 AUD Regular price ~~$55.58 AUD~~ Sale price $46.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 32.00 mm (Equiv. 1.26 in.)	Rod Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 4151.5 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 6139.9 N Spring Rate: 218.5 N/mm Colour Code: Yellow
Part Number: DS-320-076-EHD Die Springs - 32x16x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $94.59 AUD Regular price ~~$113.51 AUD~~ Sale price $94.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 32.00 mm (Equiv. 1.26 in.)	Rod Diameter (A) 16.00 mm (Equiv. 0.63 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 4151.5 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 6139.9 N Spring Rate: 218.5 N/mm Colour Code: Yellow
Part Number: DS-320-076-EHD Die Springs - 32x16x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $94.59 AUD Regular price ~~$113.51 AUD~~ Sale price $94.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-320-076-EHD --- Die Springs - 32x16x76 mm Metric - Carbon Spring Steel Sale DS-320-076-EHD --- Die Springs - 32x16x76 mm Metric - Carbon Spring Steel Regular price $94.59 AUD Regular price ~~$113.51 AUD~~ Sale price $94.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 7792.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 11541.9 N Spring Rate: 487.0 N/mm Colour Code: Yellow
Part Number: DS-400-064-EHD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $134.68 AUD Regular price ~~$161.62 AUD~~ Sale price $134.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 7792.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 11541.9 N Spring Rate: 487.0 N/mm Colour Code: Yellow
Part Number: DS-400-064-EHD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $134.68 AUD Regular price ~~$161.62 AUD~~ Sale price $134.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-064-EHD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Sale DS-400-064-EHD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Regular price $134.68 AUD Regular price ~~$161.62 AUD~~ Sale price $134.68 AUD Unit price per Out of stock! Backorder Now Sale
