Collection: Springs - Die - Imperial - Heavy Duty
Springs -> Die -> Imperial -> Heavy DutyThere are 69 products in the sub-categories of Springs - Die - Imperial - Heavy Duty. Scroll down or follow the link to Springs - Die - Imperial - Heavy Duty in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Springs - Die - Imperial - Heavy Duty - Chrome Silicon
A selection of Chrome Silicon Heavy Duty Imperial Die Springs. Colour coded...
Springs - Die - Imperial - Heavy Duty - Standard
A selection of Standard Heavy Duty Imperial Die Springs. Colour coded gold....
Category Details
This category includes various types of die springs.
- Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
- Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
- Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Springs - Die - Imperial - Heavy Duty category on the Small Parts & Bearings online store.
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection | Optimum Deflection | Load at Optimal |

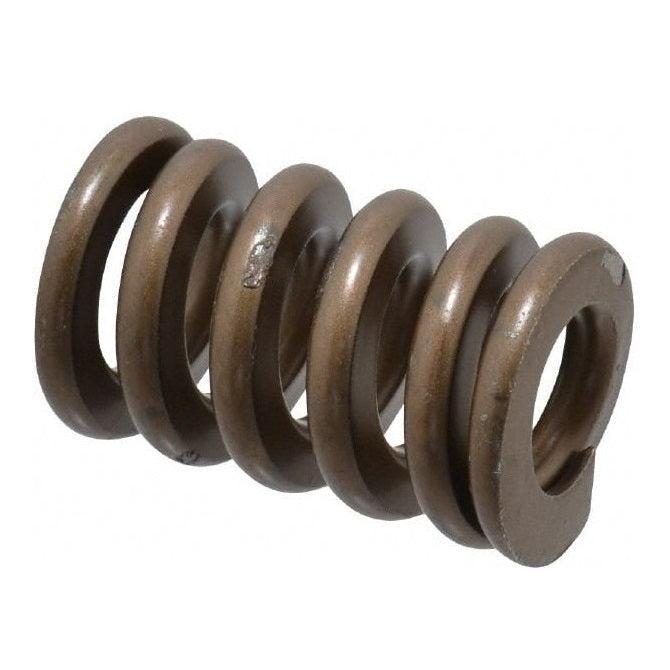

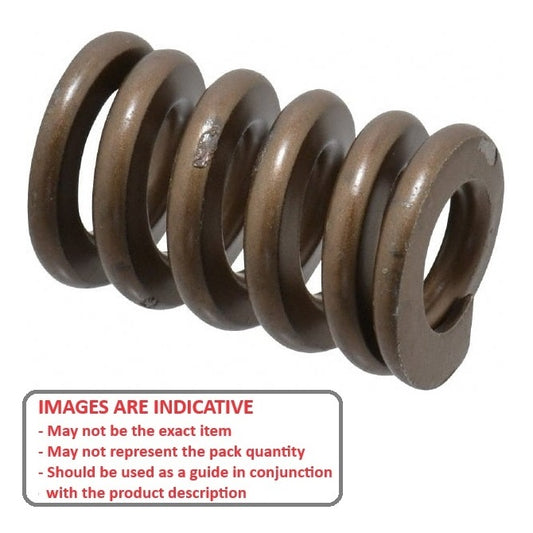

Indicative Image |
|---|---|---|---|---|---|---|
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
77.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 129.9 N
Spring Rate: 20.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-025-HD
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Thu, Sep 18, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
|
||||||
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection |
Indicative Image |
||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 77.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 129.9 N
Spring Rate: 20.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-025-HD
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Thu, Sep 18, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
77.1
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 129.9 N
Spring Rate: 20.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-025-HDS
Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 3.8 mm
Load at Optimal: 77.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 129.9 N
Spring Rate: 20.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-025-HDS
Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
79.8
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 133.0 N
Spring Rate: 14.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-038-HDS
Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$14.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 5.7 mm
Load at Optimal: 79.8 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 133.0 N
Spring Rate: 14.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-038-HDS
Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$14.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
79.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 133.0 N
Spring Rate: 14.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-038-HD
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 5.7 mm
Load at Optimal: 79.8 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 133.0 N
Spring Rate: 14.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-038-HD
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
82.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Load at Maximum: 138.4 N
Spring Rate: 10.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-051-HD
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 7.6 mm
Load at Optimal: 82.8 N
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Load at Maximum: 138.4 N
Spring Rate: 10.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-051-HD
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
83.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Load at Maximum: 139.9 N
Spring Rate: 8.8 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-064-HD
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025 Regular price
$13.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 83.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Load at Maximum: 139.9 N
Spring Rate: 8.8 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-064-HD
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025 Regular price
$13.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
83.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Load at Maximum: 139.9 N
Spring Rate: 8.8 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-064-HDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$20.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 9.5 mm
Load at Optimal: 83.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Load at Maximum: 139.9 N
Spring Rate: 8.8 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-064-HDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$20.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
11.4
mm |
Load at Optimal
82.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Load at Maximum: 137.5 N
Spring Rate: 7.2 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-076-HD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.4 mm
Load at Optimal: 82.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Load at Maximum: 137.5 N
Spring Rate: 7.2 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-095-076-HD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
11.4
mm |
Load at Optimal
82.1
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Load at Maximum: 137.5 N
Spring Rate: 7.2 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-076-HDS
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$23.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 11.4 mm
Load at Optimal: 82.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Load at Maximum: 137.5 N
Spring Rate: 7.2 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-076-HDS
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$23.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
149.7
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 252.2 N
Spring Rate: 39.4 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-025-HD
Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$10.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 149.7 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 252.2 N
Spring Rate: 39.4 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-025-HD
Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$10.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
31.750
mm (Equiv. 1.25 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
4.8
mm |
Load at Optimal
153.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 7.9 mm
Load at Maximum: 252.0 N
Spring Rate: 31.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-032-HD
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
31.750
mm (Equiv. 1.25 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 4.8 mm
Load at Optimal: 153.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 7.9 mm
Load at Maximum: 252.0 N
Spring Rate: 31.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-032-HD
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
147.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 246.1 N
Spring Rate: 25.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-038-HD
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 5.7 mm
Load at Optimal: 147.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 246.1 N
Spring Rate: 25.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-038-HD
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
147.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 246.1 N
Spring Rate: 25.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-127-038-HDS
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Thu, Sep 18, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 5.7 mm
Load at Optimal: 147.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 246.1 N
Spring Rate: 25.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-127-038-HDS
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Thu, Sep 18, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
6.7
mm |
Load at Optimal
148.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 11.1 mm
Load at Maximum: 245.3 N
Spring Rate: 22.1 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-044-HD
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.7 mm
Load at Optimal: 148.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 11.1 mm
Load at Maximum: 245.3 N
Spring Rate: 22.1 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-044-HD
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
146.7
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Load at Maximum: 245.1 N
Spring Rate: 19.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-051-HD
Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 7.6 mm
Load at Optimal: 146.7 N
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Load at Maximum: 245.1 N
Spring Rate: 19.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-127-051-HD
Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
88.900
mm (Equiv. 3.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
13.3
mm |
Load at Optimal
139.7
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 22.2 mm
Load at Maximum: 233.1 N
Spring Rate: 10.5 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-127-089-HDS
Die Springs - 12.7x7.144x88.9 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$23.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
88.900
mm (Equiv. 3.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 13.3 mm
Load at Optimal: 139.7 N
Maximum Deflection: 25 Percent
Maximum Deflection: 22.2 mm
Load at Maximum: 233.1 N
Spring Rate: 10.5 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-127-089-HDS
Die Springs - 12.7x7.144x88.9 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$23.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
282.3
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 475.5 N
Spring Rate: 74.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-025-HDS
Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 3.8 mm
Load at Optimal: 282.3 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 475.5 N
Spring Rate: 74.3 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-025-HDS
Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
282.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 474.9 N
Spring Rate: 74.2 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-025-HD
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 282.0 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Load at Maximum: 474.9 N
Spring Rate: 74.2 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-025-HD
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
31.750
mm (Equiv. 1.25 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
4.8
mm |
Load at Optimal
273.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 7.9 mm
Load at Maximum: 449.5 N
Spring Rate: 56.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-032-HD
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
31.750
mm (Equiv. 1.25 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 4.8 mm
Load at Optimal: 273.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 7.9 mm
Load at Maximum: 449.5 N
Spring Rate: 56.9 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-032-HD
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
279.3
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 465.5 N
Spring Rate: 49.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-038-HD
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 5.7 mm
Load at Optimal: 279.3 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 465.5 N
Spring Rate: 49.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-038-HD
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
279.9
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 466.5 N
Spring Rate: 49.1 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-038-HDS
Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$18.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 5.7 mm
Load at Optimal: 279.9 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Load at Maximum: 466.5 N
Spring Rate: 49.1 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-038-HDS
Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$18.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
6.7
mm |
Load at Optimal
282.1
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 11.1 mm
Load at Maximum: 467.3 N
Spring Rate: 42.1 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-044-HDS
Die Springs - 15.88x8.731x44.45 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$21.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 6.7 mm
Load at Optimal: 282.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 11.1 mm
Load at Maximum: 467.3 N
Spring Rate: 42.1 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-044-HDS
Die Springs - 15.88x8.731x44.45 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$21.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
6.7
mm |
Load at Optimal
281.4
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 11.1 mm
Load at Maximum: 466.2 N
Spring Rate: 42.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-044-HD
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$14.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.7 mm
Load at Optimal: 281.4 N
Maximum Deflection: 25 Percent
Maximum Deflection: 11.1 mm
Load at Maximum: 466.2 N
Spring Rate: 42.0 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Standard |
||||||
|
Part Number: DS-159-044-HD
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$14.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
277.4
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Load at Maximum: 463.6 N
Spring Rate: 36.5 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-051-HDS
Die Springs - 15.88x8.731x50.8 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$21.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
15.88
mm (Equiv. 0.625 in.) |
Rod Diameter (A)
8.731
mm (Equiv. 0.344 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 7.6 mm
Load at Optimal: 277.4 N
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Load at Maximum: 463.6 N
Spring Rate: 36.5 N/mm
Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon |
||||||
|
Part Number: DS-159-051-HDS
Die Springs - 15.88x8.731x50.8 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$21.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
