Springs - Die - Imperial - Heavy Duty - Standard

Springs -> Die -> Imperial -> Heavy Duty -> Standard

There are 38 products in the sub-categories of Springs - Die - Imperial - Heavy Duty - Standard. Scroll down or follow the link to Springs - Die - Imperial - Heavy Duty - Standard in the products table to see all these items combined into a handy table with filters.

Category Details

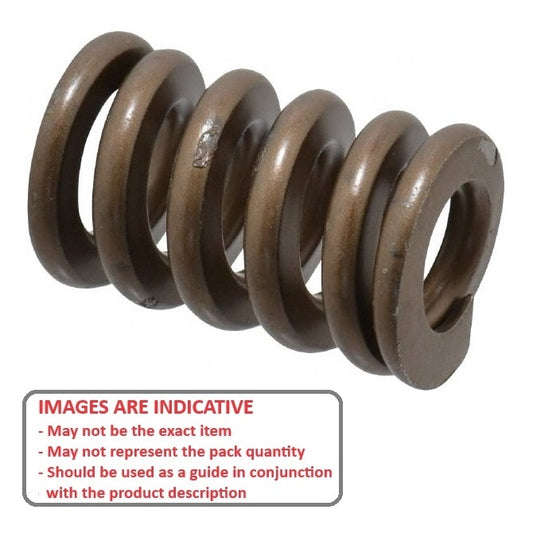

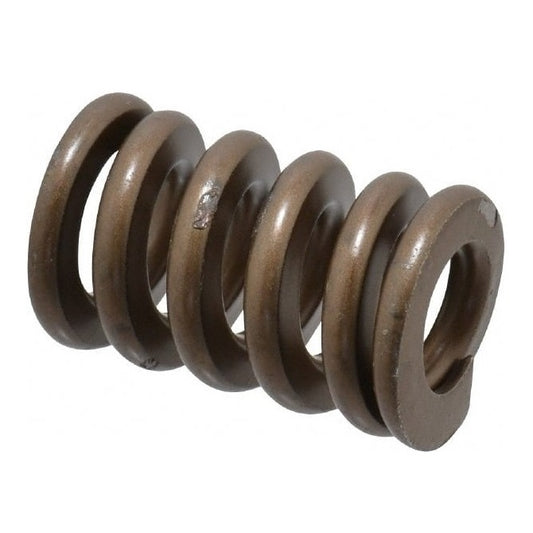

A selection of Standard Heavy Duty Imperial Die Springs. Colour coded gold. Vapor degassed high tensile strength chromium alloy steel.

  • Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
  • Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
  • Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
  • Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.
  • Maximum deflection is 30 percent of the length
  • Efficient operating range is 15 to 25 percent of the length
  • Spring Ends: Squared and ground.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Springs - Die - Imperial - Heavy Duty - Standard category on the Small Parts & Bearings online store.
Hole Diameter (B) Rod Diameter (A) Length (L) Optimum Deflection Optimum Deflection Load at Optimal Indicative
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Optimum Deflection
3.8
mm
Load at Optimal
77.1
N
Die Springs - 9.53x4.763x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 129.9 N    Spring Rate: 20.3 N/mm    Colour Code: Gold
Part Number: DS-095-025-HD
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel
2 Available Now | Further orders can be expected around Thu, Sep 18, 2025
$6.32 AUD
$7.58 AUD $6.32 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Hole Diameter (B) Rod Diameter (A) Length (L) Optimum Deflection Indicative
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 3.8 mm    Load at Optimal: 77.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 129.9 N    Spring Rate: 20.3 N/mm    Colour Code: Gold
Part Number: DS-095-025-HD
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel
2 Available Now | Further orders can be expected around Thu, Sep 18, 2025
$6.32 AUD
$7.58 AUD $6.32 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
79.8
N
Die Springs - 9.53x4.763x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 133.0 N    Spring Rate: 14.0 N/mm    Colour Code: Gold
Part Number: DS-095-038-HD
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$8.50 AUD
$10.20 AUD $8.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 5.7 mm    Load at Optimal: 79.8 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 133.0 N    Spring Rate: 14.0 N/mm    Colour Code: Gold
Part Number: DS-095-038-HD
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$8.50 AUD
$10.20 AUD $8.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
82.8
N
Die Springs - 9.53x4.763x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 138.4 N    Spring Rate: 10.9 N/mm    Colour Code: Gold
Part Number: DS-095-051-HD
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.77 AUD
$15.33 AUD $12.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 7.6 mm    Load at Optimal: 82.8 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 138.4 N    Spring Rate: 10.9 N/mm    Colour Code: Gold
Part Number: DS-095-051-HD
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.77 AUD
$15.33 AUD $12.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
63.500
mm

(Equiv. 2.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
9.5
mm
Load at Optimal
83.6
N
Die Springs - 9.53x4.763x63.5 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 139.9 N    Spring Rate: 8.8 N/mm    Colour Code: Gold
Part Number: DS-095-064-HD
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$13.68 AUD
$16.42 AUD $13.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
63.500
mm

(Equiv. 2.5 in.)
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x63.5 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 9.5 mm    Load at Optimal: 83.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 139.9 N    Spring Rate: 8.8 N/mm    Colour Code: Gold
Part Number: DS-095-064-HD
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$13.68 AUD
$16.42 AUD $13.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
76.200
mm

(Equiv. 3 in.)
Optimum Deflection
15
Percent
Optimum Deflection
11.4
mm
Load at Optimal
82.1
N
Die Springs - 9.53x4.763x76.2 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 137.5 N    Spring Rate: 7.2 N/mm    Colour Code: Gold
Part Number: DS-095-076-HD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$15.59 AUD
$18.71 AUD $15.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
9.53
mm

(Equiv. 0.375 in.)
Rod Diameter (A)
4.763
mm

(Equiv. 0.188 in.)
Length (L)
76.200
mm

(Equiv. 3 in.)
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x76.2 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 11.4 mm    Load at Optimal: 82.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 137.5 N    Spring Rate: 7.2 N/mm    Colour Code: Gold
Part Number: DS-095-076-HD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$15.59 AUD
$18.71 AUD $15.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Optimum Deflection
3.8
mm
Load at Optimal
149.7
N
Die Springs - 12.7x7.144x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 252.2 N    Spring Rate: 39.4 N/mm    Colour Code: Gold
Part Number: DS-127-025-HD
Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$10.77 AUD
$12.93 AUD $10.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 3.8 mm    Load at Optimal: 149.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 252.2 N    Spring Rate: 39.4 N/mm    Colour Code: Gold
Part Number: DS-127-025-HD
Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$10.77 AUD
$12.93 AUD $10.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
31.750
mm

(Equiv. 1.25 in.)
Optimum Deflection
15
Percent
Optimum Deflection
4.8
mm
Load at Optimal
153.1
N
Die Springs - 12.7x7.144x31.75 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 7.9 mm    Load at Maximum: 252.0 N    Spring Rate: 31.9 N/mm    Colour Code: Gold
Part Number: DS-127-032-HD
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.86 AUD
$15.44 AUD $12.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
31.750
mm

(Equiv. 1.25 in.)
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x31.75 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 4.8 mm    Load at Optimal: 153.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 7.9 mm    Load at Maximum: 252.0 N    Spring Rate: 31.9 N/mm    Colour Code: Gold
Part Number: DS-127-032-HD
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.86 AUD
$15.44 AUD $12.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
147.6
N
Die Springs - 12.7x7.144x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 246.1 N    Spring Rate: 25.9 N/mm    Colour Code: Gold
Part Number: DS-127-038-HD
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$11.32 AUD
$13.58 AUD $11.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 5.7 mm    Load at Optimal: 147.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 246.1 N    Spring Rate: 25.9 N/mm    Colour Code: Gold
Part Number: DS-127-038-HD
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$11.32 AUD
$13.58 AUD $11.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Optimum Deflection
6.7
mm
Load at Optimal
148.1
N
Die Springs - 12.7x7.144x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 245.3 N    Spring Rate: 22.1 N/mm    Colour Code: Gold
Part Number: DS-127-044-HD
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$13.23 AUD
$15.87 AUD $13.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 6.7 mm    Load at Optimal: 148.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 245.3 N    Spring Rate: 22.1 N/mm    Colour Code: Gold
Part Number: DS-127-044-HD
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$13.23 AUD
$15.87 AUD $13.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
146.7
N
Die Springs - 12.7x7.144x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 245.1 N    Spring Rate: 19.3 N/mm    Colour Code: Gold
Part Number: DS-127-051-HD
Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
12.70
mm

(Equiv. 0.5 in.)
Rod Diameter (A)
7.144
mm

(Equiv. 0.281 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 7.6 mm    Load at Optimal: 146.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 245.1 N    Spring Rate: 19.3 N/mm    Colour Code: Gold
Part Number: DS-127-051-HD
Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Optimum Deflection
3.8
mm
Load at Optimal
282.0
N
Die Springs - 15.88x8.731x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 474.9 N    Spring Rate: 74.2 N/mm    Colour Code: Gold
Part Number: DS-159-025-HD
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.14 AUD
$14.56 AUD $12.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 3.8 mm    Load at Optimal: 282.0 N    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 474.9 N    Spring Rate: 74.2 N/mm    Colour Code: Gold
Part Number: DS-159-025-HD
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.14 AUD
$14.56 AUD $12.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
31.750
mm

(Equiv. 1.25 in.)
Optimum Deflection
15
Percent
Optimum Deflection
4.8
mm
Load at Optimal
273.1
N
Die Springs - 15.88x8.731x31.75 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 7.9 mm    Load at Maximum: 449.5 N    Spring Rate: 56.9 N/mm    Colour Code: Gold
Part Number: DS-159-032-HD
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.68 AUD
$15.22 AUD $12.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
31.750
mm

(Equiv. 1.25 in.)
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x31.75 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 4.8 mm    Load at Optimal: 273.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 7.9 mm    Load at Maximum: 449.5 N    Spring Rate: 56.9 N/mm    Colour Code: Gold
Part Number: DS-159-032-HD
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$12.68 AUD
$15.22 AUD $12.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
279.3
N
Die Springs - 15.88x8.731x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 465.5 N    Spring Rate: 49.0 N/mm    Colour Code: Gold
Part Number: DS-159-038-HD
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 5.7 mm    Load at Optimal: 279.3 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 465.5 N    Spring Rate: 49.0 N/mm    Colour Code: Gold
Part Number: DS-159-038-HD
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Optimum Deflection
6.7
mm
Load at Optimal
281.4
N
Die Springs - 15.88x8.731x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 466.2 N    Spring Rate: 42.0 N/mm    Colour Code: Gold
Part Number: DS-159-044-HD
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$14.50 AUD
$17.40 AUD $14.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 6.7 mm    Load at Optimal: 281.4 N    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 466.2 N    Spring Rate: 42.0 N/mm    Colour Code: Gold
Part Number: DS-159-044-HD
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$14.50 AUD
$17.40 AUD $14.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
276.6
N
Die Springs - 15.88x8.731x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 462.3 N    Spring Rate: 36.4 N/mm    Colour Code: Gold
Part Number: DS-159-051-HD
Die Springs - 15.88x8.731x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$16.41 AUD
$19.69 AUD $16.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 7.6 mm    Load at Optimal: 276.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 462.3 N    Spring Rate: 36.4 N/mm    Colour Code: Gold
Part Number: DS-159-051-HD
Die Springs - 15.88x8.731x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$16.41 AUD
$19.69 AUD $16.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
63.500
mm

(Equiv. 2.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
9.5
mm
Load at Optimal
283.1
N
Die Springs - 15.88x8.731x63.5 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 473.8 N    Spring Rate: 29.8 N/mm    Colour Code: Gold
Part Number: DS-159-064-HD
Die Springs - 15.88x8.731x63.5 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$17.95 AUD
$21.55 AUD $17.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
15.88
mm

(Equiv. 0.625 in.)
Rod Diameter (A)
8.731
mm

(Equiv. 0.344 in.)
Length (L)
63.500
mm

(Equiv. 2.5 in.)
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x63.5 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 9.5 mm    Load at Optimal: 283.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 473.8 N    Spring Rate: 29.8 N/mm    Colour Code: Gold
Part Number: DS-159-064-HD
Die Springs - 15.88x8.731x63.5 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$17.95 AUD
$21.55 AUD $17.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Optimum Deflection
3.8
mm
Load at Optimal
718.6
N
Die Springs - 19.05x9.525x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 1210.2 N    Spring Rate: 189.1 N/mm    Colour Code: Gold
Part Number: DS-191-025-HD
Die Springs - 19.05x9.525x25.4 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$16.41 AUD
$19.69 AUD $16.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 3.8 mm    Load at Optimal: 718.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 1210.2 N    Spring Rate: 189.1 N/mm    Colour Code: Gold
Part Number: DS-191-025-HD
Die Springs - 19.05x9.525x25.4 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$16.41 AUD
$19.69 AUD $16.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
31.750
mm

(Equiv. 1.25 in.)
Optimum Deflection
15
Percent
Optimum Deflection
4.8
mm
Load at Optimal
739.7
N
Die Springs - 19.05x9.525x31.75 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 7.9 mm    Load at Maximum: 1217.4 N    Spring Rate: 154.1 N/mm    Colour Code: Gold
Part Number: DS-191-032-HD
Die Springs - 19.05x9.525x31.75 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$18.50 AUD
$22.20 AUD $18.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
31.750
mm

(Equiv. 1.25 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x31.75 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 4.8 mm    Load at Optimal: 739.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 7.9 mm    Load at Maximum: 1217.4 N    Spring Rate: 154.1 N/mm    Colour Code: Gold
Part Number: DS-191-032-HD
Die Springs - 19.05x9.525x31.75 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$18.50 AUD
$22.20 AUD $18.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
688.6
N
Die Springs - 19.05x9.525x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 1147.6 N    Spring Rate: 120.8 N/mm    Colour Code: Gold
Part Number: DS-191-038-HD
Die Springs - 19.05x9.525x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$19.23 AUD
$23.07 AUD $19.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x38.1 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 5.7 mm    Load at Optimal: 688.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 1147.6 N    Spring Rate: 120.8 N/mm    Colour Code: Gold
Part Number: DS-191-038-HD
Die Springs - 19.05x9.525x38.1 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$19.23 AUD
$23.07 AUD $19.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Optimum Deflection
6.7
mm
Load at Optimal
704.2
N
Die Springs - 19.05x9.525x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 1166.6 N    Spring Rate: 105.1 N/mm    Colour Code: Gold
Part Number: DS-191-044-HD
Die Springs - 19.05x9.525x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$20.68 AUD
$24.82 AUD $20.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 6.7 mm    Load at Optimal: 704.2 N    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 1166.6 N    Spring Rate: 105.1 N/mm    Colour Code: Gold
Part Number: DS-191-044-HD
Die Springs - 19.05x9.525x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$20.68 AUD
$24.82 AUD $20.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
685.5
N
Die Springs - 19.05x9.525x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 1145.5 N    Spring Rate: 90.2 N/mm    Colour Code: Gold
Part Number: DS-191-051-HD
Die Springs - 19.05x9.525x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$22.50 AUD
$27.00 AUD $22.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x50.8 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 7.6 mm    Load at Optimal: 685.5 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 1145.5 N    Spring Rate: 90.2 N/mm    Colour Code: Gold
Part Number: DS-191-051-HD
Die Springs - 19.05x9.525x50.8 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$22.50 AUD
$27.00 AUD $22.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
63.500
mm

(Equiv. 2.5 in.)
Optimum Deflection
15
Percent
Optimum Deflection
9.5
mm
Load at Optimal
665.0
N
Die Springs - 19.05x9.525x63.5 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 1113.0 N    Spring Rate: 70.0 N/mm    Colour Code: Gold
Part Number: DS-191-064-HD
Die Springs - 19.05x9.525x63.5 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$28.23 AUD
$33.87 AUD $28.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
63.500
mm

(Equiv. 2.5 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x63.5 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 9.5 mm    Load at Optimal: 665.0 N    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 1113.0 N    Spring Rate: 70.0 N/mm    Colour Code: Gold
Part Number: DS-191-064-HD
Die Springs - 19.05x9.525x63.5 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$28.23 AUD
$33.87 AUD $28.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
76.200
mm

(Equiv. 3 in.)
Optimum Deflection
15
Percent
Optimum Deflection
11.4
mm
Load at Optimal
658.9
N
Die Springs - 19.05x9.525x76.2 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 1104.0 N    Spring Rate: 57.8 N/mm    Colour Code: Gold
Part Number: DS-191-076-HD
Die Springs - 19.05x9.525x76.2 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$25.86 AUD
$31.04 AUD $25.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
19.05
mm

(Equiv. 0.75 in.)
Rod Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Length (L)
76.200
mm

(Equiv. 3 in.)
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x76.2 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 11.4 mm    Load at Optimal: 658.9 N    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 1104.0 N    Spring Rate: 57.8 N/mm    Colour Code: Gold
Part Number: DS-191-076-HD
Die Springs - 19.05x9.525x76.2 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$25.86 AUD
$31.04 AUD $25.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
25.40
mm

(Equiv. 1 in.)
Rod Diameter (A)
12.700
mm

(Equiv. 0.5 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Optimum Deflection
6.7
mm
Load at Optimal
1220.1
N
Die Springs - 25.4x12.7x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 2021.3 N    Spring Rate: 182.1 N/mm    Colour Code: Gold
Part Number: DS-254-044-HD
Die Springs - 25.4x12.7x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$27.59 AUD
$33.11 AUD $27.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B)
25.40
mm

(Equiv. 1 in.)
Rod Diameter (A)
12.700
mm

(Equiv. 0.5 in.)
Length (L)
44.450
mm

(Equiv. 1.75 in.)
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Optimum Deflection: 6.7 mm    Load at Optimal: 1220.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 2021.3 N    Spring Rate: 182.1 N/mm    Colour Code: Gold
Part Number: DS-254-044-HD
Die Springs - 25.4x12.7x44.45 mm Imperial - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$27.59 AUD
$33.11 AUD $27.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
