| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

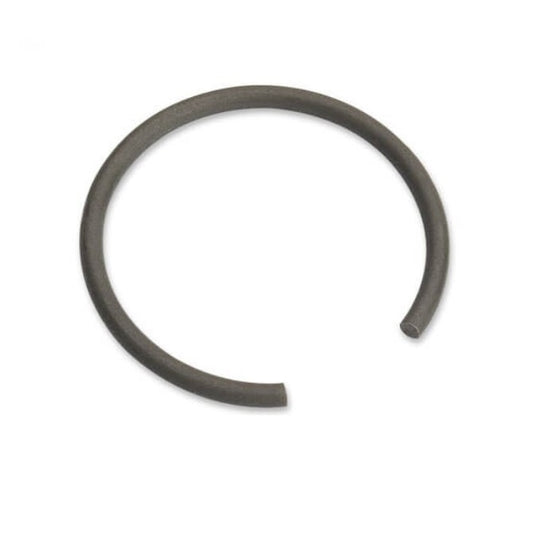

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.8
mm + 0.08 / - 0.04 (Equiv. 0.071 in.) |
Groove Dia. (Dg)
27.10
mm Min. (Equiv. 1.067 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm |
Groove Width (W)
1.90
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 24.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0250A-RD
Internal Retaining Rings - 25x1.8x27.1 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.8
mm + 0.08 / - 0.04 (Equiv. 0.071 in.) |
Groove Dia. (Dg)
27.10
mm Min. (Equiv. 1.067 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.90 mm + 0.08 / - 0.00
Clearance in Bore (C): 24.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0250A-RD
Internal Retaining Rings - 25x1.8x27.1 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
2.0
mm B DIN 2076 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
27.00
mm + 0.5 / - 0.0 (Equiv. 1.063 in.) |
Approx. Loose Circlip OD (Dr)
27.30
mm |
Groove Width (W)
2.20
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 23.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0250-RD
Internal Retaining Rings - 25x2x27 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
2.0
mm B DIN 2076 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
27.00
mm + 0.5 / - 0.0 (Equiv. 1.063 in.) |
Approx. Loose Circlip OD (Dr)
27.30
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 2.20 mm
Clearance in Bore (C): 23.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0250-RD
Internal Retaining Rings - 25x2x27 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 22.7 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-100-S02
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 80 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$4.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Clearance in Groove (C1): 22.7 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-100-S02
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 80 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$4.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 22.7 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-100 (2 Pcs)
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring 106 units (212 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Clearance in Groove (C1): 22.7 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-100 (2 Pcs)
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring 106 units (212 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.02
mm + 0.08 / - 0.00 (Equiv. 0.04 in.) |
Groove Dia. (Dg)
27.33
mm +/- 0.05 (Equiv. 1.076 in.) |
Approx. Loose Circlip OD (Dr)
27.97
mm + 0.63 / - 0.00 |
Radial Wall (S)
1.32 - 2.64
mm |
Groove Width (W)
0.91
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-02540-C
Internal Retaining Rings - 25.4x1.02x27.33 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.02
mm + 0.08 / - 0.00 (Equiv. 0.04 in.) |
Groove Dia. (Dg)
27.33
mm +/- 0.05 (Equiv. 1.076 in.) |
Approx. Loose Circlip OD (Dr)
27.97
mm + 0.63 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.32 - 2.64 mm
Groove Width (W): 0.91 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-02540-C
Internal Retaining Rings - 25.4x1.02x27.33 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
26.72
mm +/- 0.08 (Equiv. 1.052 in.) |
Approx. Loose Circlip OD (Dr)
27.18
mm + 0.79 / - 0.00 |
Radial Wall (S)
1.98
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 23.22 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0254-LS-O
Internal Retaining Rings - 25.4x1.07x26.72 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
26.72
mm +/- 0.08 (Equiv. 1.052 in.) |
Approx. Loose Circlip OD (Dr)
27.18
mm + 0.79 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.98 mm +/- 0.08
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 23.22 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0254-LS-O
Internal Retaining Rings - 25.4x1.07x26.72 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S)
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 22.78 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-100-S02 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Clearance in Groove (C1): 22.78 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-100-S02 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 17.27 mm
Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-C (10 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip 10 units (100 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$3.86 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.27 mm
Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-C (10 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip 10 units (100 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$3.86 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 17.27 mm
Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-S15
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.27 mm
Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-S15
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 17.27 mm
Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-CZY (50 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$25.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.27 mm
Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-CZY (50 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$25.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.052 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm |
Radial Wall (S)
1.37 - 2.87
mm |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-C-V (50 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$32.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.052 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 1.37 - 2.87 mm
Groove Width (W): 1.17 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02540-C-V (50 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$32.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S)
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 22.78 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-100 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$5.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Clearance in Groove (C1): 22.78 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-100 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$5.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.12
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 23.3 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-102
Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.12
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Clearance in Groove (C1): 23.3 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-102
Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.02
mm + 0.08 / - 0.00 (Equiv. 0.04 in.) |
Groove Dia. (Dg)
27.97
mm +/- 0.05 (Equiv. 1.101 in.) |
Approx. Loose Circlip OD (Dr)
28.60
mm + 0.63 / - 0.00 |
Radial Wall (S)
1.37 - 2.69
mm |
Groove Width (W)
0.91
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-02598-C (5 Pcs)
Internal Retaining Rings - 25.98x1.02x27.97 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.02
mm + 0.08 / - 0.00 (Equiv. 0.04 in.) |
Groove Dia. (Dg)
27.97
mm +/- 0.05 (Equiv. 1.101 in.) |
Approx. Loose Circlip OD (Dr)
28.60
mm + 0.63 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 1.37 - 2.69 mm
Groove Width (W): 0.91 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-02598-C (5 Pcs)
Internal Retaining Rings - 25.98x1.02x27.97 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.31
mm +/- 0.13 (Equiv. 1.075 in.) |
Approx. Loose Circlip OD (Dr)
27.79
mm + 0.79 / - 0.00 |
Radial Wall (S)
2.36
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 23.07 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0260-LS-O
Internal Retaining Rings - 25.98x1.07x27.31 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.31
mm +/- 0.13 (Equiv. 1.075 in.) |
Approx. Loose Circlip OD (Dr)
27.79
mm + 0.79 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.36 mm +/- 0.08
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 23.07 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0260-LS-O
Internal Retaining Rings - 25.98x1.07x27.31 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 17.78 mm
Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02598-S15 (3 Pcs)
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$7.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.78 mm
Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02598-S15 (3 Pcs)
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$7.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 17.78 mm
Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02598-C (50 Pcs)
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.78 mm
Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02598-C (50 Pcs)
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.72
mm (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
27.72
mm + 0.33 / - 0.00 |
Radial Wall (S)
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 23.4 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-102-S02 (2 Pcs)
Internal Retaining Rings - 25.98x1.07x27.72 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 5 units (10 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.72
mm (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
27.72
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Clearance in Groove (C1): 23.4 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-102-S02 (2 Pcs)
Internal Retaining Rings - 25.98x1.07x27.72 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 5 units (10 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 17.78 mm
Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02598-CZY (500 Pcs)
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$218.59 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.78 mm
Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02598-CZY (500 Pcs)
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$218.59 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 16.10 mm
Clearance in Groove (C1): 17.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600-C (20 Pcs)
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.30 mm + 0.08 / - 0.00
Clearance in Bore (C): 16.10 mm
Clearance in Groove (C1): 17.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600-C (20 Pcs)
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 16.10 mm
Clearance in Groove (C1): 17.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600-S15 (3 Pcs)
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.30 mm + 0.08 / - 0.00
Clearance in Bore (C): 16.10 mm
Clearance in Groove (C1): 17.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600-S15 (3 Pcs)
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Radial Wall (S)
2.9 - 3.0
mm |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600-C-V (250 Pcs)
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$151.41 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.9 - 3.0 mm
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600-C-V (250 Pcs)
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$151.41 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.41
mm + 0.00 / - 0.06 (Equiv. 1.079 in.) |
Approx. Loose Circlip OD (Dr)
28.29 - 28.92
mm |
Radial Wall (S)
2.80
mm |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-026
Internal Retaining Rings - 26x1.2x27.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.41
mm + 0.00 / - 0.06 (Equiv. 1.079 in.) |
Approx. Loose Circlip OD (Dr)
28.29 - 28.92
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.80 mm
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-026
Internal Retaining Rings - 26x1.2x27.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.60
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600H-C
Internal Retaining Rings - 26x1.5x27.2 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (Equiv. 1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm + 0.10 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02600H-C
Internal Retaining Rings - 26x1.5x27.2 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
