CCI-02540-C (PK-10)

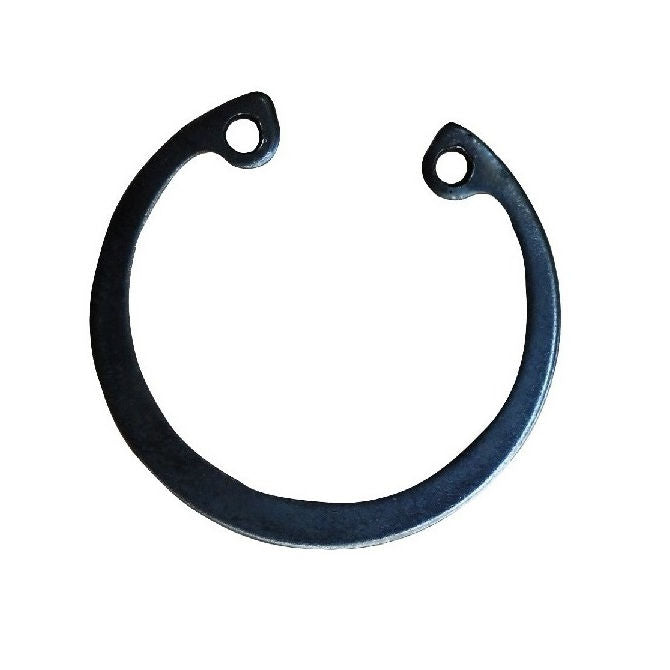

Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$3.68 AUD
$6.94 AUD $3.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
 Qty: 10 packs (100 pcs) available now

Order 50 or more packs of 10 (500 pcs)
for $3.31 AUD per 10 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 19, 2026

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details


Additional stock available from USA subject to Prior Sale = 16046

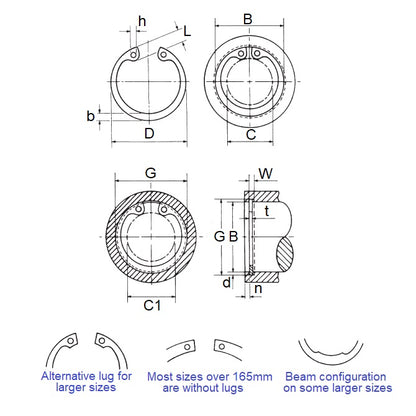

Housing Bore (B): 25.40mm
(25.40mm is 1 in.)

Carbon Steel
  • Housing Bore (B): 25.40mm
    (25.40mm is 1 in.)
  • Clip Thickness (T): 1.07mm
    + 0.00 / - 0.06
    (1.07mm is 0.042 in.)
  • Groove Dia. (Dg): 27.08mm
    +/- 0.075
    (27.08mm is 1.066 in.)
  • Approx. Loose Circlip OD (Dr): 28.22mm
    + 0.38 / - 0.25
  • Groove Width (W): 1.17mm
    + 0.08 / - 0.00
  • Clearance in Bore (C): 17.27mm
  • Clearance in Groove (C1): 18.80mm
  • Min. Lug Diameter (h): 1.52mm
  • Min. Extension (n): 2.51
  • Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 99142A450
  • Huyett® HO-100
  • NoCor® HO-100
  • Seeger® J1X.047IN
  • HO100
  • N13000100
  • N1300-0100
  • A9Q28-100
  • A9Q28100

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
