| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

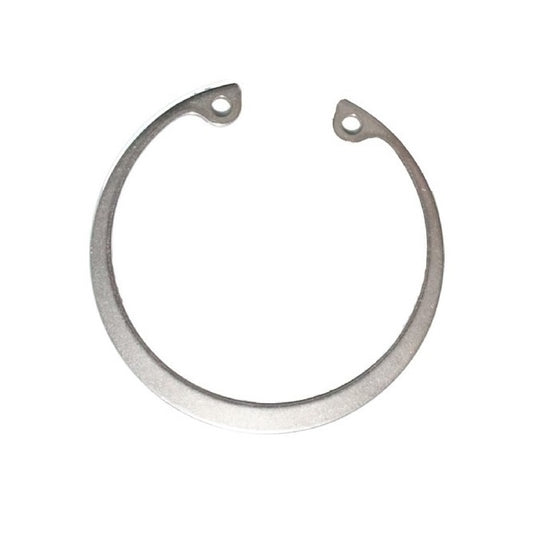

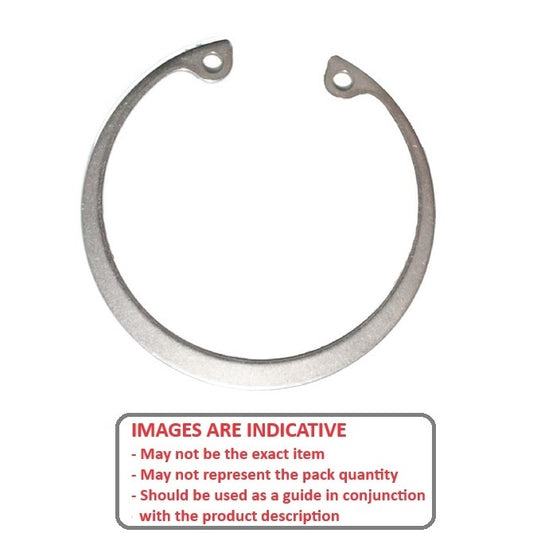

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 36.30 mm Clearance in Groove (C1): 40.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05000-S15 (2 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$32.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 36.30 mm Clearance in Groove (C1): 40.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05000-S15 (2 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$32.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05080-S15
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 27 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$23.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05080-S15
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 27 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$23.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
51.00
mm (Equiv. 2.008 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip OD (Dr)
55.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 37.30 mm Clearance in Groove (C1): 41.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05100-S15
Internal Retaining Rings - 51x2x54 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
51.00
mm (Equiv. 2.008 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip OD (Dr)
55.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 37.30 mm Clearance in Groove (C1): 41.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05100-S15
Internal Retaining Rings - 51x2x54 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 37.90 mm Clearance in Groove (C1): 41.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05200-S15
Internal Retaining Rings - 52x2x55 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 14 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 37.90 mm Clearance in Groove (C1): 41.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05200-S15
Internal Retaining Rings - 52x2x55 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 14 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05239-S15
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$22.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05239-S15
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$22.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
54.00
mm (Equiv. 2.126 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip OD (Dr)
58.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Standard: DIN472 | ||||||
|
Part Number: CCI-05400-S15
Internal Retaining Rings - 54x2x57 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
54.00
mm (Equiv. 2.126 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip OD (Dr)
58.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-05400-S15
Internal Retaining Rings - 54x2x57 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm + 0.00 / - 0.07 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05398-S15
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$28.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm + 0.00 / - 0.07 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05398-S15
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$28.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 40.70 mm Clearance in Groove (C1): 44.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05500-S15 (2 Pcs)
Internal Retaining Rings - 55x2x58 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$14.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 40.70 mm Clearance in Groove (C1): 44.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05500-S15 (2 Pcs)
Internal Retaining Rings - 55x2x58 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$14.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm + 0.00 / - 0.07 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
61.34
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 43.43 mm Clearance in Groove (C1): 46.74 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.95 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05558-S15
Internal Retaining Rings - 55.58x1.98x58.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm + 0.00 / - 0.07 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
61.34
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 43.43 mm Clearance in Groove (C1): 46.74 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.95 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05558-S15
Internal Retaining Rings - 55.58x1.98x58.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
56.00
mm (Equiv. 2.205 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip OD (Dr)
60.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 41.70 mm Clearance in Groove (C1): 45.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05600-S15
Internal Retaining Rings - 56x2x59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
56.00
mm (Equiv. 2.205 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip OD (Dr)
60.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 41.70 mm Clearance in Groove (C1): 45.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05600-S15
Internal Retaining Rings - 56x2x59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
60.00
mm + 0.00 / - 0.07 (Equiv. 2.362 in.) |
Approx. Loose Circlip OD (Dr)
62.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 42.70 mm Clearance in Groove (C1): 46.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05700-S15
Internal Retaining Rings - 57x2x60 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
60.00
mm + 0.00 / - 0.07 (Equiv. 2.362 in.) |
Approx. Loose Circlip OD (Dr)
62.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 42.70 mm Clearance in Groove (C1): 46.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05700-S15
Internal Retaining Rings - 57x2x60 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.50
mm + 0.00 / - 0.07 (Equiv. 2.382 in.) |
Approx. Loose Circlip OD (Dr)
63.25
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 44.96 mm Clearance in Groove (C1): 48.51 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 5.03 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05715-S15
Internal Retaining Rings - 57.15x1.98x60.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.50
mm + 0.00 / - 0.07 (Equiv. 2.382 in.) |
Approx. Loose Circlip OD (Dr)
63.25
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 44.96 mm Clearance in Groove (C1): 48.51 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 5.03 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05715-S15
Internal Retaining Rings - 57.15x1.98x60.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
58.00
mm (Equiv. 2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
61.00
mm + 0.00 / - 0.07 (Equiv. 2.402 in.) |
Approx. Loose Circlip OD (Dr)
62.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 43.50 mm Clearance in Groove (C1): 47.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05800-S15
Internal Retaining Rings - 58x2x61 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 7 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$14.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
58.00
mm (Equiv. 2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
61.00
mm + 0.00 / - 0.07 (Equiv. 2.402 in.) |
Approx. Loose Circlip OD (Dr)
62.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 43.50 mm Clearance in Groove (C1): 47.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-05800-S15
Internal Retaining Rings - 58x2x61 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 7 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$14.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 46.74 mm Clearance in Groove (C1): 50.29 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 5.26 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05874-S15
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 24, 2025 Regular price
$24.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 46.74 mm Clearance in Groove (C1): 50.29 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 5.26 Standard: MIL-16625 | ||||||
|
Part Number: CCI-05874-S15
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 24, 2025 Regular price
$24.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 44.70 mm Clearance in Groove (C1): 48.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06000-S15
Internal Retaining Rings - 60x2x63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 44.70 mm Clearance in Groove (C1): 48.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06000-S15
Internal Retaining Rings - 60x2x63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 48.26 mm Clearance in Groove (C1): 51.82 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 5.41 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06033-S15
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 48.26 mm Clearance in Groove (C1): 51.82 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 5.41 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06033-S15
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
61.98
mm (Equiv. 2.44 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
65.63
mm + 0.00 / - 0.07 (Equiv. 2.584 in.) |
Approx. Loose Circlip OD (Dr)
68.63
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 49.78 mm Clearance in Groove (C1): 53.59 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.49 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06198-S15
Internal Retaining Rings - 61.98x1.98x65.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
61.98
mm (Equiv. 2.44 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
65.63
mm + 0.00 / - 0.07 (Equiv. 2.584 in.) |
Approx. Loose Circlip OD (Dr)
68.63
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 49.78 mm Clearance in Groove (C1): 53.59 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.49 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06198-S15
Internal Retaining Rings - 61.98x1.98x65.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
62.00
mm (Equiv. 2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
65.00
mm + 0.00 / - 0.07 (Equiv. 2.559 in.) |
Approx. Loose Circlip OD (Dr)
66.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 46.70 mm Clearance in Groove (C1): 50.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06200-S15
Internal Retaining Rings - 62x2x65 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 7 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$12.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
62.00
mm (Equiv. 2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
65.00
mm + 0.00 / - 0.07 (Equiv. 2.559 in.) |
Approx. Loose Circlip OD (Dr)
66.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 46.70 mm Clearance in Groove (C1): 50.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06200-S15
Internal Retaining Rings - 62x2x65 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 7 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$12.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
63.00
mm (Equiv. 2.48 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
66.00
mm + 0.00 / - 0.07 (Equiv. 2.598 in.) |
Approx. Loose Circlip OD (Dr)
67.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 47.70 mm Clearance in Groove (C1): 51.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06300-S15
Internal Retaining Rings - 63x2x66 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.00
mm (Equiv. 2.48 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
66.00
mm + 0.00 / - 0.07 (Equiv. 2.598 in.) |
Approx. Loose Circlip OD (Dr)
67.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 47.70 mm Clearance in Groove (C1): 51.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06300-S15
Internal Retaining Rings - 63x2x66 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
67.26
mm + 0.00 / - 0.07 (Equiv. 2.648 in.) |
Approx. Loose Circlip OD (Dr)
70.49
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 51.31 mm Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.64 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06350-S15
Internal Retaining Rings - 63.5x1.98x67.26 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
67.26
mm + 0.00 / - 0.07 (Equiv. 2.648 in.) |
Approx. Loose Circlip OD (Dr)
70.49
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 51.31 mm Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.64 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06350-S15
Internal Retaining Rings - 63.5x1.98x67.26 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
64.00
mm (Equiv. 2.52 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (Equiv. 2.638 in.) |
Approx. Loose Circlip OD (Dr)
68.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 48.70 mm Clearance in Groove (C1): 52.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06400-S15
Internal Retaining Rings - 64x2x67 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.00
mm (Equiv. 2.52 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (Equiv. 2.638 in.) |
Approx. Loose Circlip OD (Dr)
68.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 48.70 mm Clearance in Groove (C1): 52.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06400-S15
Internal Retaining Rings - 64x2x67 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 49.00 mm Clearance in Groove (C1): 52.80 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06500-S15
Internal Retaining Rings - 65x2.5x68 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$21.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 49.00 mm Clearance in Groove (C1): 52.80 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-06500-S15
Internal Retaining Rings - 65x2.5x68 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$21.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 51.31 mm Clearance in Groove (C1): 55.37 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.79 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06507-S15 (50 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,770.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 51.31 mm Clearance in Groove (C1): 55.37 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.79 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06507-S15 (50 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,770.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm + 0.00 / - 0.07 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 52.83 mm Clearance in Groove (C1): 56.90 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.94 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06668-S15
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$33.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm + 0.00 / - 0.07 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 52.83 mm Clearance in Groove (C1): 56.90 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.94 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06668-S15
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$33.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
