Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Retaining Rings -> Internal -> Circlips -> Standard -> Carbon Steel
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
Housing Bore (B)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
68.00
mm
+ 0.00 / - 0.08
(Equiv. 2.677 in.)
Approx. Loose Circlip OD (Dr)
69.20
mm
+ 1.10 / - 0.46
Groove Width (W)
3.15
mm
+ 0.13 / - 0.00

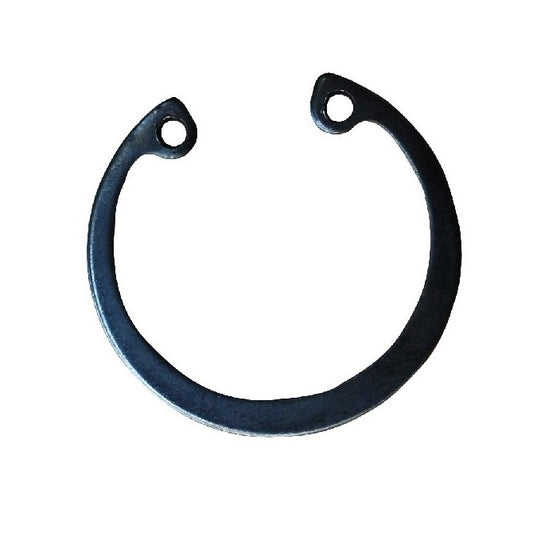

Internal Retaining Rings - 65x3x68 mm - Carbon Steel
Material: Carbon Steel    Standard: DIN472
Part Number: CCI-06500H-C (125 Pcs)
Internal Retaining Rings - 65x3x68 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025
$422.23 AUD
$506.67 AUD $422.23 AUD
Per 125
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
68.00
mm
+ 0.00 / - 0.08
(Equiv. 2.677 in.)
Approx. Loose Circlip OD (Dr)
69.20
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 65x3x68 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-06500H-C (125 Pcs)
Internal Retaining Rings - 65x3x68 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025
$422.23 AUD
$506.67 AUD $422.23 AUD
Per 125
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
65.07
mm

(Equiv. 2.562 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
68.94
mm
+ 0.00 / - 0.07
(Equiv. 2.714 in.)
Approx. Loose Circlip OD (Dr)
72.24
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 65.07x2.36x68.94 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 51.31 mm    Clearance in Groove (C1): 55.37 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.79    Standard: MIL-16625
Part Number: CCI-06507-C (4 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.05 AUD
$12.05 AUD $10.05 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
65.07
mm

(Equiv. 2.562 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
68.94
mm
+ 0.00 / - 0.07
(Equiv. 2.714 in.)
Approx. Loose Circlip OD (Dr)
72.24
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 65.07x2.36x68.94 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 51.31 mm    Clearance in Groove (C1): 55.37 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.79    Standard: MIL-16625
Part Number: CCI-06507-C (4 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.05 AUD
$12.05 AUD $10.05 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
70.64
mm
+ 0.00 / - 0.07
(Equiv. 2.781 in.)
Approx. Loose Circlip OD (Dr)
73.91
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 66.68x2.36x70.64 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 52.83 mm    Clearance in Groove (C1): 56.90 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.94    Standard: MIL-16625
Part Number: CCI-06668-C (4 Pcs)
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$12.68 AUD
$15.22 AUD $12.68 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
70.64
mm
+ 0.00 / - 0.07
(Equiv. 2.781 in.)
Approx. Loose Circlip OD (Dr)
73.91
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 66.68x2.36x70.64 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 52.83 mm    Clearance in Groove (C1): 56.90 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.94    Standard: MIL-16625
Part Number: CCI-06668-C (4 Pcs)
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$12.68 AUD
$15.22 AUD $12.68 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
67.00
mm

(Equiv. 2.638 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
70.00
mm
+ 0.00 / - 0.07
(Equiv. 2.756 in.)
Approx. Loose Circlip OD (Dr)
72.50
mm
+ 1.10 / - 0.46
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 67x2.5x70 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 50.80 mm    Clearance in Groove (C1): 54.60 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-06700-C (2 Pcs)
Internal Retaining Rings - 67x2.5x70 mm Circlips - Carbon Steel Circlip
7 units (14 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025
$3.59 AUD
$6.65 AUD $3.59 AUD
Per 2
Quantity Required

7 units (14 pcs) Available Now. Backorder if more than 7.
Housing Bore (B)
67.00
mm

(Equiv. 2.638 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
70.00
mm
+ 0.00 / - 0.07
(Equiv. 2.756 in.)
Approx. Loose Circlip OD (Dr)
72.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 67x2.5x70 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 50.80 mm    Clearance in Groove (C1): 54.60 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-06700-C (2 Pcs)
Internal Retaining Rings - 67x2.5x70 mm Circlips - Carbon Steel Circlip
7 units (14 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025
$3.59 AUD
$6.65 AUD $3.59 AUD
Per 2
Quantity Required

7 units (14 pcs) Available Now. Backorder if more than 7.
Housing Bore (B)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
71.00
mm
+ 0.00 / - 0.07
(Equiv. 2.795 in.)
Approx. Loose Circlip OD (Dr)
72.50
mm
+ 1.10 / - 0.46
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 68x2.5x71 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 51.60 mm    Clearance in Groove (C1): 55.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-06800-C (2 Pcs)
Internal Retaining Rings - 68x2.5x71 mm Circlips - Carbon Steel Circlip
50 units (100 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$3.95 AUD
$7.26 AUD $3.95 AUD
Per 2
Quantity Required

50 units (100 pcs) Available Now. Backorder if more than 50.
Housing Bore (B)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
71.00
mm
+ 0.00 / - 0.07
(Equiv. 2.795 in.)
Approx. Loose Circlip OD (Dr)
72.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 68x2.5x71 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 51.60 mm    Clearance in Groove (C1): 55.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-06800-C (2 Pcs)
Internal Retaining Rings - 68x2.5x71 mm Circlips - Carbon Steel Circlip
50 units (100 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$3.95 AUD
$7.26 AUD $3.95 AUD
Per 2
Quantity Required

50 units (100 pcs) Available Now. Backorder if more than 50.
Housing Bore (B)
68.26
mm

(Equiv. 2.687 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
72.34
mm
+ 0.00 / - 0.07
(Equiv. 2.848 in.)
Approx. Loose Circlip OD (Dr)
75.69
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 68.26x2.36x72.34 mm - Carbon Steel
Material: Carbon Steel    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.94    Standard: MIL-16625
Part Number: CCI-06826-C (4 Pcs)
Internal Retaining Rings - 68.26x2.36x72.34 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$12.95 AUD
$15.55 AUD $12.95 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
68.26
mm

(Equiv. 2.687 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
72.34
mm
+ 0.00 / - 0.07
(Equiv. 2.848 in.)
Approx. Loose Circlip OD (Dr)
75.69
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 68.26x2.36x72.34 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.94    Standard: MIL-16625
Part Number: CCI-06826-C (4 Pcs)
Internal Retaining Rings - 68.26x2.36x72.34 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$12.95 AUD
$15.55 AUD $12.95 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
74.02
mm
+ 0.00 / - 0.07
(Equiv. 2.914 in.)
Approx. Loose Circlip OD (Dr)
77.47
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 69.85x2.36x74.02 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 55.37 mm    Clearance in Groove (C1): 59.44 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.25    Standard: MIL-16625
Part Number: CCI-06985-C (3 Pcs)
Internal Retaining Rings - 69.85x2.36x74.02 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.32 AUD
$12.38 AUD $10.32 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
74.02
mm
+ 0.00 / - 0.07
(Equiv. 2.914 in.)
Approx. Loose Circlip OD (Dr)
77.47
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 69.85x2.36x74.02 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 55.37 mm    Clearance in Groove (C1): 59.44 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.25    Standard: MIL-16625
Part Number: CCI-06985-C (3 Pcs)
Internal Retaining Rings - 69.85x2.36x74.02 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.32 AUD
$12.38 AUD $10.32 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
73.00
mm
+ 0.00 / - 0.07
(Equiv. 2.874 in.)
Approx. Loose Circlip OD (Dr)
74.50
mm
+ 1.10 / - 0.46
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 70x2.5x73 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 53.60 mm    Clearance in Groove (C1): 57.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07000-C (2 Pcs)
Internal Retaining Rings - 70x2.5x73 mm Circlips - Carbon Steel Circlip
232 units (464 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$4.05 AUD
$7.36 AUD $4.05 AUD
Per 2
Quantity Required

232 units (464 pcs) Available Now. Backorder if more than 232.
Housing Bore (B)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
73.00
mm
+ 0.00 / - 0.07
(Equiv. 2.874 in.)
Approx. Loose Circlip OD (Dr)
74.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 70x2.5x73 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 53.60 mm    Clearance in Groove (C1): 57.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07000-C (2 Pcs)
Internal Retaining Rings - 70x2.5x73 mm Circlips - Carbon Steel Circlip
232 units (464 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$4.05 AUD
$7.36 AUD $4.05 AUD
Per 2
Quantity Required

232 units (464 pcs) Available Now. Backorder if more than 232.
Housing Bore (B)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
73.00
mm
+ 0.00 / - 0.08
(Equiv. 2.874 in.)
Approx. Loose Circlip OD (Dr)
74.50
mm
+ 1.10 / - 0.46
Groove Width (W)
3.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 70x3x73 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN472
Part Number: CCI-07000H-C
Internal Retaining Rings - 70x3x73 mm Circlips - Carbon Spring Steel Self Finish Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
73.00
mm
+ 0.00 / - 0.08
(Equiv. 2.874 in.)
Approx. Loose Circlip OD (Dr)
74.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 70x3x73 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 3.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-07000H-C
Internal Retaining Rings - 70x3x73 mm Circlips - Carbon Spring Steel Self Finish Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
71.42
mm

(Equiv. 2.812 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.69
mm
+ 0.00 / - 0.07
(Equiv. 2.98 in.)
Approx. Loose Circlip OD (Dr)
79.27
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 71.42x2.36x75.69 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 56.90 mm    Clearance in Groove (C1): 60.96 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.40    Standard: MIL-16625
Part Number: CCI-07142-C (3 Pcs)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.32 AUD
$12.38 AUD $10.32 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
71.42
mm

(Equiv. 2.812 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.69
mm
+ 0.00 / - 0.07
(Equiv. 2.98 in.)
Approx. Loose Circlip OD (Dr)
79.27
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 71.42x2.36x75.69 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 56.90 mm    Clearance in Groove (C1): 60.96 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.40    Standard: MIL-16625
Part Number: CCI-07142-C (3 Pcs)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.32 AUD
$12.38 AUD $10.32 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
72.00
mm

(Equiv. 2.835 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
75.00
mm
+ 0.00 / - 0.07
(Equiv. 2.953 in.)
Approx. Loose Circlip OD (Dr)
76.50
mm
+ 1.10 / - 0.46
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 72x2.5x75 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 55.60 mm    Clearance in Groove (C1): 59.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07200-C (2 Pcs)
Internal Retaining Rings - 72x2.5x75 mm Circlips - Carbon Steel Circlip
87 units (174 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$3.95 AUD
$7.25 AUD $3.95 AUD
Per 2
Quantity Required

87 units (174 pcs) Available Now. Backorder if more than 87.
Housing Bore (B)
72.00
mm

(Equiv. 2.835 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
75.00
mm
+ 0.00 / - 0.07
(Equiv. 2.953 in.)
Approx. Loose Circlip OD (Dr)
76.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 72x2.5x75 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 55.60 mm    Clearance in Groove (C1): 59.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07200-C (2 Pcs)
Internal Retaining Rings - 72x2.5x75 mm Circlips - Carbon Steel Circlip
87 units (174 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$3.95 AUD
$7.25 AUD $3.95 AUD
Per 2
Quantity Required

87 units (174 pcs) Available Now. Backorder if more than 87.
Housing Bore (B)
72.00
mm

(Equiv. 2.835 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
75.00
mm
+ 0.00 / - 0.08
(Equiv. 2.953 in.)
Approx. Loose Circlip OD (Dr)
76.50
mm
+ 1.10 / - 0.46
Groove Width (W)
3.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 72x3x75 mm - Carbon Steel
Material: Carbon Steel    Standard: DIN472
Part Number: CCI-07200H-C (3 Pcs)
Internal Retaining Rings - 72x3x75 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$11.50 AUD
$13.80 AUD $11.50 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
72.00
mm

(Equiv. 2.835 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
75.00
mm
+ 0.00 / - 0.08
(Equiv. 2.953 in.)
Approx. Loose Circlip OD (Dr)
76.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 72x3x75 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-07200H-C (3 Pcs)
Internal Retaining Rings - 72x3x75 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$11.50 AUD
$13.80 AUD $11.50 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
77.50
mm
+ 0.00 / - 0.07
(Equiv. 3.051 in.)
Approx. Loose Circlip OD (Dr)
81.05
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 58.42 mm    Clearance in Groove (C1): 62.74 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.71    Standard: MIL-16625
Part Number: CCI-07303-C
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Circlip
10 Available Now | Further orders can be expected around Mon, Sep 22, 2025
$2.95 AUD
$5.27 AUD $2.95 AUD
Each
Quantity Required

10 Available Now. Backorder if more than 10.
Housing Bore (B)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
77.50
mm
+ 0.00 / - 0.07
(Equiv. 3.051 in.)
Approx. Loose Circlip OD (Dr)
81.05
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 58.42 mm    Clearance in Groove (C1): 62.74 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.71    Standard: MIL-16625
Part Number: CCI-07303-C
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Circlip
10 Available Now | Further orders can be expected around Mon, Sep 22, 2025
$2.95 AUD
$5.27 AUD $2.95 AUD
Each
Quantity Required

10 Available Now. Backorder if more than 10.
Housing Bore (B)
75.00
mm

(Equiv. 2.953 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.07
(Equiv. 3.071 in.)
Approx. Loose Circlip OD (Dr)
79.50
mm
+ 1.10 / - 0.46
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 75x2.5x78 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 58.60 mm    Clearance in Groove (C1): 62.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07500-C (2 Pcs)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Circlip
86 units (172 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$8.41 AUD
$8.41 AUD
Per 2
Quantity Required

86 units (172 pcs) Available Now. Backorder if more than 86.
Housing Bore (B)
75.00
mm

(Equiv. 2.953 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.07
(Equiv. 3.071 in.)
Approx. Loose Circlip OD (Dr)
79.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 75x2.5x78 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 58.60 mm    Clearance in Groove (C1): 62.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07500-C (2 Pcs)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Circlip
86 units (172 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$8.41 AUD
$8.41 AUD
Per 2
Quantity Required

86 units (172 pcs) Available Now. Backorder if more than 86.
Housing Bore (B)
75.00
mm

(Equiv. 2.953 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.08
(Equiv. 3.071 in.)
Approx. Loose Circlip OD (Dr)
79.50
mm
+ 1.10 / - 0.46
Groove Width (W)
3.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 75x3x78 mm - Carbon Steel
Material: Carbon Steel    Standard: DIN472
Part Number: CCI-07500H-C (100 Pcs)
Internal Retaining Rings - 75x3x78 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 16, 2025
$805.05 AUD
$966.05 AUD $805.05 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
75.00
mm

(Equiv. 2.953 in.)
Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.)
Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.08
(Equiv. 3.071 in.)
Approx. Loose Circlip OD (Dr)
79.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 75x3x78 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-07500H-C (100 Pcs)
Internal Retaining Rings - 75x3x78 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 16, 2025
$805.05 AUD
$966.05 AUD $805.05 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
76.00
mm

(Equiv. 2.992 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
79.00
mm
+ 0.00 / - 0.07
(Equiv. 3.11 in.)
Approx. Loose Circlip OD (Dr)
80.70
mm
+ 1.30 / - 0.54
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 76x2.5x79 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 59.60 mm    Clearance in Groove (C1): 63.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50
Part Number: CCI-07600-C
Internal Retaining Rings - 76x2.5x79 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$11.23 AUD
$13.47 AUD $11.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
76.00
mm

(Equiv. 2.992 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
79.00
mm
+ 0.00 / - 0.07
(Equiv. 3.11 in.)
Approx. Loose Circlip OD (Dr)
80.70
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 76x2.5x79 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 59.60 mm    Clearance in Groove (C1): 63.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50
Part Number: CCI-07600-C
Internal Retaining Rings - 76x2.5x79 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$11.23 AUD
$13.47 AUD $11.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
80.82
mm
+ 0.00 / - 0.07
(Equiv. 3.182 in.)
Approx. Loose Circlip OD (Dr)
84.46
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 76.2x2.36x80.82 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 61.72 mm    Clearance in Groove (C1): 66.04 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.93    Standard: MIL-16625
Part Number: CCI-07620-C (3 Pcs)
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$11.95 AUD
$14.35 AUD $11.95 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.)
Groove Dia. (Dg)
80.82
mm
+ 0.00 / - 0.07
(Equiv. 3.182 in.)
Approx. Loose Circlip OD (Dr)
84.46
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 76.2x2.36x80.82 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 61.72 mm    Clearance in Groove (C1): 66.04 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.93    Standard: MIL-16625
Part Number: CCI-07620-C (3 Pcs)
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$11.95 AUD
$14.35 AUD $11.95 AUD
Per 3
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
77.79
mm

(Equiv. 3.063 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.)
Groove Dia. (Dg)
82.50
mm
+ 0.00 / - 0.07
(Equiv. 3.248 in.)
Approx. Loose Circlip OD (Dr)
86.82
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 77.79x2.77x82.5 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 62.48 mm    Clearance in Groove (C1): 67.06 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.09    Standard: MIL-16625
Part Number: CCI-07779-C (2 Pcs)
Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.86 AUD
$13.04 AUD $10.86 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
77.79
mm

(Equiv. 3.063 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.)
Groove Dia. (Dg)
82.50
mm
+ 0.00 / - 0.07
(Equiv. 3.248 in.)
Approx. Loose Circlip OD (Dr)
86.82
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 77.79x2.77x82.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 62.48 mm    Clearance in Groove (C1): 67.06 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.09    Standard: MIL-16625
Part Number: CCI-07779-C (2 Pcs)
Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$10.86 AUD
$13.04 AUD $10.86 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
78.00
mm

(Equiv. 3.071 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
81.00
mm
+ 0.00 / - 0.07
(Equiv. 3.189 in.)
Approx. Loose Circlip OD (Dr)
82.50
mm
+ 1.30 / - 0.54
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 78x2.5x81 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 60.10 mm    Clearance in Groove (C1): 64.00 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07800-C (5 Pcs)
Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$15.23 AUD
$18.27 AUD $15.23 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
78.00
mm

(Equiv. 3.071 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
81.00
mm
+ 0.00 / - 0.07
(Equiv. 3.189 in.)
Approx. Loose Circlip OD (Dr)
82.50
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 78x2.5x81 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 60.10 mm    Clearance in Groove (C1): 64.00 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07800-C (5 Pcs)
Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$15.23 AUD
$18.27 AUD $15.23 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.)
Groove Dia. (Dg)
84.20
mm
+ 0.00 / - 0.08
(Equiv. 3.315 in.)
Approx. Loose Circlip OD (Dr)
88.60
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 79.38x2.77x84.2 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 64.01 mm    Clearance in Groove (C1): 68.83 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.24    Standard: MIL-16625
Part Number: CCI-07938-C (2 Pcs)
Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$11.05 AUD
$13.25 AUD $11.05 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.)
Groove Dia. (Dg)
84.20
mm
+ 0.00 / - 0.08
(Equiv. 3.315 in.)
Approx. Loose Circlip OD (Dr)
88.60
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 79.38x2.77x84.2 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 64.01 mm    Clearance in Groove (C1): 68.83 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.24    Standard: MIL-16625
Part Number: CCI-07938-C (2 Pcs)
Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$11.05 AUD
$13.25 AUD $11.05 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
79.98
mm

(Equiv. 3.149 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.)
Groove Dia. (Dg)
85.04
mm
+ 0.00 / - 0.08
(Equiv. 3.348 in.)
Approx. Loose Circlip OD (Dr)
89.48
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 79.98x2.77x85.04 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 64.77 mm    Clearance in Groove (C1): 69.60 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.32    Standard: MIL-16625
Part Number: CCI-07998-C
Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip
2 Available Now | Further orders can be expected around Mon, Sep 22, 2025
$8.05 AUD
$8.05 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Housing Bore (B)
79.98
mm

(Equiv. 3.149 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.)
Groove Dia. (Dg)
85.04
mm
+ 0.00 / - 0.08
(Equiv. 3.348 in.)
Approx. Loose Circlip OD (Dr)
89.48
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 79.98x2.77x85.04 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 64.77 mm    Clearance in Groove (C1): 69.60 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.32    Standard: MIL-16625
Part Number: CCI-07998-C
Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip
2 Available Now | Further orders can be expected around Mon, Sep 22, 2025
$8.05 AUD
$8.05 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Housing Bore (B)
80.00
mm

(Equiv. 3.15 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
83.50
mm
+ 0.00 / - 0.08
(Equiv. 3.287 in.)
Approx. Loose Circlip OD (Dr)
85.50
mm
+ 1.30 / - 0.54
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 80x2.5x83.5 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 62.10 mm    Clearance in Groove (C1): 66.50 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 5.30    Standard: DIN472
Part Number: CCI-08000-C (5 Pcs)
Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Steel Circlip
10 units (50 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$23.14 AUD
$23.14 AUD
Per 5
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Housing Bore (B)
80.00
mm

(Equiv. 3.15 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
83.50
mm
+ 0.00 / - 0.08
(Equiv. 3.287 in.)
Approx. Loose Circlip OD (Dr)
85.50
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 80x2.5x83.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 62.10 mm    Clearance in Groove (C1): 66.50 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 5.30    Standard: DIN472
Part Number: CCI-08000-C (5 Pcs)
Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Steel Circlip
10 units (50 pcs) Available Now | Further orders can be expected around Mon, Sep 22, 2025
$23.14 AUD
$23.14 AUD
Per 5
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Housing Bore (B)
81.00
mm

(Equiv. 3.189 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
84.50
mm
+ 0.00 / - 0.08
(Equiv. 3.327 in.)
Approx. Loose Circlip OD (Dr)
86.50
mm
+ 1.30 / - 0.54
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 81x2.5x84.5 mm - Carbon Steel
Material: Carbon Steel    Min. Extension (n): 5.30    Standard: DIN472
Part Number: CCI-08100-C (4 Pcs)
Internal Retaining Rings - 81x2.5x84.5 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$12.77 AUD
$15.33 AUD $12.77 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
81.00
mm

(Equiv. 3.189 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
84.50
mm
+ 0.00 / - 0.08
(Equiv. 3.327 in.)
Approx. Loose Circlip OD (Dr)
86.50
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 81x2.5x84.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Min. Extension (n): 5.30    Standard: DIN472
Part Number: CCI-08100-C (4 Pcs)
Internal Retaining Rings - 81x2.5x84.5 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
$12.77 AUD
$15.33 AUD $12.77 AUD
Per 4
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
82.00
mm

(Equiv. 3.228 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
85.50
mm
+ 0.00 / - 0.08
(Equiv. 3.366 in.)
Approx. Loose Circlip OD (Dr)
87.50
mm
+ 1.30 / - 0.54
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 82x2.5x85.5 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 64.10 mm    Clearance in Groove (C1): 68.50 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 5.30    Standard: DIN472
Part Number: CCI-08200-C
Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip
20 Available Now | Further orders can be expected around Mon, Sep 22, 2025
$2.41 AUD
$4.25 AUD $2.41 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
Housing Bore (B)
82.00
mm

(Equiv. 3.228 in.)
Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.)
Groove Dia. (Dg)
85.50
mm
+ 0.00 / - 0.08
(Equiv. 3.366 in.)
Approx. Loose Circlip OD (Dr)
87.50
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 82x2.5x85.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 64.10 mm    Clearance in Groove (C1): 68.50 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 5.30    Standard: DIN472
Part Number: CCI-08200-C
Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip
20 Available Now | Further orders can be expected around Mon, Sep 22, 2025
$2.41 AUD
$4.25 AUD $2.41 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
