Retaining Rings - External - Spiral Rings– Page2 – Miniature Bearings Australia - MBA Minibearings - Online, Pick-Up, Retail, Distributors, Wholesale

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 18.27 mm (Equiv. 0.719 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-075-S02 (5 Pcs) External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 99 units (495 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price Sale price $1.32 AUD Unit price per Per 5 Quantity Required 99 units (495 pcs) Available Now. Backorder if more than 99.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 18.27 mm (Equiv. 0.719 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-075-S02 (5 Pcs) External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 99 units (495 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price Sale price $1.32 AUD Unit price per Per 5 Quantity Required 99 units (495 pcs) Available Now. Backorder if more than 99.
RS-075-S02 (5 Pcs) --- External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RS-075-S02 (5 Pcs) --- External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $1.32 AUD Regular price Sale price $1.32 AUD Unit price per 99 Available Now
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.02 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-075 (2 Pcs) External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (8 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price ~~$7.60 AUD~~ Sale price $4.32 AUD Unit price per Per 2 Quantity Required 4 units (8 pcs) Available Now. Backorder if more than 4.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.02 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-075 (2 Pcs) External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (8 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price ~~$7.60 AUD~~ Sale price $4.32 AUD Unit price per Per 2 Quantity Required 4 units (8 pcs) Available Now. Backorder if more than 4.
RSN-075 (2 Pcs) --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-075 (2 Pcs) --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $4.32 AUD Regular price ~~$7.60 AUD~~ Sale price $4.32 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.16 mm (Equiv. 0.715 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy
Part Number: RST-075-S02 (25 Pcs) External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $149.14 AUD Regular price Sale price $149.14 AUD Unit price per Per 25 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.16 mm (Equiv. 0.715 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy
Part Number: RST-075-S02 (25 Pcs) External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $149.14 AUD Regular price Sale price $149.14 AUD Unit price per Per 25 Quantity Required Backorder: Out of Stock.
RST-075-S02 (25 Pcs) --- External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RST-075-S02 (25 Pcs) --- External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $149.14 AUD Regular price Sale price $149.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.16 mm (Equiv. 0.715 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-075 (5 Pcs) External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.16 mm (Equiv. 0.715 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-075 (5 Pcs) External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RST-075 (5 Pcs) --- External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring RST-075 (5 Pcs) --- External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.02 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.02 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.75 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-078 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring 30 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.50 AUD Regular price ~~$9.75 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.75 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-078 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring 30 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.50 AUD Regular price ~~$9.75 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
RSN-078 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-078 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $5.50 AUD Regular price ~~$9.75 AUD~~ Sale price $5.50 AUD Unit price per 30 Available Now Sale
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.75 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.75 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.36 mm (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 22.48 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.36 mm (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 22.48 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.71 mm (Equiv. 0.776 in.)	Approx. Loose Circlip ID (A) 19.38 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 22.68 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-081 (2 Pcs) External Retaining Rings - 20.62x1.07x19.71 mm Spiral Rings - Carbon Spring Steel Spiral Ring 65 units (130 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.23 AUD Regular price ~~$1.47 AUD~~ Sale price $1.23 AUD Unit price per Per 2 Quantity Required 65 units (130 pcs) Available Now. Backorder if more than 65.
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.71 mm (Equiv. 0.776 in.)	Approx. Loose Circlip ID (A) 19.38 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 22.68 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-081 (2 Pcs) External Retaining Rings - 20.62x1.07x19.71 mm Spiral Rings - Carbon Spring Steel Spiral Ring 65 units (130 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.23 AUD Regular price ~~$1.47 AUD~~ Sale price $1.23 AUD Unit price per Per 2 Quantity Required 65 units (130 pcs) Available Now. Backorder if more than 65.
RST-081 (2 Pcs) --- External Retaining Rings - 20.62x1.07x19.71 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RST-081 (2 Pcs) --- External Retaining Rings - 20.62x1.07x19.71 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $1.23 AUD Regular price ~~$1.47 AUD~~ Sale price $1.23 AUD Unit price per 65 Available Now Sale
Shaft Diameter (Ds) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 19.84 mm (Equiv. 0.781 in.)	Approx. Loose Circlip ID (A) 19.40 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 22.7 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-081 (5 Pcs) External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 19.84 mm (Equiv. 0.781 in.)	Approx. Loose Circlip ID (A) 19.40 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 22.7 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-081 (5 Pcs) External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RS-081 (5 Pcs) --- External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-081 (5 Pcs) --- External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 21.29 mm (Equiv. 0.838 in.)	Approx. Loose Circlip ID (A) 20.90 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.2 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-087 (100 Pcs) External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 16, 2025 Regular price $436.05 AUD Regular price ~~$523.25 AUD~~ Sale price $436.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 21.29 mm (Equiv. 0.838 in.)	Approx. Loose Circlip ID (A) 20.90 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 24.2 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-087 (100 Pcs) External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 16, 2025 Regular price $436.05 AUD Regular price ~~$523.25 AUD~~ Sale price $436.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
RS-087 (100 Pcs) --- External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-087 (100 Pcs) --- External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $436.05 AUD Regular price ~~$523.25 AUD~~ Sale price $436.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.49 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-087 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.14 AUD Regular price ~~$9.17 AUD~~ Sale price $5.14 AUD Unit price per Each Quantity Required 43 Available Now. Backorder if more than 43.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 24.49 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-087 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.14 AUD Regular price ~~$9.17 AUD~~ Sale price $5.14 AUD Unit price per Each Quantity Required 43 Available Now. Backorder if more than 43.
RSN-087 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-087 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $5.14 AUD Regular price ~~$9.17 AUD~~ Sale price $5.14 AUD Unit price per 43 Available Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.21 mm (Equiv. 0.835 in.)	Approx. Loose Circlip ID (A) 20.90 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.72 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-087 (5 Pcs) External Retaining Rings - 22.23x1.07x21.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.14 AUD Regular price ~~$10.96 AUD~~ Sale price $9.14 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.21 mm (Equiv. 0.835 in.)	Approx. Loose Circlip ID (A) 20.90 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 24.72 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-087 (5 Pcs) External Retaining Rings - 22.23x1.07x21.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.14 AUD Regular price ~~$10.96 AUD~~ Sale price $9.14 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RST-087 (5 Pcs) --- External Retaining Rings - 22.23x1.07x21.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RST-087 (5 Pcs) --- External Retaining Rings - 22.23x1.07x21.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.14 AUD Regular price ~~$10.96 AUD~~ Sale price $9.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 24.49 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 24.49 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.01 mm (Equiv. 0.906 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 22.08 mm (Equiv. 0.869 in.)	Approx. Loose Circlip ID (A) 21.63 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.93 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-090 (7 Pcs) External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.01 mm (Equiv. 0.906 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 22.08 mm (Equiv. 0.869 in.)	Approx. Loose Circlip ID (A) 21.63 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 24.93 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-090 (7 Pcs) External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
RS-090 (7 Pcs) --- External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-090 (7 Pcs) --- External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 25.98 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 25.98 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 25.98 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-093 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 28, 2025 Regular price $9.50 AUD Regular price ~~$11.40 AUD~~ Sale price $9.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 25.98 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-093 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 28, 2025 Regular price $9.50 AUD Regular price ~~$11.40 AUD~~ Sale price $9.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-093 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-093 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.50 AUD Regular price ~~$11.40 AUD~~ Sale price $9.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 24.96 mm (Equiv. 0.983 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.46 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.28 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-098 (140 Pcs) External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $579.86 AUD Regular price Sale price $579.86 AUD Unit price per Per 140 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 24.96 mm (Equiv. 0.983 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.46 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.28 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-098 (140 Pcs) External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $579.86 AUD Regular price Sale price $579.86 AUD Unit price per Per 140 Quantity Required Backorder: Out of Stock.
RST-098 (140 Pcs) --- External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring RST-098 (140 Pcs) --- External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $579.86 AUD Regular price Sale price $579.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 24.99 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.52 mm (Equiv. 0.926 in.)	Approx. Loose Circlip ID (A) 23.24 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-098 (10 Pcs) External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 24.99 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.52 mm (Equiv. 0.926 in.)	Approx. Loose Circlip ID (A) 23.24 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 27.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-098 (10 Pcs) External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
RSN-098 (10 Pcs) --- External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-098 (10 Pcs) --- External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 2 Available Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 24.31 mm (Equiv. 0.957 in.)	Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.7 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-100 (50 Pcs) External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $124.77 AUD Regular price ~~$149.73 AUD~~ Sale price $124.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 24.31 mm (Equiv. 0.957 in.)	Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip OD: 27.7 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-100 (50 Pcs) External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $124.77 AUD Regular price ~~$149.73 AUD~~ Sale price $124.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
RS-100 (50 Pcs) --- External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-100 (50 Pcs) --- External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $124.77 AUD Regular price ~~$149.73 AUD~~ Sale price $124.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 24.31 mm (Equiv. 0.957 in.)	Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 27.7 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-100-S02 (500 Pcs) External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2,304.32 AUD Regular price Sale price $2,304.32 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 24.31 mm (Equiv. 0.957 in.)	Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip OD: 27.7 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-100-S02 (500 Pcs) External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2,304.32 AUD Regular price Sale price $2,304.32 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
RS-100-S02 (500 Pcs) --- External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RS-100-S02 (500 Pcs) --- External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $2,304.32 AUD Regular price Sale price $2,304.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.54 mm _{+/- 0.04} (Equiv. 0.021 in.)	Groove Dia. (Dg) 24.34 mm (Equiv. 0.958 in.)	Approx. Loose Circlip ID (A) 24.13 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.69 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.43 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-100 (50 Pcs) External Retaining Rings - 25.4x0.54x24.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $54.86 AUD Regular price ~~$65.84 AUD~~ Sale price $54.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 0.54 mm _{+/- 0.04} (Equiv. 0.021 in.)	Groove Dia. (Dg) 24.34 mm (Equiv. 0.958 in.)	Approx. Loose Circlip ID (A) 24.13 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.69 mm +/- 0.07 Approx. Loose Clip OD: 27.43 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-100 (50 Pcs) External Retaining Rings - 25.4x0.54x24.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $54.86 AUD Regular price ~~$65.84 AUD~~ Sale price $54.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
US-100 (50 Pcs) --- External Retaining Rings - 25.4x0.54x24.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale US-100 (50 Pcs) --- External Retaining Rings - 25.4x0.54x24.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $54.86 AUD Regular price ~~$65.84 AUD~~ Sale price $54.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.94 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-100 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.94 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty

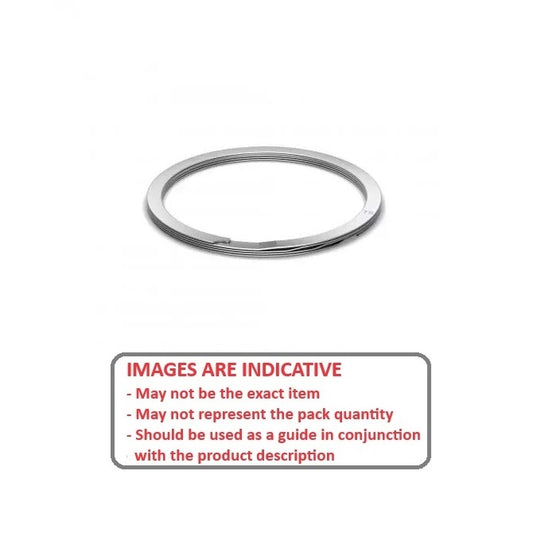

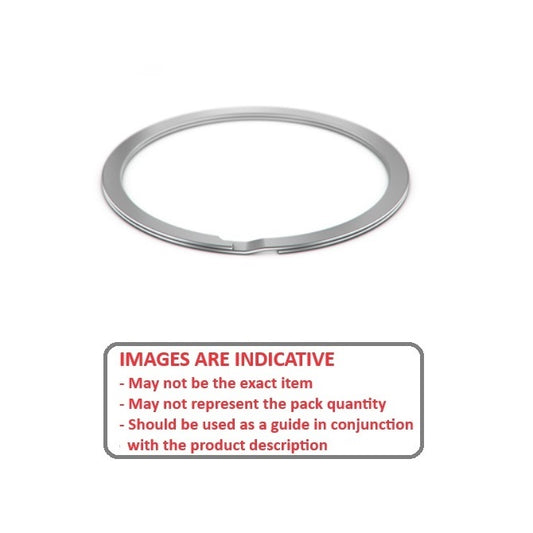

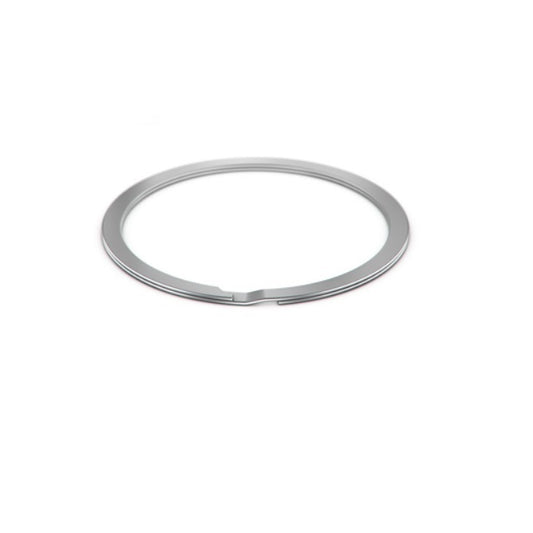

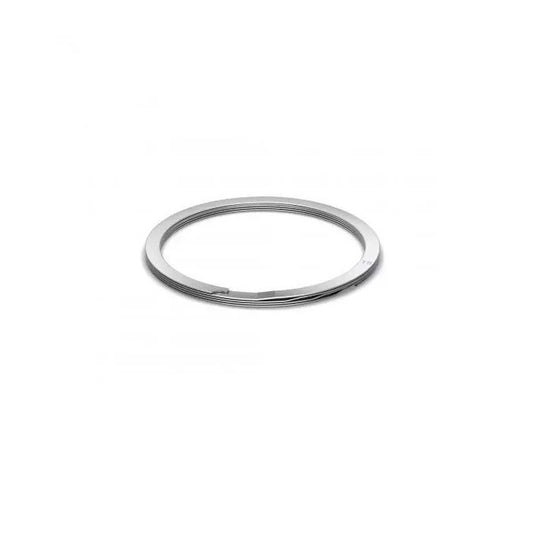

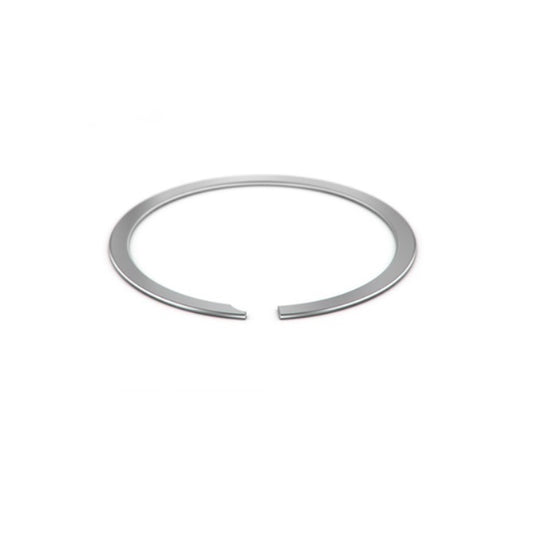

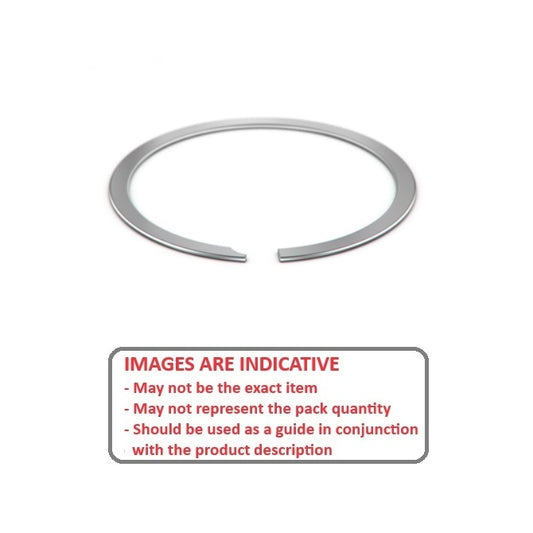

Part Number: RSN-100 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RSN-100 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-100 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 27.94 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.94 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now

Country/region

Collection: Retaining Rings - External - Spiral Rings

Filter

Filter

Subscribe to our emails
