| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |

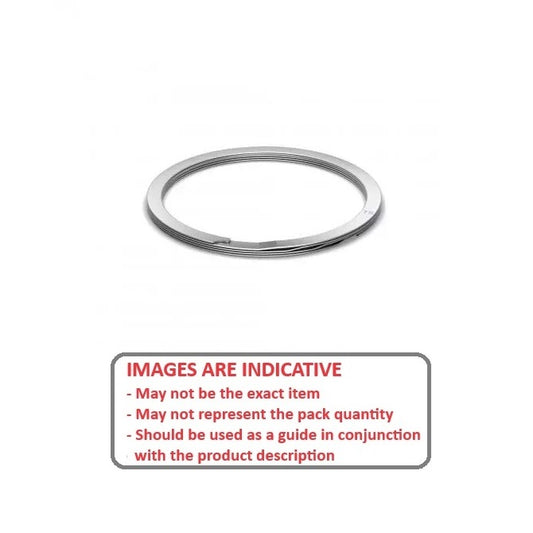

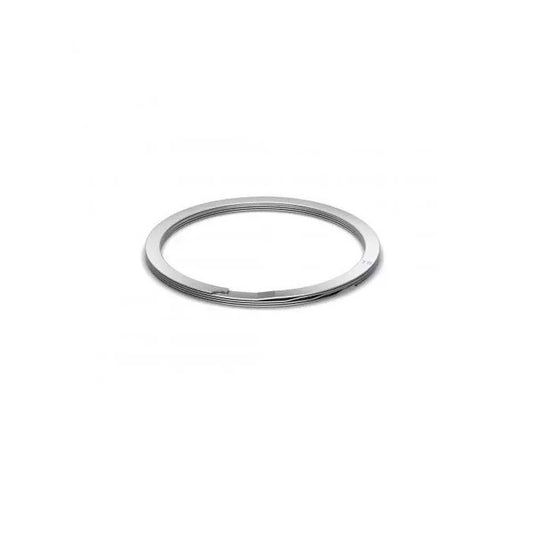

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
46.02
mm (Equiv. 1.812 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
43.39
mm (Equiv. 1.708 in.) |
Approx. Loose Circlip ID (A)
42.80
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
3.25
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 49.3 +/- 0.05
Groove Depth (d): 1.32
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-181
External Retaining Rings - 46.02x1.58x43.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
46.02
mm (Equiv. 1.812 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
43.39
mm (Equiv. 1.708 in.) |
Approx. Loose Circlip ID (A)
42.80
mm + 0.00 / - 0.51 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.25 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip OD: 49.3 +/- 0.05
Groove Depth (d): 1.32
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-181
External Retaining Rings - 46.02x1.58x43.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
44.94
mm (Equiv. 1.769 in.) |
Approx. Loose Circlip ID (A)
44.30
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 52.32 +/- 0.05
Groove Depth (d): 1.35
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-187
External Retaining Rings - 47.63x1.58x44.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
44.94
mm (Equiv. 1.769 in.) |
Approx. Loose Circlip ID (A)
44.30
mm + 0.00 / - 0.51 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip OD: 52.32 +/- 0.05
Groove Depth (d): 1.35
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-187
External Retaining Rings - 47.63x1.58x44.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
44.94
mm (Equiv. 1.769 in.) |
Approx. Loose Circlip ID (A)
44.30
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 52.32 +/- 0.05
Groove Depth (d): 1.35
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-187-S02
External Retaining Rings - 47.63x1.58x44.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
44.94
mm (Equiv. 1.769 in.) |
Approx. Loose Circlip ID (A)
44.30
mm + 0.00 / - 0.51 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip OD: 52.32 +/- 0.05
Groove Depth (d): 1.35
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-187-S02
External Retaining Rings - 47.63x1.58x44.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
50.01
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.17
mm (Equiv. 1.857 in.) |
Approx. Loose Circlip ID (A)
46.69
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 54.71 +/- 0.05
Groove Depth (d): 1.42
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-196 (100 Pcs)
External Retaining Rings - 50.01x1.58x47.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 06, 2025 Regular price
$500.77 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
50.01
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.17
mm (Equiv. 1.857 in.) |
Approx. Loose Circlip ID (A)
46.69
mm + 0.00 / - 0.51 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip OD: 54.71 +/- 0.05
Groove Depth (d): 1.42
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-196 (100 Pcs)
External Retaining Rings - 50.01x1.58x47.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 06, 2025 Regular price
$500.77 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.91
mm (Equiv. 1.886 in.) |
Approx. Loose Circlip ID (A)
47.24
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 55.26 +/- 0.05
Groove Depth (d): 1.45
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-200-S02
External Retaining Rings - 50.8x1.58x47.91 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$16.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.91
mm (Equiv. 1.886 in.) |
Approx. Loose Circlip ID (A)
47.24
mm + 0.00 / - 0.51 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip OD: 55.26 +/- 0.05
Groove Depth (d): 1.45
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-200-S02
External Retaining Rings - 50.8x1.58x47.91 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$16.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.91
mm (Equiv. 1.886 in.) |
Approx. Loose Circlip ID (A)
47.24
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 55.26 +/- 0.05
Groove Depth (d): 1.45
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 21914 |
||||||
|
Part Number: RSN-200
External Retaining Rings - 50.8x1.58x47.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.91
mm (Equiv. 1.886 in.) |
Approx. Loose Circlip ID (A)
47.24
mm + 0.00 / - 0.51 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip OD: 55.26 +/- 0.05
Groove Depth (d): 1.45
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 21914 |
||||||
|
Part Number: RSN-200
External Retaining Rings - 50.8x1.58x47.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
50.88
mm (Equiv. 2.003 in.) |
Approx. Loose Circlip ID (A)
50.20
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
4.27
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.16 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 58.74 +/- 0.06
Groove Depth (d): 1.55
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-212-S02
External Retaining Rings - 53.98x1.99x50.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$22.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
50.88
mm (Equiv. 2.003 in.) |
Approx. Loose Circlip ID (A)
50.20
mm + 0.00 / - 0.64 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 4.27 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.16
Approx. Loose Clip OD: 58.74 +/- 0.06
Groove Depth (d): 1.55
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-212-S02
External Retaining Rings - 53.98x1.99x50.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$22.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
53.85
mm (Equiv. 2.12 in.) |
Approx. Loose Circlip ID (A)
53.47
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
4.27
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 62.01 +/- 0.06
Groove Depth (d): 1.65
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-225
External Retaining Rings - 57.15x1.99x53.85 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
53.85
mm (Equiv. 2.12 in.) |
Approx. Loose Circlip ID (A)
53.47
mm + 0.00 / - 0.64 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.27 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.16
Approx. Loose Clip OD: 62.01 +/- 0.06
Groove Depth (d): 1.65
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-225
External Retaining Rings - 57.15x1.99x53.85 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
53.85
mm (Equiv. 2.12 in.) |
Approx. Loose Circlip ID (A)
53.15
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
4.27
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.16 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 61.69 +/- 0.06
Groove Depth (d): 1.65
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-225-S02
External Retaining Rings - 57.15x1.99x53.85 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$25.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
53.85
mm (Equiv. 2.12 in.) |
Approx. Loose Circlip ID (A)
53.15
mm + 0.00 / - 0.64 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 4.27 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.16
Approx. Loose Clip OD: 61.69 +/- 0.06
Groove Depth (d): 1.65
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-225-S02
External Retaining Rings - 57.15x1.99x53.85 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$25.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
56.87
mm (Equiv. 2.239 in.) |
Approx. Loose Circlip ID (A)
56.11
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 66.27 +/- 0.06
Groove Depth (d): 1.73
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-237-S02
External Retaining Rings - 60.33x1.99x56.87 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$38.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
56.87
mm (Equiv. 2.239 in.) |
Approx. Loose Circlip ID (A)
56.11
mm + 0.00 / - 0.64 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip OD: 66.27 +/- 0.06
Groove Depth (d): 1.73
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-237-S02
External Retaining Rings - 60.33x1.99x56.87 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$38.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
56.87
mm (Equiv. 2.239 in.) |
Approx. Loose Circlip ID (A)
56.11
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 66.27 +/- 0.06
Groove Depth (d): 1.73
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-237 (5 Pcs)
External Retaining Rings - 60.33x1.99x56.87 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$61.59 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
56.87
mm (Equiv. 2.239 in.) |
Approx. Loose Circlip ID (A)
56.11
mm + 0.00 / - 0.64 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip OD: 66.27 +/- 0.06
Groove Depth (d): 1.73
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-237 (5 Pcs)
External Retaining Rings - 60.33x1.99x56.87 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$61.59 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
59.95
mm (Equiv. 2.36 in.) |
Approx. Loose Circlip ID (A)
59.06
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 69.22 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-250 (5 Pcs)
External Retaining Rings - 63.5x1.99x59.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$61.77 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
59.95
mm (Equiv. 2.36 in.) |
Approx. Loose Circlip ID (A)
59.06
mm + 0.00 / - 0.64 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.16
Approx. Loose Clip OD: 69.22 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-250 (5 Pcs)
External Retaining Rings - 63.5x1.99x59.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$61.77 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
59.95
mm (Equiv. 2.36 in.) |
Approx. Loose Circlip ID (A)
59.06
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.16 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 69.22 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-250-S02
External Retaining Rings - 63.5x1.99x59.95 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$40.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
59.95
mm (Equiv. 2.36 in.) |
Approx. Loose Circlip ID (A)
59.06
mm + 0.00 / - 0.64 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.16
Approx. Loose Clip OD: 69.22 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-250-S02
External Retaining Rings - 63.5x1.99x59.95 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$40.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.02
mm (Equiv. 2.481 in.) |
Approx. Loose Circlip ID (A)
62.01
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 72.17 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-262-S02
External Retaining Rings - 66.68x1.99x63.02 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$36.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.02
mm (Equiv. 2.481 in.) |
Approx. Loose Circlip ID (A)
62.01
mm + 0.00 / - 0.64 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip OD: 72.17 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-262-S02
External Retaining Rings - 66.68x1.99x63.02 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$36.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.02
mm (Equiv. 2.481 in.) |
Approx. Loose Circlip ID (A)
62.01
mm + 0.00 / - 0.64 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 72.17 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-262 (5 Pcs)
External Retaining Rings - 66.68x1.99x63.02 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$63.95 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.02
mm (Equiv. 2.481 in.) |
Approx. Loose Circlip ID (A)
62.01
mm + 0.00 / - 0.64 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip OD: 72.17 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-262 (5 Pcs)
External Retaining Rings - 66.68x1.99x63.02 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$63.95 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
68.25
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
64.54
mm (Equiv. 2.541 in.) |
Approx. Loose Circlip ID (A)
64.21
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.08
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 74.37 +/- 0.06
Groove Depth (d): 1.85
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 704 |
||||||
|
Part Number: RSN-268
External Retaining Rings - 68.25x1.99x64.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$6.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
68.25
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
64.54
mm (Equiv. 2.541 in.) |
Approx. Loose Circlip ID (A)
64.21
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.08 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip OD: 74.37 +/- 0.06
Groove Depth (d): 1.85
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 704 |
||||||
|
Part Number: RSN-268
External Retaining Rings - 68.25x1.99x64.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$6.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.09
mm (Equiv. 2.602 in.) |
Approx. Loose Circlip ID (A)
64.96
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 76.4 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-275-S02
External Retaining Rings - 69.85x2.37x66.09 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$43.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.09
mm (Equiv. 2.602 in.) |
Approx. Loose Circlip ID (A)
64.96
mm + 0.00 / - 0.76 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip OD: 76.4 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-275-S02
External Retaining Rings - 69.85x2.37x66.09 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$43.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.09
mm (Equiv. 2.602 in.) |
Approx. Loose Circlip ID (A)
64.96
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 76.4 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-275
External Retaining Rings - 69.85x2.37x66.09 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$14.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.09
mm (Equiv. 2.602 in.) |
Approx. Loose Circlip ID (A)
64.96
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip OD: 76.4 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-275
External Retaining Rings - 69.85x2.37x66.09 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$14.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.12
mm (Equiv. 2.721 in.) |
Approx. Loose Circlip ID (A)
67.92
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.16 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 79.36 +/- 0.06
Groove Depth (d): 1.96
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-287-S02
External Retaining Rings - 73.03x2.37x69.12 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$44.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.12
mm (Equiv. 2.721 in.) |
Approx. Loose Circlip ID (A)
67.92
mm + 0.00 / - 0.76 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.16
Approx. Loose Clip OD: 79.36 +/- 0.06
Groove Depth (d): 1.96
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-287-S02
External Retaining Rings - 73.03x2.37x69.12 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$44.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.39
mm +/- 0.10 (Equiv. 0.094 in.) |
Groove Dia. (Dg)
69.12
mm (Equiv. 2.721 in.) |
Approx. Loose Circlip ID (A)
67.92
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.66
mm +/- 0.06 |
Groove Width (W)
2.68
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 79.24 +/- 0.06
Groove Depth (d): 1.96
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-287
External Retaining Rings - 73.03x2.39x69.12 mm Spiral Rings - Carbon Spring Steel Spiral Ring 480 Available Now | Further orders can be expected around Thu, Jul 20, 2028 Regular price
$12.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.39
mm +/- 0.10 (Equiv. 0.094 in.) |
Groove Dia. (Dg)
69.12
mm (Equiv. 2.721 in.) |
Approx. Loose Circlip ID (A)
67.92
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.66 mm +/- 0.06
Groove Width (W): 2.68 mm +/- 0.16
Approx. Loose Clip OD: 79.24 +/- 0.06
Groove Depth (d): 1.96
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-287
External Retaining Rings - 73.03x2.39x69.12 mm Spiral Rings - Carbon Spring Steel Spiral Ring 480 Available Now | Further orders can be expected around Thu, Jul 20, 2028 Regular price
$12.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.09
mm (Equiv. 2.838 in.) |
Approx. Loose Circlip ID (A)
70.87
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 82.31 +/- 0.06
Groove Depth (d): 2.06
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-300
External Retaining Rings - 76.2x2.37x72.09 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$15.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.09
mm (Equiv. 2.838 in.) |
Approx. Loose Circlip ID (A)
70.87
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip OD: 82.31 +/- 0.06
Groove Depth (d): 2.06
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-300
External Retaining Rings - 76.2x2.37x72.09 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$15.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.09
mm (Equiv. 2.838 in.) |
Approx. Loose Circlip ID (A)
70.87
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 82.31 +/- 0.06
Groove Depth (d): 2.06
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-300-S02
External Retaining Rings - 76.2x2.37x72.09 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$45.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.09
mm (Equiv. 2.838 in.) |
Approx. Loose Circlip ID (A)
70.87
mm + 0.00 / - 0.76 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip OD: 82.31 +/- 0.06
Groove Depth (d): 2.06
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-300-S02
External Retaining Rings - 76.2x2.37x72.09 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$45.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip ID (A)
76.77
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 88.21 +/- 0.06
Groove Depth (d): 2.21
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-325-S02
External Retaining Rings - 82.55x2.37x78.13 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$74.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip ID (A)
76.77
mm + 0.00 / - 0.76 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip OD: 88.21 +/- 0.06
Groove Depth (d): 2.21
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RSN-325-S02
External Retaining Rings - 82.55x2.37x78.13 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$74.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip ID (A)
76.77
mm + 0.00 / - 0.76 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 88.21 +/- 0.06
Groove Depth (d): 2.21
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-325
External Retaining Rings - 82.55x2.37x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$30.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip ID (A)
76.77
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip OD: 88.21 +/- 0.06
Groove Depth (d): 2.21
Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RSN-325
External Retaining Rings - 82.55x2.37x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$30.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
