RSN-262-S02 (Each)

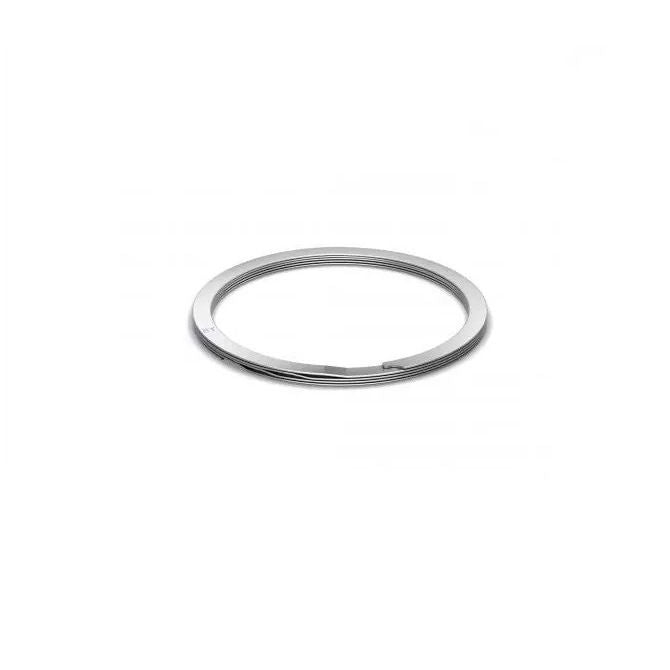

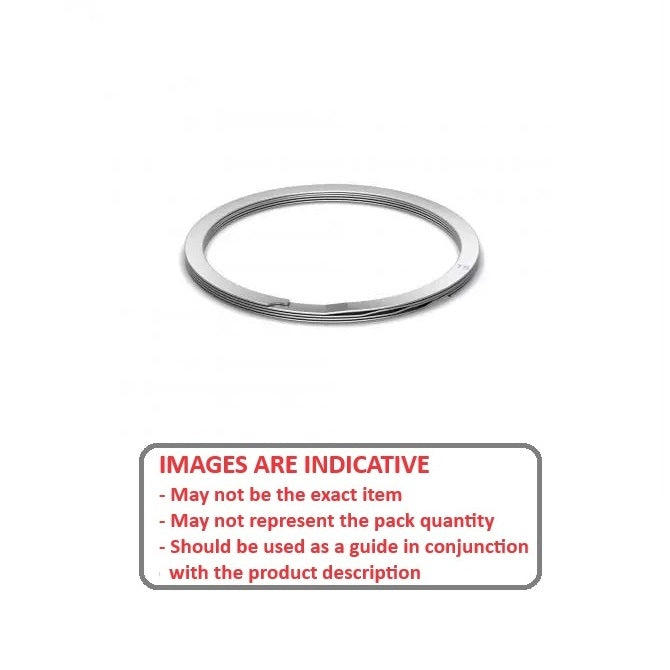

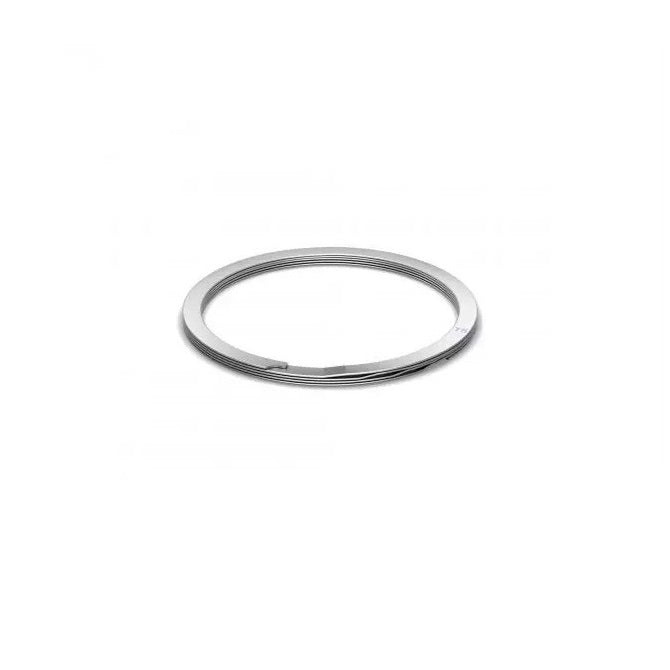

External Retaining Rings - 66.68x1.99x63.02 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more
for $30.47 AUD Each
2-5/8 inch Spiral Ring - 66.68x1.99x63.02 mm External Retaining Rings - Stainless Steel 302/304 (Similar to A2, 18-8) - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Product Details

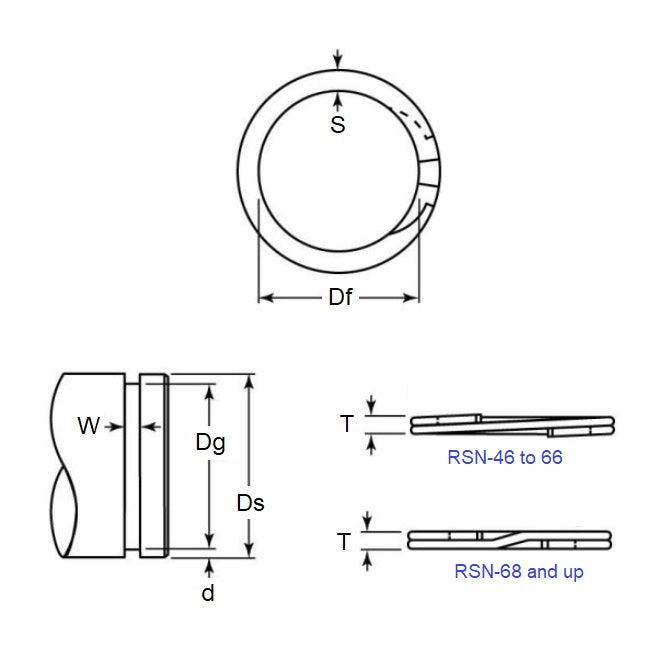

Shaft Diameter (Ds): 66.68mm(66.68mm is 2.625 in.)
Stainless Steel 302/304 (Similar to A2, 18-8)
- Shaft Diameter (Ds): 66.68mm
(66.68mm is 2.625 in.)
- Clip Thickness (T): 1.99mm
+/- 0.08
(1.99mm is 0.078 in.)
- Groove Dia. (Dg): 63.02mm
(63.02mm is 2.481 in.)
- Approx. Loose Circlip ID (A): 62.01mm
+ 0.00 / - 0.64
- Radial Wall (S) Approx.: 5.08mm
+/- 0.13
- Groove Width (W): 2.25mm
+/- 0.15
- Approx. Loose Clip OD: 72.17
+/- 0.06
- Groove Depth (d): 1.83
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 91650A600
- Associated Spring® AHE-262-S02
- Smalley® WSM-262-S02
- WSM262S02
- AHE262S02
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RSN262S02, RSN262
