Retaining Rings - External - Snap Rings

Retaining Rings -> External -> Snap Rings
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
Shaft or Bearing OD (d1)
54.76
mm

(Equiv. 2.156 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
51.61
mm
+/- 0.15
(Equiv. 2.032 in.)
Approx. Loose Circlip ID (A)
51.11
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm

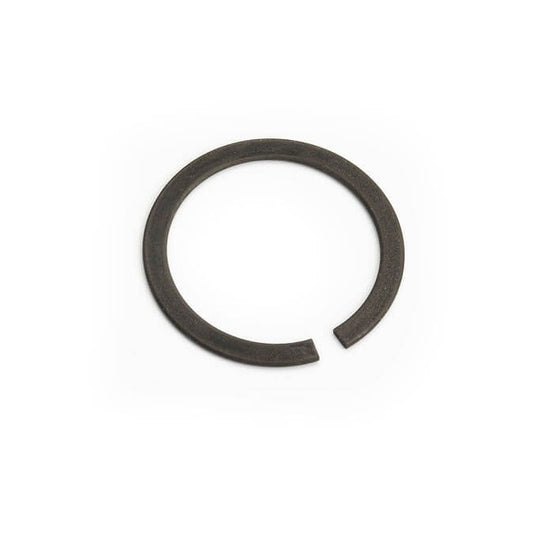

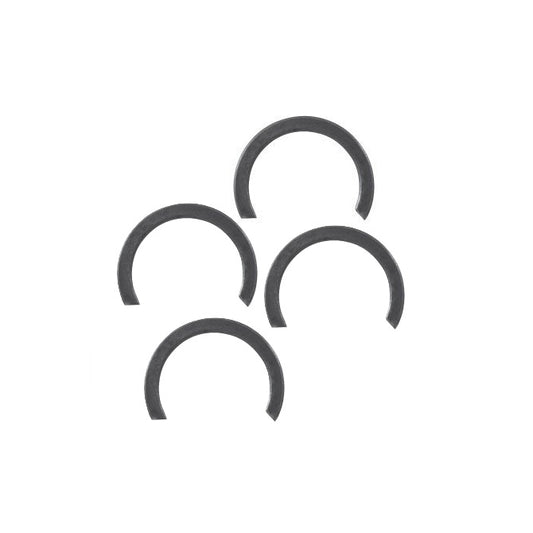

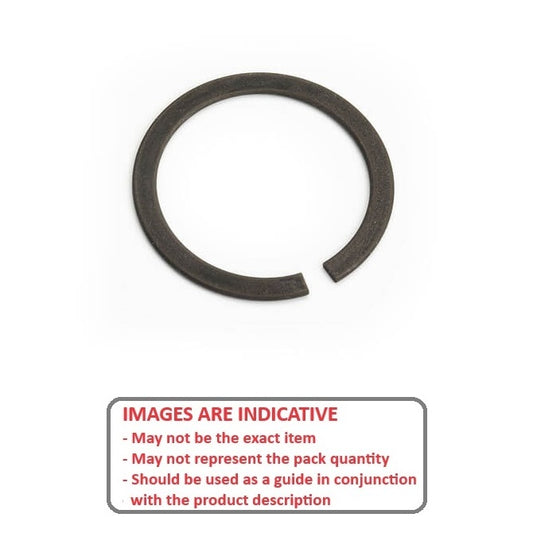

External Retaining Rings - 54.76x1.98x51.61 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 60.61
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0548-LS-N
External Retaining Rings - 54.76x1.98x51.61 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft or Bearing OD (d1)
54.76
mm

(Equiv. 2.156 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
51.61
mm
+/- 0.15
(Equiv. 2.032 in.)
Approx. Loose Circlip ID (A)
51.11
mm
+ 0.00 / - 1.50
External Retaining Rings - 54.76x1.98x51.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 60.61
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0548-LS-N
External Retaining Rings - 54.76x1.98x51.61 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
54.76
mm

(Equiv. 2.156 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
52.22
mm
+/- 0.15
(Equiv. 2.056 in.)
Approx. Loose Circlip ID (A)
51.46
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 54.76x1.98x52.22 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 59.38
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0548-LS
External Retaining Rings - 54.76x1.98x52.22 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
54.76
mm

(Equiv. 2.156 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
52.22
mm
+/- 0.15
(Equiv. 2.056 in.)
Approx. Loose Circlip ID (A)
51.46
mm
+ 0.00 / - 1.17
External Retaining Rings - 54.76x1.98x52.22 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 59.38
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0548-LS
External Retaining Rings - 54.76x1.98x52.22 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
52.60
mm
+ 0 / - 0.25
(Equiv. 2.071 in.)
Approx. Loose Circlip ID (A)
52.20
mm
Radial Wall (S) Approx.
4.04
mm
+ 0 / - 0.10
Groove Width (W)
1.65
mm
External Retaining Rings - 55x1.12x52.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 60.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0550-LR
External Retaining Rings - 55x1.12x52.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
52.60
mm
+ 0 / - 0.25
(Equiv. 2.071 in.)
Approx. Loose Circlip ID (A)
52.20
mm
External Retaining Rings - 55x1.12x52.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.04 mm + 0 / - 0.10    Groove Width (W): 1.65 mm    Approx. Loose Clip OD: 60.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0550-LR
External Retaining Rings - 55x1.12x52.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
53.50
mm
+ 0 / - 0.19
(Equiv. 2.106 in.)
Approx. Loose Circlip ID (A)
52.60
mm
Radial Wall (S) Approx.
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
External Retaining Rings - 55x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 57.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0550-LS
External Retaining Rings - 55x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring
53 Available Now | Further orders can be expected around Tue, Nov 04, 2025
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

53 Available Now. Backorder if more than 53.
Shaft or Bearing OD (d1)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
53.50
mm
+ 0 / - 0.19
(Equiv. 2.106 in.)
Approx. Loose Circlip ID (A)
52.60
mm
External Retaining Rings - 55x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip OD: 57.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0550-LS
External Retaining Rings - 55x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring
53 Available Now | Further orders can be expected around Tue, Nov 04, 2025
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

53 Available Now. Backorder if more than 53.
Shaft or Bearing OD (d1)
55.55
mm

(Equiv. 2.187 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
53.52
mm
+/- 0.15
(Equiv. 2.107 in.)
Approx. Loose Circlip ID (A)
52.88
mm
- 0.00 / + 1.60
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 55.55x1.07x53.52 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 60.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0556-LS-L
External Retaining Rings - 55.55x1.07x53.52 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
55.55
mm

(Equiv. 2.187 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
53.52
mm
+/- 0.15
(Equiv. 2.107 in.)
Approx. Loose Circlip ID (A)
52.88
mm
- 0.00 / + 1.60
External Retaining Rings - 55.55x1.07x53.52 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 60.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0556-LS-L
External Retaining Rings - 55.55x1.07x53.52 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
56.00
mm

(Equiv. 2.205 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
53.60
mm
+ 0 / - 0.25
(Equiv. 2.11 in.)
Approx. Loose Circlip ID (A)
53.20
mm
Radial Wall (S) Approx.
4.04
mm
+ 0 / - 0.10
Groove Width (W)
1.65
mm
External Retaining Rings - 56x1.12x53.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 61.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0560-LR
External Retaining Rings - 56x1.12x53.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
56.00
mm

(Equiv. 2.205 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
53.60
mm
+ 0 / - 0.25
(Equiv. 2.11 in.)
Approx. Loose Circlip ID (A)
53.20
mm
External Retaining Rings - 56x1.12x53.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.04 mm + 0 / - 0.10    Groove Width (W): 1.65 mm    Approx. Loose Clip OD: 61.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0560-LR
External Retaining Rings - 56x1.12x53.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
55.12
mm
+/- 0.15
(Equiv. 2.17 in.)
Approx. Loose Circlip ID (A)
54.48
mm
- 0.00 / + 1.60
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 57.15x1.07x55.12 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 62.4
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-LS-L
External Retaining Rings - 57.15x1.07x55.12 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
55.12
mm
+/- 0.15
(Equiv. 2.17 in.)
Approx. Loose Circlip ID (A)
54.48
mm
- 0.00 / + 1.60
External Retaining Rings - 57.15x1.07x55.12 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 62.4
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-LS-L
External Retaining Rings - 57.15x1.07x55.12 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
53.85
mm
+/- 0.15
(Equiv. 2.12 in.)
Approx. Loose Circlip ID (A)
53.34
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 57.15x1.98x53.85 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 63.66
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-LS-N
External Retaining Rings - 57.15x1.98x53.85 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
53.85
mm
+/- 0.15
(Equiv. 2.12 in.)
Approx. Loose Circlip ID (A)
53.34
mm
+ 0.00 / - 1.50
External Retaining Rings - 57.15x1.98x53.85 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 63.66
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-LS-N
External Retaining Rings - 57.15x1.98x53.85 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
54.51
mm
+/- 0.15
(Equiv. 2.146 in.)
Approx. Loose Circlip ID (A)
53.75
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 57.15x1.98x54.51 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 61.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-LS
External Retaining Rings - 57.15x1.98x54.51 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
54.51
mm
+/- 0.15
(Equiv. 2.146 in.)
Approx. Loose Circlip ID (A)
53.75
mm
+ 0.00 / - 1.17
External Retaining Rings - 57.15x1.98x54.51 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 61.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-LS
External Retaining Rings - 57.15x1.98x54.51 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.08
(Equiv. 0.187 in.)
Groove Dia. (Dg)
54.76
mm
+ 0.10 / - 0.00
(Equiv. 2.156 in.)
Approx. Loose Circlip ID (A)
54.20
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.08
Groove Width (W)
4.95
mm
External Retaining Rings - 57.15x4.75x54.76 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 63.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-C
External Retaining Rings - 57.15x4.75x54.76 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.08
(Equiv. 0.187 in.)
Groove Dia. (Dg)
54.76
mm
+ 0.10 / - 0.00
(Equiv. 2.156 in.)
Approx. Loose Circlip ID (A)
54.20
mm
+ 0.00 / - 2.00
External Retaining Rings - 57.15x4.75x54.76 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.08    Groove Width (W): 4.95 mm    Approx. Loose Clip OD: 63.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-C
External Retaining Rings - 57.15x4.75x54.76 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.08
(Equiv. 0.187 in.)
Groove Dia. (Dg)
54.76
mm
+ 0.10 / - 0.00
(Equiv. 2.156 in.)
Approx. Loose Circlip ID (A)
54.20
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.08
Groove Width (W)
4.95
mm
External Retaining Rings - 57.15x4.75x54.76 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 63.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-O
External Retaining Rings - 57.15x4.75x54.76 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.08
(Equiv. 0.187 in.)
Groove Dia. (Dg)
54.76
mm
+ 0.10 / - 0.00
(Equiv. 2.156 in.)
Approx. Loose Circlip ID (A)
54.20
mm
+ 0.00 / - 2.00
External Retaining Rings - 57.15x4.75x54.76 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.08    Groove Width (W): 4.95 mm    Approx. Loose Clip OD: 63.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-O
External Retaining Rings - 57.15x4.75x54.76 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.60
mm
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-HC
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.60 mm    Approx. Loose Clip OD: 66.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-HC
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.60
mm
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-HO
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.60 mm    Approx. Loose Clip OD: 66.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0572-SQ-HO
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
58.00
mm

(Equiv. 2.283 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
55.60
mm
+ 0 / - 0.25
(Equiv. 2.189 in.)
Approx. Loose Circlip ID (A)
55.20
mm
Radial Wall (S) Approx.
4.04
mm
+ 0 / - 0.10
Groove Width (W)
1.65
mm
External Retaining Rings - 58x1.12x55.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 63.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0580-LR
External Retaining Rings - 58x1.12x55.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
58.00
mm

(Equiv. 2.283 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
55.60
mm
+ 0 / - 0.25
(Equiv. 2.189 in.)
Approx. Loose Circlip ID (A)
55.20
mm
External Retaining Rings - 58x1.12x55.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.04 mm + 0 / - 0.10    Groove Width (W): 1.65 mm    Approx. Loose Clip OD: 63.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0580-LR
External Retaining Rings - 58x1.12x55.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.32
mm
+/- 0.15
(Equiv. 2.178 in.)
Approx. Loose Circlip ID (A)
54.81
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 58.73x1.98x55.32 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 65.13
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0587-LS-N
External Retaining Rings - 58.73x1.98x55.32 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.32
mm
+/- 0.15
(Equiv. 2.178 in.)
Approx. Loose Circlip ID (A)
54.81
mm
+ 0.00 / - 1.50
External Retaining Rings - 58.73x1.98x55.32 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 65.13
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0587-LS-N
External Retaining Rings - 58.73x1.98x55.32 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.98
mm
+/- 0.15
(Equiv. 2.204 in.)
Approx. Loose Circlip ID (A)
55.22
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 64.72
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0587-LS
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.98
mm
+/- 0.15
(Equiv. 2.204 in.)
Approx. Loose Circlip ID (A)
55.22
mm
+ 0.00 / - 1.17
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 64.72
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0587-LS
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
58.50
mm
+ 0 / - 0.19
(Equiv. 2.303 in.)
Approx. Loose Circlip ID (A)
57.60
mm
Radial Wall (S) Approx.
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 62.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0600-LS (50 Pcs)
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 26, 2025
$59.50 AUD
$71.40 AUD $59.50 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
58.50
mm
+ 0 / - 0.19
(Equiv. 2.303 in.)
Approx. Loose Circlip ID (A)
57.60
mm
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip OD: 62.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0600-LS (50 Pcs)
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 26, 2025
$59.50 AUD
$71.40 AUD $59.50 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
58.29
mm
+/- 0.15
(Equiv. 2.295 in.)
Approx. Loose Circlip ID (A)
57.66
mm
- 0.00 / + 1.60
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 60.33x1.07x58.29 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 65.58
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0603-LS-L
External Retaining Rings - 60.33x1.07x58.29 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
58.29
mm
+/- 0.15
(Equiv. 2.295 in.)
Approx. Loose Circlip ID (A)
57.66
mm
- 0.00 / + 1.60
External Retaining Rings - 60.33x1.07x58.29 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 65.58
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0603-LS-L
External Retaining Rings - 60.33x1.07x58.29 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
56.87
mm
+/- 0.15
(Equiv. 2.239 in.)
Approx. Loose Circlip ID (A)
56.36
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 60.33x1.98x56.87 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.68
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0603-LS-N
External Retaining Rings - 60.33x1.98x56.87 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
56.87
mm
+/- 0.15
(Equiv. 2.239 in.)
Approx. Loose Circlip ID (A)
56.36
mm
+ 0.00 / - 1.50
External Retaining Rings - 60.33x1.98x56.87 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 66.68
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0603-LS-N
External Retaining Rings - 60.33x1.98x56.87 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
57.53
mm
+/- 0.15
(Equiv. 2.265 in.)
Approx. Loose Circlip ID (A)
56.77
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.27
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0603-LS
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
57.53
mm
+/- 0.15
(Equiv. 2.265 in.)
Approx. Loose Circlip ID (A)
56.77
mm
+ 0.00 / - 1.17
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 66.27
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0603-LS
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
61.90
mm

(Equiv. 2.437 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.06
mm
+/- 0.15
(Equiv. 2.325 in.)
Approx. Loose Circlip ID (A)
58.29
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 67.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0619-LS
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
61.90
mm

(Equiv. 2.437 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.06
mm
+/- 0.15
(Equiv. 2.325 in.)
Approx. Loose Circlip ID (A)
58.29
mm
+ 0.00 / - 1.17
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 67.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0619-LS
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
61.93
mm

(Equiv. 2.438 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
58.40
mm
+/- 0.15
(Equiv. 2.299 in.)
Approx. Loose Circlip ID (A)
57.89
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 61.93x1.98x58.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 68.21
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0619-LS-N
External Retaining Rings - 61.93x1.98x58.4 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
61.93
mm

(Equiv. 2.438 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
58.40
mm
+/- 0.15
(Equiv. 2.299 in.)
Approx. Loose Circlip ID (A)
57.89
mm
+ 0.00 / - 1.50
External Retaining Rings - 61.93x1.98x58.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 68.21
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0619-LS-N
External Retaining Rings - 61.93x1.98x58.4 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
61.47
mm
+/- 0.15
(Equiv. 2.42 in.)
Approx. Loose Circlip ID (A)
60.71
mm
- 0.00 / + 1.60
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 63.5x1.07x61.47 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 68.63
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0635-LS-L
External Retaining Rings - 63.5x1.07x61.47 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
61.47
mm
+/- 0.15
(Equiv. 2.42 in.)
Approx. Loose Circlip ID (A)
60.71
mm
- 0.00 / + 1.60
External Retaining Rings - 63.5x1.07x61.47 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 68.63
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0635-LS-L
External Retaining Rings - 63.5x1.07x61.47 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.94
mm
+/- 0.15
(Equiv. 2.36 in.)
Approx. Loose Circlip ID (A)
59.44
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 63.5x1.98x59.94 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 70.52
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0635-LS-N
External Retaining Rings - 63.5x1.98x59.94 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.94
mm
+/- 0.15
(Equiv. 2.36 in.)
Approx. Loose Circlip ID (A)
59.44
mm
+ 0.00 / - 1.50
External Retaining Rings - 63.5x1.98x59.94 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 70.52
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0635-LS-N
External Retaining Rings - 63.5x1.98x59.94 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028
