| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|

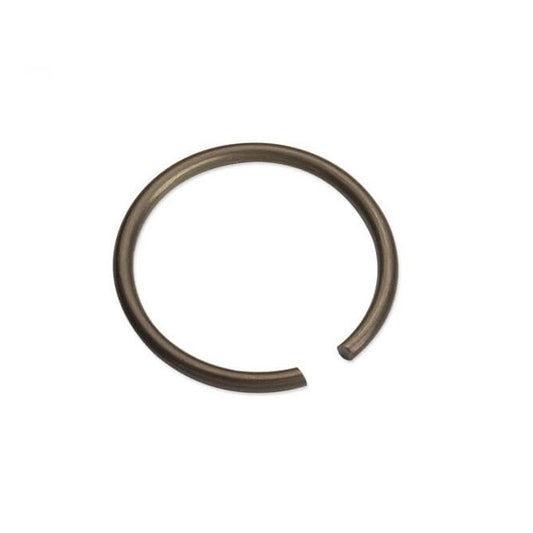

| External Retaining Rings - 76.2x5.89x72.54 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
5.89
mm +/- 0.06 (Equiv. 0.232 in.) |
Groove Dia. (Dg)
72.54
mm + /- 0.10 (Equiv. 2.856 in.) |
Approx. Loose Circlip ID (A)
71.81
mm |
Radial Wall (S) Approx.
72.54
mm |
Groove Width (W)
5.94
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 83.59 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0762-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
| External Retaining Rings - 76.2x5.89x72.54 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
5.89
mm +/- 0.06 (Equiv. 0.232 in.) |
Groove Dia. (Dg)
72.54
mm + /- 0.10 (Equiv. 2.856 in.) |
Approx. Loose Circlip ID (A)
71.81
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 72.54 mm Groove Width (W): 5.94 mm Free Outside Dia (Dr): 83.59 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0762-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||

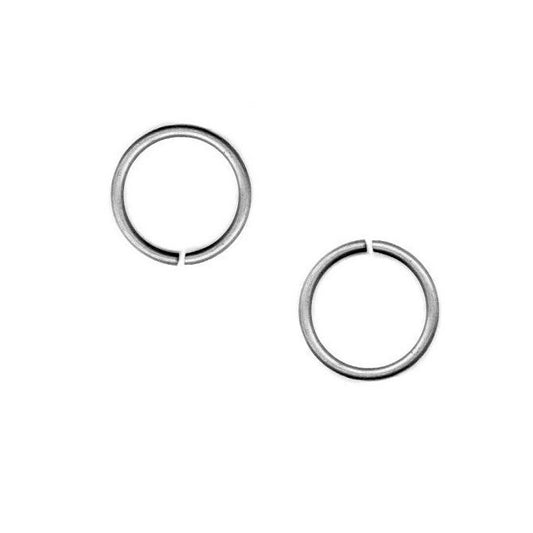

| External Retaining Rings - 76.2x6.35x72.24 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.06 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
72.24
mm + /- 0.10 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm |
Radial Wall (S) Approx.
72.24
mm |
Groove Width (W)
6.40
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 84.23 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0762-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 76.2x6.35x72.24 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.06 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
72.24
mm + /- 0.10 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 72.24 mm Groove Width (W): 6.40 mm Free Outside Dia (Dr): 84.23 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0762-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||

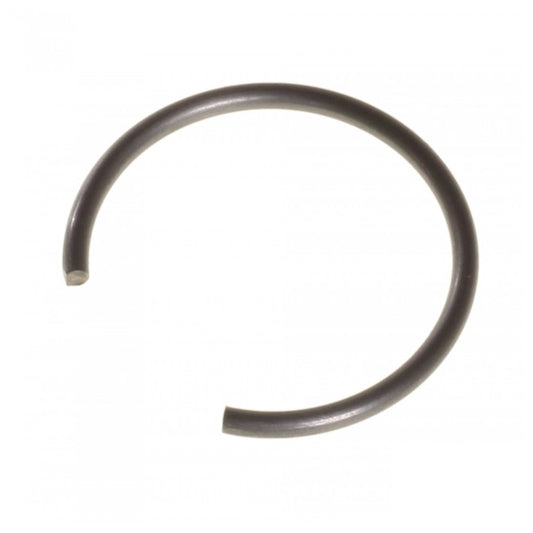

| External Retaining Rings - 76.2x6.35x72.24 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.06 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
72.24
mm + /- 0.10 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm |
Radial Wall (S) Approx.
72.24
mm |
Groove Width (W)
6.40
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 84.23 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0762-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 76.2x6.35x72.24 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.06 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
72.24
mm + /- 0.10 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 72.24 mm Groove Width (W): 6.40 mm Free Outside Dia (Dr): 84.23 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0762-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||

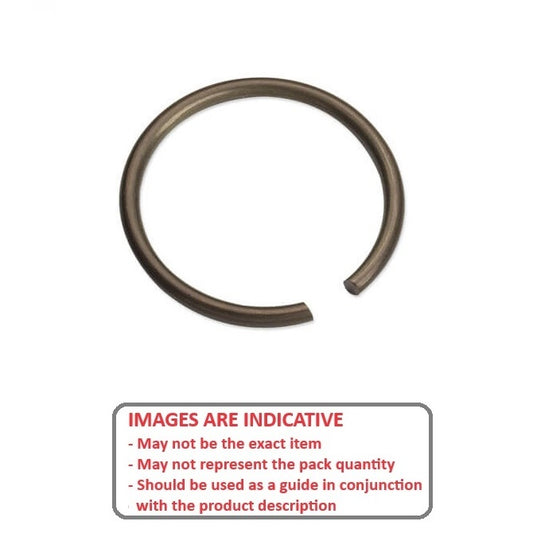

| External Retaining Rings - 90x3.2x86.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
86.65
mm + 0 / - 1.00 (Equiv. 3.411 in.) |
Approx. Loose Circlip ID (A)
86.0
mm |
Radial Wall (S) Approx.
86.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 92.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0900-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 90x3.2x86.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
86.65
mm + 0 / - 1.00 (Equiv. 3.411 in.) |
Approx. Loose Circlip ID (A)
86.0
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 86.65 mm +/- 0.15 Groove Width (W): 3.6 mm Min. Free Outside Dia (Dr): 92.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0900-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||
| External Retaining Rings - 95x3.2x91.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
91.65
mm + 0 / - 1.00 (Equiv. 3.608 in.) |
Approx. Loose Circlip ID (A)
91.0
mm |
Radial Wall (S) Approx.
91.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 97.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0950-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 95x3.2x91.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
91.65
mm + 0 / - 1.00 (Equiv. 3.608 in.) |
Approx. Loose Circlip ID (A)
91.0
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 91.65 mm +/- 0.15 Groove Width (W): 3.6 mm Min. Free Outside Dia (Dr): 97.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0950-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||
| External Retaining Rings - 100x3.2x96.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
96.65
mm + 0 / - 1.20 (Equiv. 3.805 in.) |
Approx. Loose Circlip ID (A)
95.8
mm |
Radial Wall (S) Approx.
96.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 102.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1000-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 100x3.2x96.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
96.65
mm + 0 / - 1.20 (Equiv. 3.805 in.) |
Approx. Loose Circlip ID (A)
95.8
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 96.65 mm +/- 0.15 Groove Width (W): 3.6 mm Min. Free Outside Dia (Dr): 102.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1000-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||
| External Retaining Rings - 115x3.2x111.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
115.00
mm (Equiv. 4.528 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
111.65
mm + 0 / - 1.20 (Equiv. 4.396 in.) |
Approx. Loose Circlip ID (A)
110.8
mm |
Radial Wall (S) Approx.
111.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 117.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1150-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 115x3.2x111.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
115.00
mm (Equiv. 4.528 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
111.65
mm + 0 / - 1.20 (Equiv. 4.396 in.) |
Approx. Loose Circlip ID (A)
110.8
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 111.65 mm +/- 0.15 Groove Width (W): 3.6 mm Min. Free Outside Dia (Dr): 117.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1150-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||
| External Retaining Rings - 120x3.2x116.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
120.00
mm (Equiv. 4.724 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
116.65
mm + 0 / - 1.20 (Equiv. 4.593 in.) |
Approx. Loose Circlip ID (A)
115.8
mm |
Radial Wall (S) Approx.
116.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 122.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1200-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 120x3.2x116.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
120.00
mm (Equiv. 4.724 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
116.65
mm + 0 / - 1.20 (Equiv. 4.593 in.) |
Approx. Loose Circlip ID (A)
115.8
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 116.65 mm +/- 0.15 Groove Width (W): 3.6 mm Min. Free Outside Dia (Dr): 122.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1200-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||
| External Retaining Rings - 125x3.2x121.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
125.00
mm (Equiv. 4.921 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
121.65
mm + 0 / - 1.20 (Equiv. 4.789 in.) |
Approx. Loose Circlip ID (A)
120.8
mm |
Radial Wall (S) Approx.
121.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 127.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1250-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 125x3.2x121.65 mm Round Wire - Carbon Spring Steel Circlip | ||||||
|
Shaft Diameter (Ds)
125.00
mm (Equiv. 4.921 in.) |
Clip Thickness (T)
3.20
mm (Equiv. 0.126 in.) |
Groove Dia. (Dg)
121.65
mm + 0 / - 1.20 (Equiv. 4.789 in.) |
Approx. Loose Circlip ID (A)
120.8
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 121.65 mm +/- 0.15 Groove Width (W): 3.6 mm Min. Free Outside Dia (Dr): 127.2 Section Profile: Round Section | ||||||
|
Part Number: WRE-1250-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028 |
||||||
