Retaining Rings - External - Round Wire

Retaining Rings -> External -> Round Wire
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative

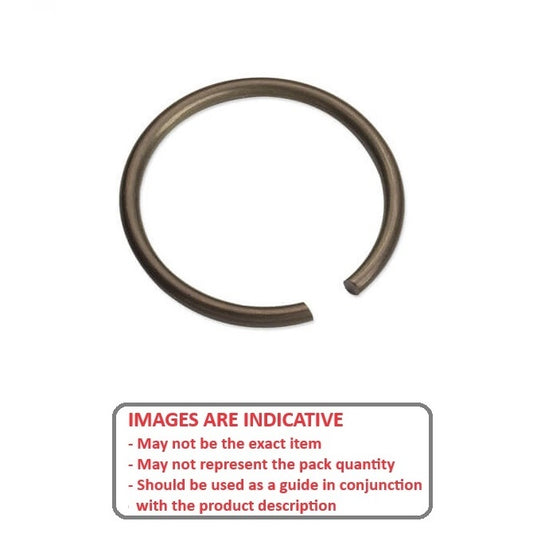

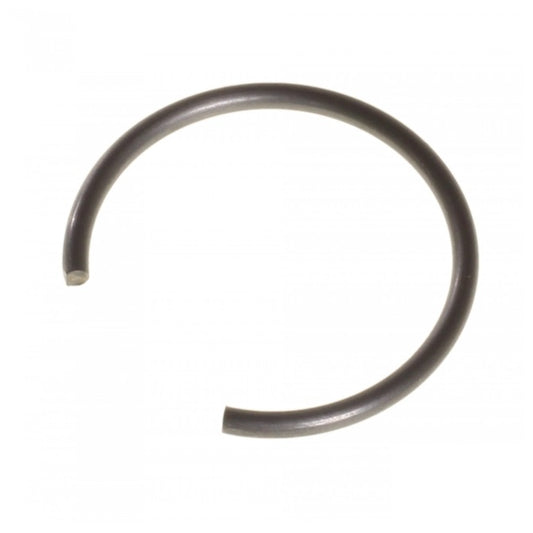

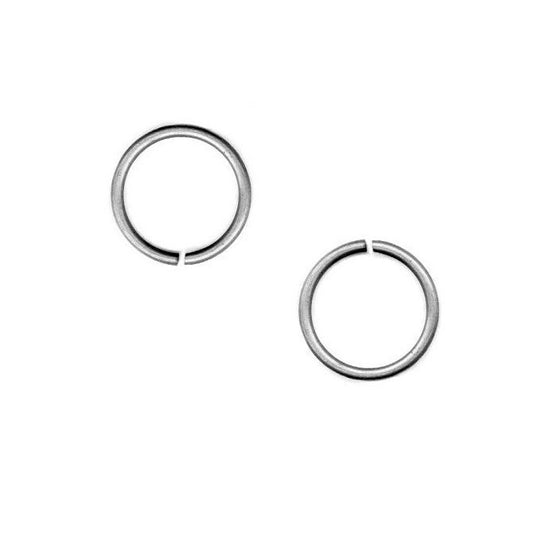

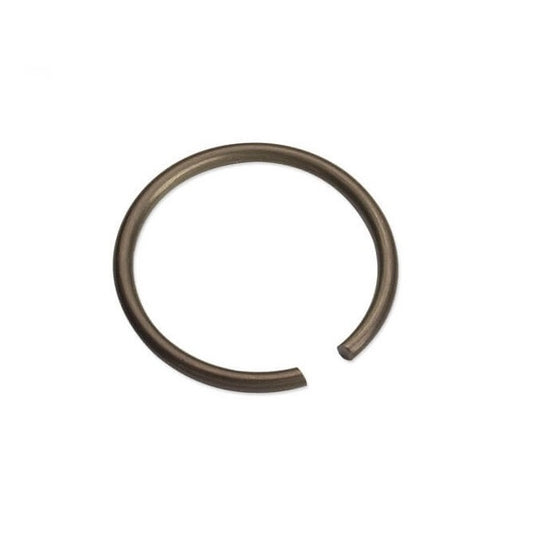

External Retaining Rings - 45x2.5x42.5 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
45.00
mm

(Equiv. 1.772 in.)
Clip Thickness (T)
2.50
mm

(Equiv. 0.098 in.)
Groove Dia. (Dg)
42.5
mm
+ 0 / - 0.80
(Equiv. 1.673 in.)
Approx. Loose Circlip ID (A)
42.0
mm
Radial Wall (S) Approx.
42.5
mm
+/- 0.10
Groove Width (W)
2.8
mm
Min.
External Retaining Rings - 45x2.5x42.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 47    Section Profile: Round Section
Part Number: WRE-0450-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 45x2.5x42.5 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
45.00
mm

(Equiv. 1.772 in.)
Clip Thickness (T)
2.50
mm

(Equiv. 0.098 in.)
Groove Dia. (Dg)
42.5
mm
+ 0 / - 0.80
(Equiv. 1.673 in.)
Approx. Loose Circlip ID (A)
42.0
mm
External Retaining Rings - 45x2.5x42.5 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 42.5 mm +/- 0.10    Groove Width (W): 2.8 mm Min.   Free Outside Dia (Dr): 47    Section Profile: Round Section
Part Number: WRE-0450-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 47.63x2.64x44.98 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
47.63
mm

(Equiv. 1.875 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
44.98
mm

(Equiv. 1.771 in.)
Approx. Loose Circlip ID (A)
43.69
mm
Radial Wall (S) Approx.
44.98
mm
+ 0.13 / - 0.00
Groove Width (W)
2.77
mm
+ 0.13 / - 0.00
External Retaining Rings - 47.63x2.64x44.98 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 48.97    Section Profile: Round Section
Part Number: WRE-0476-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 47.63x2.64x44.98 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
47.63
mm

(Equiv. 1.875 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
44.98
mm

(Equiv. 1.771 in.)
Approx. Loose Circlip ID (A)
43.69
mm
External Retaining Rings - 47.63x2.64x44.98 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 44.98 mm + 0.13 / - 0.00    Groove Width (W): 2.77 mm + 0.13 / - 0.00   Free Outside Dia (Dr): 48.97    Section Profile: Round Section
Part Number: WRE-0476-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 48x2.5x45.4 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
48.00
mm

(Equiv. 1.89 in.)
Clip Thickness (T)
2.50
mm

(Equiv. 0.098 in.)
Groove Dia. (Dg)
45.4
mm
+ 0 / - 0.80
(Equiv. 1.787 in.)
Approx. Loose Circlip ID (A)
45.0
mm
Radial Wall (S) Approx.
45.4
mm
+/- 0.10
Groove Width (W)
2.8
mm
Min.
External Retaining Rings - 48x2.5x45.4 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 50    Section Profile: Round Section
Part Number: WRE-0480-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 48x2.5x45.4 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
48.00
mm

(Equiv. 1.89 in.)
Clip Thickness (T)
2.50
mm

(Equiv. 0.098 in.)
Groove Dia. (Dg)
45.4
mm
+ 0 / - 0.80
(Equiv. 1.787 in.)
Approx. Loose Circlip ID (A)
45.0
mm
External Retaining Rings - 48x2.5x45.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 45.4 mm +/- 0.10    Groove Width (W): 2.8 mm Min.   Free Outside Dia (Dr): 50    Section Profile: Round Section
Part Number: WRE-0480-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 50x2.5x47.5 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
50.00
mm

(Equiv. 1.969 in.)
Clip Thickness (T)
2.50
mm

(Equiv. 0.098 in.)
Groove Dia. (Dg)
47.5
mm
+ 0 / - 0.80
(Equiv. 1.87 in.)
Approx. Loose Circlip ID (A)
47.0
mm
Radial Wall (S) Approx.
47.5
mm
+/- 0.10
Groove Width (W)
2.8
mm
Min.
External Retaining Rings - 50x2.5x47.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 52    Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 145
Part Number: WRE-0500-RD (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$7.86 AUD
$7.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
External Retaining Rings - 50x2.5x47.5 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
50.00
mm

(Equiv. 1.969 in.)
Clip Thickness (T)
2.50
mm

(Equiv. 0.098 in.)
Groove Dia. (Dg)
47.5
mm
+ 0 / - 0.80
(Equiv. 1.87 in.)
Approx. Loose Circlip ID (A)
47.0
mm
External Retaining Rings - 50x2.5x47.5 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 47.5 mm +/- 0.10    Groove Width (W): 2.8 mm Min.   Free Outside Dia (Dr): 52    Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 145
Part Number: WRE-0500-RD (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$7.86 AUD
$7.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
External Retaining Rings - 50.8x2.64x48.16 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
48.16
mm

(Equiv. 1.896 in.)
Approx. Loose Circlip ID (A)
46.74
mm
Radial Wall (S) Approx.
48.16
mm
+ 0.13 / - 0.00
Groove Width (W)
2.77
mm
+ 0.13 / - 0.00
External Retaining Rings - 50.8x2.64x48.16 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 52.02    Section Profile: Round Section
Part Number: WRE-0508-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 50.8x2.64x48.16 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
48.16
mm

(Equiv. 1.896 in.)
Approx. Loose Circlip ID (A)
46.74
mm
External Retaining Rings - 50.8x2.64x48.16 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 48.16 mm + 0.13 / - 0.00    Groove Width (W): 2.77 mm + 0.13 / - 0.00   Free Outside Dia (Dr): 52.02    Section Profile: Round Section
Part Number: WRE-0508-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 50.8x5.16x47.6 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
5.16
mm
+/- 0.06
(Equiv. 0.203 in.)
Groove Dia. (Dg)
47.60
mm
+ /- 0.10
(Equiv. 1.874 in.)
Approx. Loose Circlip ID (A)
47.12
mm
Radial Wall (S) Approx.
47.60
mm
Groove Width (W)
5.21
mm
External Retaining Rings - 50.8x5.16x47.6 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 57.44    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0508-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 50.8x5.16x47.6 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
5.16
mm
+/- 0.06
(Equiv. 0.203 in.)
Groove Dia. (Dg)
47.60
mm
+ /- 0.10
(Equiv. 1.874 in.)
Approx. Loose Circlip ID (A)
47.12
mm
External Retaining Rings - 50.8x5.16x47.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 47.60 mm    Groove Width (W): 5.21 mm    Free Outside Dia (Dr): 57.44    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0508-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 50.8x5.89x47.14 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
47.14
mm
+ /- 0.10
(Equiv. 1.856 in.)
Approx. Loose Circlip ID (A)
46.66
mm
Radial Wall (S) Approx.
47.14
mm
Groove Width (W)
5.94
mm
External Retaining Rings - 50.8x5.89x47.14 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 58.44    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0508-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 50.8x5.89x47.14 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
47.14
mm
+ /- 0.10
(Equiv. 1.856 in.)
Approx. Loose Circlip ID (A)
46.66
mm
External Retaining Rings - 50.8x5.89x47.14 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 47.14 mm    Groove Width (W): 5.94 mm    Free Outside Dia (Dr): 58.44    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0508-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 50.8x5.89x47.14 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
47.14
mm
+ /- 0.10
(Equiv. 1.856 in.)
Approx. Loose Circlip ID (A)
46.66
mm
Radial Wall (S) Approx.
47.14
mm
Groove Width (W)
5.94
mm
External Retaining Rings - 50.8x5.89x47.14 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 58.44    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0508-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 50.8x5.89x47.14 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
47.14
mm
+ /- 0.10
(Equiv. 1.856 in.)
Approx. Loose Circlip ID (A)
46.66
mm
External Retaining Rings - 50.8x5.89x47.14 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 47.14 mm    Groove Width (W): 5.94 mm    Free Outside Dia (Dr): 58.44    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0508-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 53.98x2.64x51.33 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
53.98
mm

(Equiv. 2.125 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
51.33
mm

(Equiv. 2.021 in.)
Approx. Loose Circlip ID (A)
49.78
mm
Radial Wall (S) Approx.
51.33
mm
+ 0.18 / - 0.00
Groove Width (W)
2.77
mm
+ 0.18 / - 0.00
External Retaining Rings - 53.98x2.64x51.33 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 55.06    Section Profile: Round Section
Part Number: WRE-0540-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 53.98x2.64x51.33 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
53.98
mm

(Equiv. 2.125 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
51.33
mm

(Equiv. 2.021 in.)
Approx. Loose Circlip ID (A)
49.78
mm
External Retaining Rings - 53.98x2.64x51.33 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 51.33 mm + 0.18 / - 0.00    Groove Width (W): 2.77 mm + 0.18 / - 0.00   Free Outside Dia (Dr): 55.06    Section Profile: Round Section
Part Number: WRE-0540-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 55x3.2x51.65 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
51.65
mm
+ 0 / - 0.80
(Equiv. 2.033 in.)
Approx. Loose Circlip ID (A)
51.1
mm
Radial Wall (S) Approx.
51.65
mm
+/- 0.15
Groove Width (W)
3.6
mm
Min.
External Retaining Rings - 55x3.2x51.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 57.5    Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 1495
Part Number: WRE-0550-RD (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$17.59 AUD
$32.74 AUD $17.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 55x3.2x51.65 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
55.00
mm

(Equiv. 2.165 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
51.65
mm
+ 0 / - 0.80
(Equiv. 2.033 in.)
Approx. Loose Circlip ID (A)
51.1
mm
External Retaining Rings - 55x3.2x51.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 51.65 mm +/- 0.15    Groove Width (W): 3.6 mm Min.   Free Outside Dia (Dr): 57.5    Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 1495
Part Number: WRE-0550-RD (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$17.59 AUD
$32.74 AUD $17.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 57.15x2.64x54.51 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
54.51
mm

(Equiv. 2.146 in.)
Approx. Loose Circlip ID (A)
52.88
mm
Radial Wall (S) Approx.
54.51
mm
+ 0.18 / - 0.00
Groove Width (W)
2.77
mm
+ 0.18 / - 0.00
External Retaining Rings - 57.15x2.64x54.51 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 58.16    Section Profile: Round Section
Part Number: WRE-0572-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 57.15x2.64x54.51 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
54.51
mm

(Equiv. 2.146 in.)
Approx. Loose Circlip ID (A)
52.88
mm
External Retaining Rings - 57.15x2.64x54.51 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 54.51 mm + 0.18 / - 0.00    Groove Width (W): 2.77 mm + 0.18 / - 0.00   Free Outside Dia (Dr): 58.16    Section Profile: Round Section
Part Number: WRE-0572-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 57.15x5.16x53.95 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
5.16
mm
+/- 0.06
(Equiv. 0.203 in.)
Groove Dia. (Dg)
53.95
mm
+ /- 0.10
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
Radial Wall (S) Approx.
53.95
mm
Groove Width (W)
5.21
mm
External Retaining Rings - 57.15x5.16x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 63.74    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0572-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 57.15x5.16x53.95 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
5.16
mm
+/- 0.06
(Equiv. 0.203 in.)
Groove Dia. (Dg)
53.95
mm
+ /- 0.10
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
External Retaining Rings - 57.15x5.16x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 53.95 mm    Groove Width (W): 5.21 mm    Free Outside Dia (Dr): 63.74    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0572-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 57.15x5.89x53.49 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
53.49
mm
+ /- 0.10
(Equiv. 2.106 in.)
Approx. Loose Circlip ID (A)
52.96
mm
Radial Wall (S) Approx.
53.49
mm
Groove Width (W)
5.94
mm
External Retaining Rings - 57.15x5.89x53.49 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 64.74    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0572-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 57.15x5.89x53.49 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
53.49
mm
+ /- 0.10
(Equiv. 2.106 in.)
Approx. Loose Circlip ID (A)
52.96
mm
External Retaining Rings - 57.15x5.89x53.49 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 53.49 mm    Groove Width (W): 5.94 mm    Free Outside Dia (Dr): 64.74    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0572-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 57.15x5.89x53.49 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
53.49
mm
+ /- 0.10
(Equiv. 2.106 in.)
Approx. Loose Circlip ID (A)
52.96
mm
Radial Wall (S) Approx.
53.49
mm
Groove Width (W)
8.64
mm
External Retaining Rings - 57.15x5.89x53.49 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 64.74    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0572-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 57.15x5.89x53.49 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
53.49
mm
+ /- 0.10
(Equiv. 2.106 in.)
Approx. Loose Circlip ID (A)
52.96
mm
External Retaining Rings - 57.15x5.89x53.49 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 53.49 mm    Groove Width (W): 8.64 mm    Free Outside Dia (Dr): 64.74    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0572-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 60x3.2x56.65 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
56.65
mm
+ 0 / - 0.80
(Equiv. 2.23 in.)
Approx. Loose Circlip ID (A)
56.1
mm
Radial Wall (S) Approx.
56.65
mm
+/- 0.15
Groove Width (W)
3.6
mm
Min.
External Retaining Rings - 60x3.2x56.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 62.5    Section Profile: Round Section
Part Number: WRE-0600-RD (PK-750)
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 22, 2026
$2,480.86 AUD
$2,480.86 AUD
Priced, Stocked and Sold Per 750 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 60x3.2x56.65 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
56.65
mm
+ 0 / - 0.80
(Equiv. 2.23 in.)
Approx. Loose Circlip ID (A)
56.1
mm
External Retaining Rings - 60x3.2x56.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 56.65 mm +/- 0.15    Groove Width (W): 3.6 mm Min.   Free Outside Dia (Dr): 62.5    Section Profile: Round Section
Part Number: WRE-0600-RD (PK-750)
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 22, 2026
$2,480.86 AUD
$2,480.86 AUD
Priced, Stocked and Sold Per 750 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 60.33x2.64x57.68 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
57.68
mm

(Equiv. 2.271 in.)
Approx. Loose Circlip ID (A)
55.96
mm
Radial Wall (S) Approx.
57.68
mm
+ 0.18 / - 0.00
Groove Width (W)
2.77
mm
+ 0.18 / - 0.00
External Retaining Rings - 60.33x2.64x57.68 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 61.24    Section Profile: Round Section
Part Number: WRE-0603-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 60.33x2.64x57.68 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
57.68
mm

(Equiv. 2.271 in.)
Approx. Loose Circlip ID (A)
55.96
mm
External Retaining Rings - 60.33x2.64x57.68 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 57.68 mm + 0.18 / - 0.00    Groove Width (W): 2.77 mm + 0.18 / - 0.00   Free Outside Dia (Dr): 61.24    Section Profile: Round Section
Part Number: WRE-0603-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 63.5x2.64x60.86 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
60.86
mm

(Equiv. 2.396 in.)
Approx. Loose Circlip ID (A)
59.03
mm
Radial Wall (S) Approx.
60.86
mm
+ 0.18 / - 0.00
Groove Width (W)
2.77
mm
+ 0.18 / - 0.00
External Retaining Rings - 63.5x2.64x60.86 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 64.31    Section Profile: Round Section
Part Number: WRE-0635-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x2.64x60.86 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
2.64
mm

(Equiv. 0.104 in.)
Groove Dia. (Dg)
60.86
mm

(Equiv. 2.396 in.)
Approx. Loose Circlip ID (A)
59.03
mm
External Retaining Rings - 63.5x2.64x60.86 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 60.86 mm + 0.18 / - 0.00    Groove Width (W): 2.77 mm + 0.18 / - 0.00   Free Outside Dia (Dr): 64.31    Section Profile: Round Section
Part Number: WRE-0635-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 63.5x5.89x59.84 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
59.84
mm
+ /- 0.10
(Equiv. 2.356 in.)
Approx. Loose Circlip ID (A)
59.23
mm
Radial Wall (S) Approx.
59.84
mm
Groove Width (W)
5.94
mm
External Retaining Rings - 63.5x5.89x59.84 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 71.01    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0635-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x5.89x59.84 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
5.89
mm
+/- 0.06
(Equiv. 0.232 in.)
Groove Dia. (Dg)
59.84
mm
+ /- 0.10
(Equiv. 2.356 in.)
Approx. Loose Circlip ID (A)
59.23
mm
External Retaining Rings - 63.5x5.89x59.84 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 59.84 mm    Groove Width (W): 5.94 mm    Free Outside Dia (Dr): 71.01    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0635-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 63.5x6.35x59.54 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.06
(Equiv. 0.25 in.)
Groove Dia. (Dg)
59.54
mm
+ /- 0.10
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
Radial Wall (S) Approx.
59.54
mm
Groove Width (W)
6.40
mm
External Retaining Rings - 63.5x6.35x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 71.65    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0635-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x6.35x59.54 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.06
(Equiv. 0.25 in.)
Groove Dia. (Dg)
59.54
mm
+ /- 0.10
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
External Retaining Rings - 63.5x6.35x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 59.54 mm    Groove Width (W): 6.40 mm    Free Outside Dia (Dr): 71.65    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0635-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 63.5x6.35x59.54 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.06
(Equiv. 0.25 in.)
Groove Dia. (Dg)
59.54
mm
+ /- 0.10
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
Radial Wall (S) Approx.
59.54
mm
Groove Width (W)
6400.80
mm
External Retaining Rings - 63.5x6.35x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 71.65    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0635-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x6.35x59.54 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.06
(Equiv. 0.25 in.)
Groove Dia. (Dg)
59.54
mm
+ /- 0.10
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
External Retaining Rings - 63.5x6.35x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 59.54 mm    Groove Width (W): 6400.80 mm    Free Outside Dia (Dr): 71.65    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0635-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 65x3.2x61.65 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
61.65
mm
+ 0 / - 0.80
(Equiv. 2.427 in.)
Approx. Loose Circlip ID (A)
61.1
mm
Radial Wall (S) Approx.
61.65
mm
+/- 0.15
Groove Width (W)
3.6
mm
Min.
External Retaining Rings - 65x3.2x61.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 67.5    Section Profile: Round Section
Deleted Item. Available while stocks last.
Part Number: WRE-0650-RD (PK-10)
3 units (30 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 65x3.2x61.65 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
61.65
mm
+ 0 / - 0.80
(Equiv. 2.427 in.)
Approx. Loose Circlip ID (A)
61.1
mm
External Retaining Rings - 65x3.2x61.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 61.65 mm +/- 0.15    Groove Width (W): 3.6 mm Min.   Free Outside Dia (Dr): 67.5    Section Profile: Round Section
Deleted Item. Available while stocks last.
Part Number: WRE-0650-RD (PK-10)
3 units (30 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 69.85x3.25x66.6 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
3.25
mm

(Equiv. 0.128 in.)
Groove Dia. (Dg)
66.60
mm

(Equiv. 2.622 in.)
Approx. Loose Circlip ID (A)
64.59
mm
Radial Wall (S) Approx.
66.60
mm
+ 0.18 / - 0.00
Groove Width (W)
3.38
mm
+ 0.18 / - 0.00
External Retaining Rings - 69.85x3.25x66.6 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 71.09    Section Profile: Round Section
Part Number: WRE-0699-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 69.85x3.25x66.6 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
3.25
mm

(Equiv. 0.128 in.)
Groove Dia. (Dg)
66.60
mm

(Equiv. 2.622 in.)
Approx. Loose Circlip ID (A)
64.59
mm
External Retaining Rings - 69.85x3.25x66.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 66.60 mm + 0.18 / - 0.00    Groove Width (W): 3.38 mm + 0.18 / - 0.00   Free Outside Dia (Dr): 71.09    Section Profile: Round Section
Part Number: WRE-0699-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
External Retaining Rings - 70x3.2x66.8 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
66.8
mm
+ 0 / - 1.00
(Equiv. 2.63 in.)
Approx. Loose Circlip ID (A)
66.0
mm
Radial Wall (S) Approx.
66.8
mm
+/- 0.15
Groove Width (W)
3.6
mm
Min.
External Retaining Rings - 70x3.2x66.8 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 72.4    Section Profile: Round Section
Part Number: WRE-0700-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 70x3.2x66.8 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
3.20
mm

(Equiv. 0.126 in.)
Groove Dia. (Dg)
66.8
mm
+ 0 / - 1.00
(Equiv. 2.63 in.)
Approx. Loose Circlip ID (A)
66.0
mm
External Retaining Rings - 70x3.2x66.8 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 66.8 mm +/- 0.15    Groove Width (W): 3.6 mm Min.   Free Outside Dia (Dr): 72.4    Section Profile: Round Section
Part Number: WRE-0700-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sat, May 16, 2026
External Retaining Rings - 76.2x3.25x72.95 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
3.25
mm

(Equiv. 0.128 in.)
Groove Dia. (Dg)
72.95
mm

(Equiv. 2.872 in.)
Approx. Loose Circlip ID (A)
70.74
mm
Radial Wall (S) Approx.
72.95
mm
+ 0.18 / - 0.00
Groove Width (W)
3.38
mm
+ 0.18 / - 0.00
External Retaining Rings - 76.2x3.25x72.95 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 77.24    Section Profile: Round Section
Part Number: WRE-0762-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x3.25x72.95 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
3.25
mm

(Equiv. 0.128 in.)
Groove Dia. (Dg)
72.95
mm

(Equiv. 2.872 in.)
Approx. Loose Circlip ID (A)
70.74
mm
External Retaining Rings - 76.2x3.25x72.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 72.95 mm + 0.18 / - 0.00    Groove Width (W): 3.38 mm + 0.18 / - 0.00   Free Outside Dia (Dr): 77.24    Section Profile: Round Section
Part Number: WRE-0762-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 21, 2028
