| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

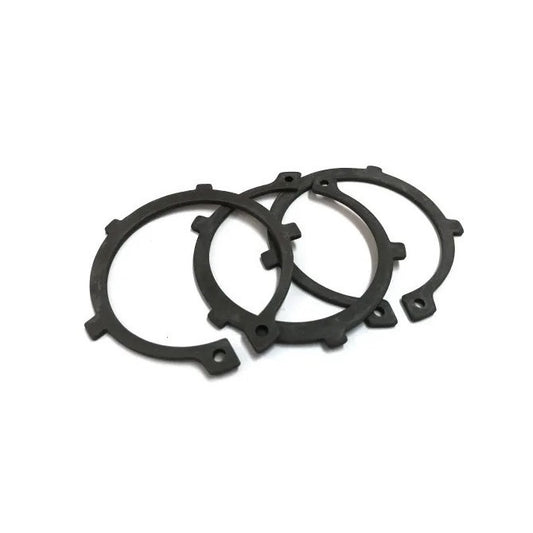

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
52.00
mm + 0.00 / - 0.07 (Equiv. 2.047 in.) |
Approx. Loose Circlip ID (A)
49.70
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-055
External Retaining Rings - 55x2x52 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
52.00
mm + 0.00 / - 0.07 (Equiv. 2.047 in.) |
Approx. Loose Circlip ID (A)
49.70
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.15 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-055
External Retaining Rings - 55x2x52 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip ID (A)
51.70 - 53.26
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-057
External Retaining Rings - 57x2x54 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip ID (A)
51.70 - 53.26
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.15 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-057
External Retaining Rings - 57x2x54 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
58.00
mm (Equiv. 2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip ID (A)
52.70 - 54.26
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-058
External Retaining Rings - 58x2x55 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
58.00
mm (Equiv. 2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip ID (A)
52.70 - 54.26
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.15 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-058
External Retaining Rings - 58x2x55 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip ID (A)
54.70
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-060
External Retaining Rings - 60x2x57 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip ID (A)
54.70
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.15 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-060
External Retaining Rings - 60x2x57 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
62.00
mm (Equiv. 2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip ID (A)
56.70 - 58.26
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-062
External Retaining Rings - 62x2x59 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
62.00
mm (Equiv. 2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip ID (A)
56.70 - 58.26
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.15 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-062
External Retaining Rings - 62x2x59 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
62.00
mm + 0.00 / - 0.07 (Equiv. 2.441 in.) |
Approx. Loose Circlip ID (A)
59.70 - 61.26
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-065
External Retaining Rings - 65x2.5x62 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
62.00
mm + 0.00 / - 0.07 (Equiv. 2.441 in.) |
Approx. Loose Circlip ID (A)
59.70 - 61.26
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.65 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-065
External Retaining Rings - 65x2.5x62 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
67.00
mm (Equiv. 2.638 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
64.00
mm + 0.00 / - 0.07 (Equiv. 2.52 in.) |
Approx. Loose Circlip ID (A)
61.40 - 62.96
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-067
External Retaining Rings - 67x2.5x64 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
67.00
mm (Equiv. 2.638 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
64.00
mm + 0.00 / - 0.07 (Equiv. 2.52 in.) |
Approx. Loose Circlip ID (A)
61.40 - 62.96
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.65 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-067
External Retaining Rings - 67x2.5x64 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
65.00
mm + 0.00 / - 0.07 (Equiv. 2.559 in.) |
Approx. Loose Circlip ID (A)
62.40 - 63.96
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-068
External Retaining Rings - 68x2.5x65 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
65.00
mm + 0.00 / - 0.07 (Equiv. 2.559 in.) |
Approx. Loose Circlip ID (A)
62.40 - 63.96
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.65 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-068
External Retaining Rings - 68x2.5x65 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (Equiv. 2.638 in.) |
Approx. Loose Circlip ID (A)
64.40 - 65.96
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-070
External Retaining Rings - 70x2.5x67 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (Equiv. 2.638 in.) |
Approx. Loose Circlip ID (A)
64.40 - 65.96
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.65 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-070
External Retaining Rings - 70x2.5x67 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
80.00
mm (Equiv. 3.15 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
76.50
mm + 0.00 / - 0.07 (Equiv. 3.012 in.) |
Approx. Loose Circlip ID (A)
73.40 - 74.96
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-080
External Retaining Rings - 80x2.5x76.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
80.00
mm (Equiv. 3.15 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
76.50
mm + 0.00 / - 0.07 (Equiv. 3.012 in.) |
Approx. Loose Circlip ID (A)
73.40 - 74.96
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 2.65 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-080
External Retaining Rings - 80x2.5x76.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
86.50
mm + 0.00 / - 0.08 (Equiv. 3.406 in.) |
Approx. Loose Circlip ID (A)
83.20 - 85.04
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E023 | ||||||
|
Part Number: DAK-090
External Retaining Rings - 90x3x86.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
86.50
mm + 0.00 / - 0.08 (Equiv. 3.406 in.) |
Approx. Loose Circlip ID (A)
83.20 - 85.04
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 3.15 mm Tool: PRS-E023 | ||||||
|
Part Number: DAK-090
External Retaining Rings - 90x3x86.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (Equiv. 3.799 in.) |
Approx. Loose Circlip ID (A)
93.20 - 95.04
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E032 | ||||||
|
Part Number: DAK-100
External Retaining Rings - 100x3x96.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (Equiv. 3.799 in.) |
Approx. Loose Circlip ID (A)
93.20 - 95.04
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 3.15 mm Tool: PRS-E032 | ||||||
|
Part Number: DAK-100
External Retaining Rings - 100x3x96.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
110.00
mm (Equiv. 4.331 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (Equiv. 4.173 in.) |
Approx. Loose Circlip ID (A)
101.70 - 103.54
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E032 | ||||||
|
Part Number: DAK-110
External Retaining Rings - 110x4x106 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
110.00
mm (Equiv. 4.331 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (Equiv. 4.173 in.) |
Approx. Loose Circlip ID (A)
101.70 - 103.54
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 4.15 mm Tool: PRS-E032 | ||||||
|
Part Number: DAK-110
External Retaining Rings - 110x4x106 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
120.00
mm (Equiv. 4.724 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.10 (Equiv. 4.567 in.) |
Approx. Loose Circlip ID (A)
111.70 - 113.54
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRS-E032 | ||||||
|
Part Number: DAK-120
External Retaining Rings - 120x4x116 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
120.00
mm (Equiv. 4.724 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.10 (Equiv. 4.567 in.) |
Approx. Loose Circlip ID (A)
111.70 - 113.54
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 4.15 mm Tool: PRS-E032 | ||||||
|
Part Number: DAK-120
External Retaining Rings - 120x4x116 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.10 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
121.70 - 123.54
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRR-E035 | ||||||
|
Part Number: DAK-130
External Retaining Rings - 130x4x126 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.10 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
121.70 - 123.54
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 4.15 mm Tool: PRR-E035 | ||||||
|
Part Number: DAK-130
External Retaining Rings - 130x4x126 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.10 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
131.70 - 133.54
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Tool: PRR-E035 | ||||||
|
Part Number: DAK-140
External Retaining Rings - 140x4x136 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.10 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
131.70 - 133.54
mm |
|
||
| Material: Carbon Spring Steel Groove Width (W): 4.15 mm Tool: PRR-E035 | ||||||
|
Part Number: DAK-140
External Retaining Rings - 140x4x136 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
