Collection: Retaining Rings - External - Circlips - Standard

Retaining Rings -> External -> Circlips -> Standard

There are 677 products in the sub-categories of Retaining Rings - External - Circlips - Standard. Scroll down or follow the link to Retaining Rings - External - Circlips - Standard in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

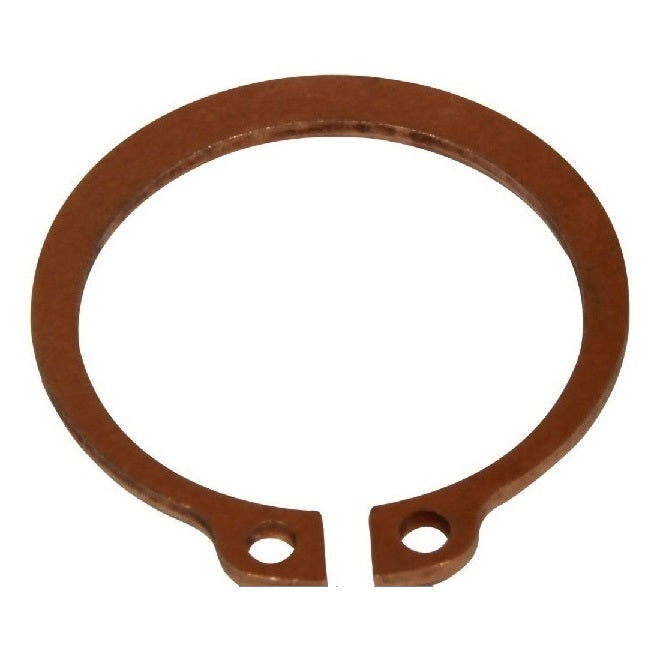

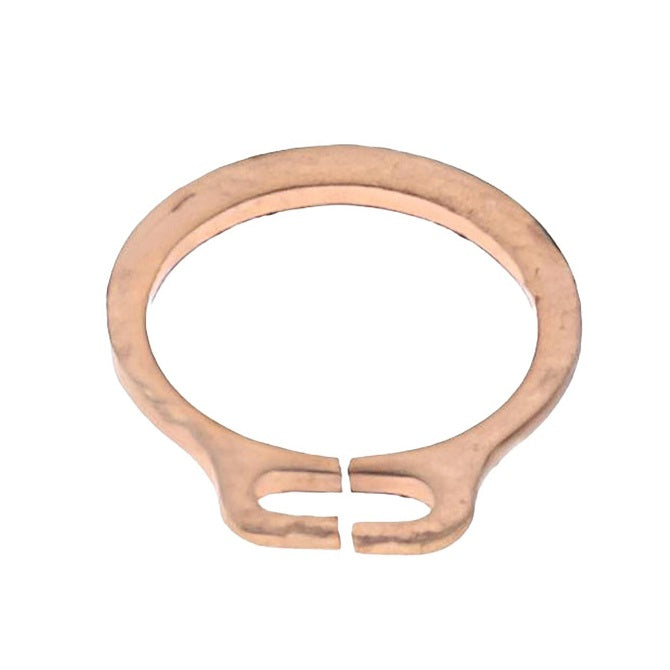

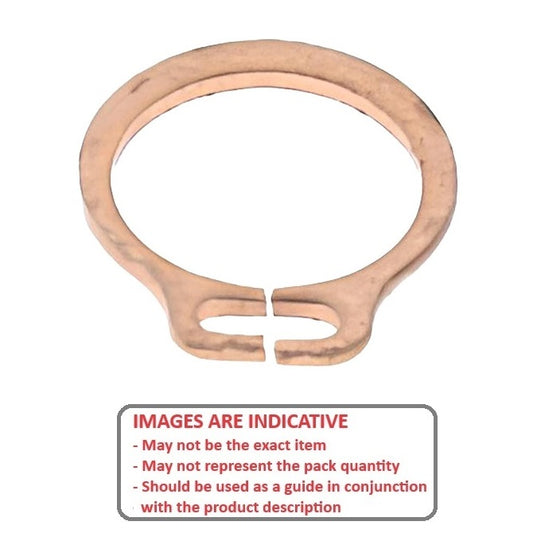

External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper

Retaining Rings - External - Circlips - Standard - Beryllium Copper

A selection of Beryllium Copper Standard Circlips External Retaining Rings. Imperial and...

Retaining Rings - External - Circlips - Standard - Beryllium Copper

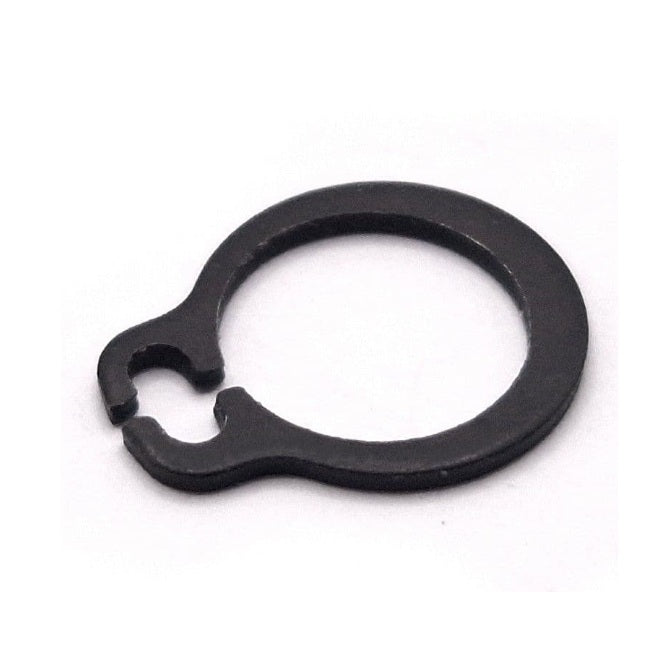

External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel

Retaining Rings - External - Circlips - Standard - Carbon Steel

A selection of Carbon Steel Standard Circlips External Retaining Rings. Imperial and...

Retaining Rings - External - Circlips - Standard - Carbon Steel

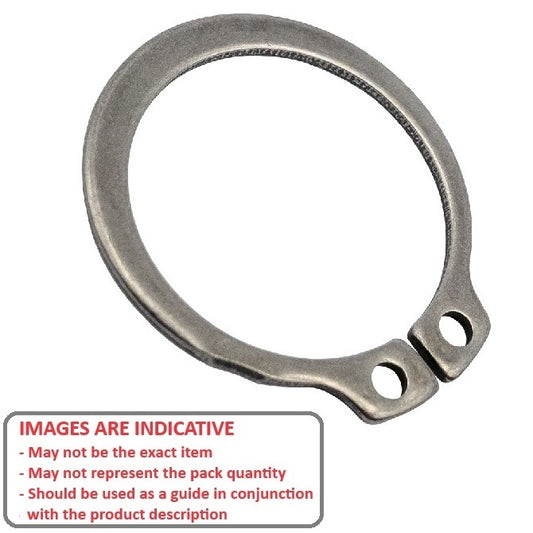

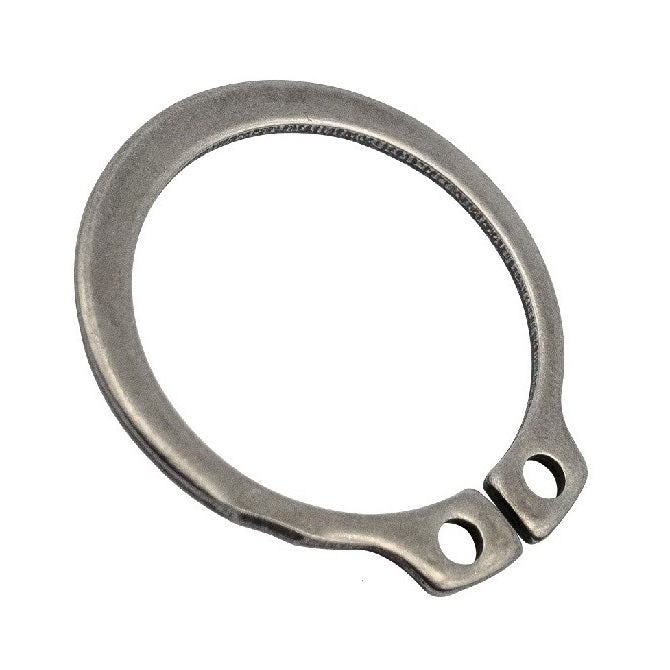

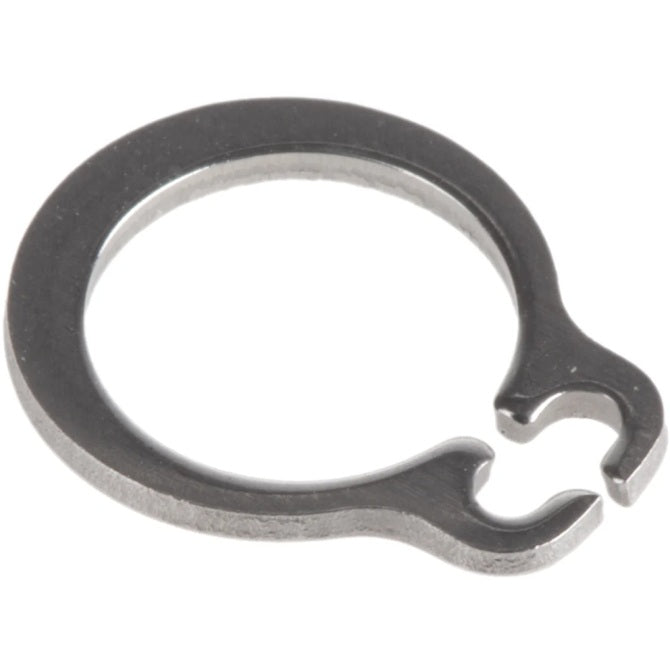

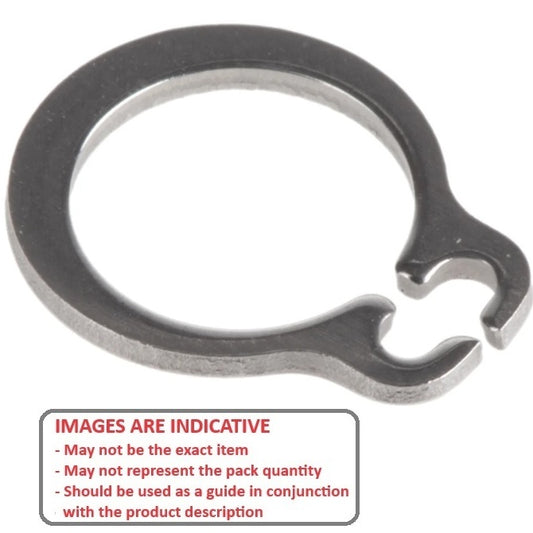

External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo

Retaining Rings - External - Circlips - Standard - Stainless Steel

A selection of Stainless Steel Standard Circlips External Retaining Rings. Imperial and...

Retaining Rings - External - Circlips - Standard - Stainless Steel

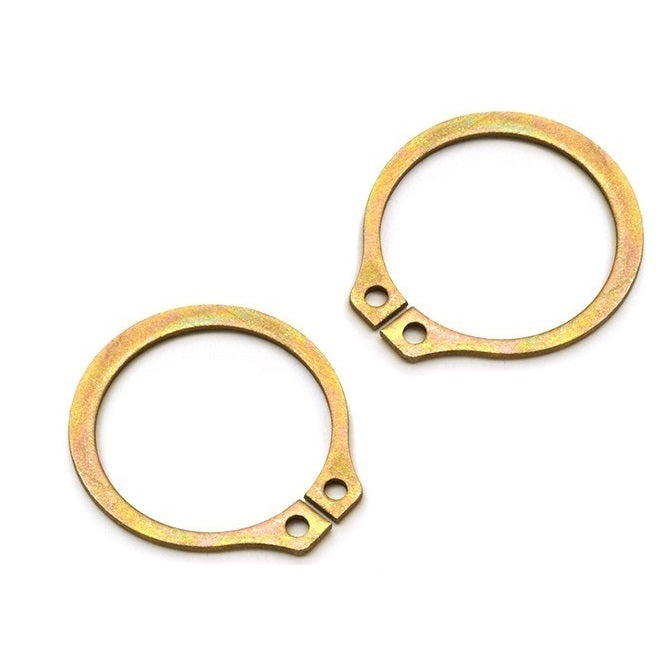

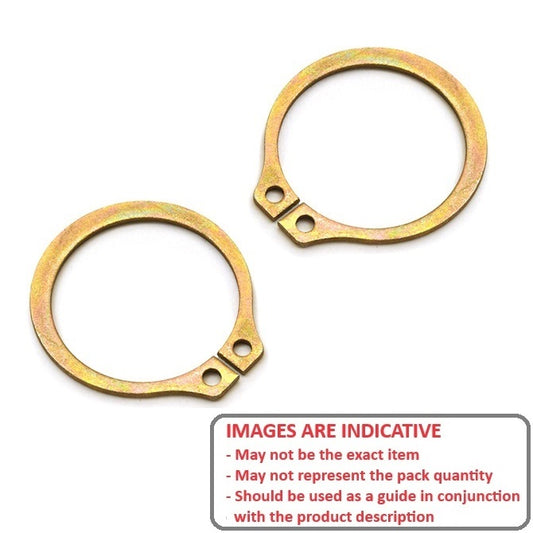

External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper

Retaining Rings - External - Circlips - Standard - Zinc Plated

A selection of Zinc Plated Standard Circlips External Retaining Rings. Imperial and...

Retaining Rings - External - Circlips - Standard - Zinc Plated

Category Details

This category includes various types of external retaining rings.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Standard category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 3.00 mm (Equiv. 0.118 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 2.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.11 in.)	Approx. Loose Circlip ID (A) 2.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 3.00 mm (Equiv. 0.118 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 2.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.11 in.)	Approx. Loose Circlip ID (A) 2.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip 1 pack (140 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140 Quantity Required 1 pack (140 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip 1 pack (140 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140 Quantity Required 1 pack (140 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip Sale CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.84 mm		Groove Width (W) 0.30 mm
Material: Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Beryllium Copper Circlip 12 units (240 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Per 20 Quantity Required 12 units (240 pcs) Available Now. Backorder if more than 12.
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.84 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Beryllium Copper Circlip 12 units (240 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Per 20 Quantity Required 12 units (240 pcs) Available Now. Backorder if more than 12.
CCE-00318-B (20 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Beryllium Copper Circlip CCE-00318-B (20 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Beryllium Copper Circlip Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per 12 Available Now
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Beryllium Copper Circlip 81 units (810 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 10 Quantity Required 81 units (810 pcs) Available Now. Backorder if more than 81.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Beryllium Copper Circlip 81 units (810 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 10 Quantity Required 81 units (810 pcs) Available Now. Backorder if more than 81.
CCE-00397-B (10 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Beryllium Copper Circlip CCE-00397-B (10 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Beryllium Copper Circlip Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 81 Available Now
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip 1 pack (70 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70 Quantity Required 1 pack (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip 1 pack (70 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70 Quantity Required 1 pack (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip 42 units (4200 pcs) Available Now \| Further orders can be expected around Wed, Dec 24, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 42 units (4200 pcs) Available Now. Backorder if more than 42.
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip 42 units (4200 pcs) Available Now \| Further orders can be expected around Wed, Dec 24, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 42 units (4200 pcs) Available Now. Backorder if more than 42.
CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 42 Available Now
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 Quantity Required 30 units (150 pcs) Available Now. Backorder if more than 30.
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 Quantity Required 30 units (150 pcs) Available Now. Backorder if more than 30.
CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.27 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Sale CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Beryllium Copper Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Beryllium Copper Circlip 20 units (400 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Per 20 Quantity Required 20 units (400 pcs) Available Now. Backorder if more than 20.
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.27 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Beryllium Copper Circlip 20 units (400 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Per 20 Quantity Required 20 units (400 pcs) Available Now. Backorder if more than 20.
CCE-00478-B (20 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Beryllium Copper Circlip CCE-00478-B (20 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Beryllium Copper Circlip Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per 20 Available Now
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.30 mm		Groove Width (W) 0.50 mm
Material: Steel Zinc Plated Yellow Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Steel Zinc Plated Yellow Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.30 mm
Material: Steel Zinc Plated Yellow Groove Width (W): 0.50 mm Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Steel Zinc Plated Yellow Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 43 units (430 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$8.48 AUD~~ Sale price $3.05 AUD Unit price per Per 10 Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 43 units (430 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$8.48 AUD~~ Sale price $3.05 AUD Unit price per Per 10 Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.05 AUD Regular price ~~$8.48 AUD~~ Sale price $3.05 AUD Unit price per 43 Available Now Sale
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 5.01 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 4.78 mm _{+/- 0.051} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.50 mm
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.01 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 4.78 mm _{+/- 0.051} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.01 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.78 mm _{+/- 0.051} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.46 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1.59 AUD Regular price ~~$3.54 AUD~~ Sale price $1.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 5.01 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.78 mm _{+/- 0.051} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.60 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1.59 AUD Regular price ~~$3.54 AUD~~ Sale price $1.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCE-00501-B (5 Pcs) --- External Retaining Rings - 5.01x0.38x4.78 mm Circlips - Beryllium Copper Circlip Sale CCE-00501-B (5 Pcs) --- External Retaining Rings - 5.01x0.38x4.78 mm Circlips - Beryllium Copper Circlip Regular price $1.59 AUD Regular price ~~$3.54 AUD~~ Sale price $1.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 5.56 mm (Equiv. 0.219 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.21 mm _{+/- 0.051} (Equiv. 0.205 in.)	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50 Quantity Required 1 pack (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.56 mm (Equiv. 0.219 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.21 mm _{+/- 0.051} (Equiv. 0.205 in.)	Approx. Loose Circlip ID (A) 5.00 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50 Quantity Required 1 pack (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip Sale CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 5.56 mm (Equiv. 0.219 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.21 mm _{+/- 0.051} (Equiv. 0.205 in.)	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Beryllium Copper Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00556-B (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $23.86 AUD Regular price ~~$55.80 AUD~~ Sale price $23.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 5.56 mm (Equiv. 0.219 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.21 mm _{+/- 0.051} (Equiv. 0.205 in.)	Approx. Loose Circlip ID (A) 5.00 mm
Material: Beryllium Copper Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00556-B (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $23.86 AUD Regular price ~~$55.80 AUD~~ Sale price $23.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCE-00556-B (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Beryllium Copper Circlip Sale CCE-00556-B (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Beryllium Copper Circlip Regular price $23.86 AUD Regular price ~~$55.80 AUD~~ Sale price $23.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.60 mm _{+/- 0.051} (Equiv. 0.22 in.)	Approx. Loose Circlip ID (A) 5.50 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.50 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00595-B (50 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.68 AUD Regular price ~~$53.00 AUD~~ Sale price $22.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.60 mm _{+/- 0.051} (Equiv. 0.22 in.)	Approx. Loose Circlip ID (A) 5.50 mm
Material: Beryllium Copper Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00595-B (50 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.68 AUD Regular price ~~$53.00 AUD~~ Sale price $22.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCE-00595-B (50 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip Sale CCE-00595-B (50 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip Regular price $22.68 AUD Regular price ~~$53.00 AUD~~ Sale price $22.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.60 mm _{+/- 0.051} (Equiv. 0.22 in.)	Approx. Loose Circlip ID (A) 5.50 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100 Quantity Required 3 units (300 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.60 mm _{+/- 0.051} (Equiv. 0.22 in.)	Approx. Loose Circlip ID (A) 5.50 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100 Quantity Required 3 units (300 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip Sale CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip 18 units (1800 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 100 Quantity Required 18 units (1800 pcs) Available Now. Backorder if more than 18.
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm
Material: Carbon Steel Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip 18 units (1800 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 100 Quantity Required 18 units (1800 pcs) Available Now. Backorder if more than 18.
CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 39 units (390 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 Quantity Required 39 units (390 pcs) Available Now. Backorder if more than 39.
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 39 units (390 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 Quantity Required 39 units (390 pcs) Available Now. Backorder if more than 39.
CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Beryllium Copper Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00635-B (50 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $27.95 AUD Regular price ~~$65.60 AUD~~ Sale price $27.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm
Material: Beryllium Copper Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00635-B (50 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Beryllium Copper Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $27.95 AUD Regular price ~~$65.60 AUD~~ Sale price $27.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCE-00635-B (50 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Beryllium Copper Circlip Sale CCE-00635-B (50 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Beryllium Copper Circlip Regular price $27.95 AUD Regular price ~~$65.60 AUD~~ Sale price $27.95 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Retaining Rings - External - Circlips - Standard

Category Details

Filter

Filter

Subscribe to our emails
