Collection: Plungers - Indexing Unthreaded Non Locking
Plungers -> Indexing Unthreaded Non LockingThere are 4 products in the sub-categories of Plungers - Indexing Unthreaded Non Locking. Browse the Plungers - Indexing Unthreaded Non Locking products table. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Indexing Unthreaded Non Locking - With Knob
A selection of With Knob Indexing Unthreaded Non Locking Plungers. Used to...
Plungers - Indexing Unthreaded Non Locking - Without Knob
A selection of Without Knob Indexing Unthreaded Non Locking Plungers. Used to...
Category Details
This category includes various types of indexing unthreaded non locking plungers.
- Spring-loaded pin used to lock a part into a specific position.
- To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Plungers - Indexing Unthreaded Non Locking category on the Small Parts & Bearings online store.
| Body Diameter (B) | Body Length (H) | Initial End Force | Final End Force | Tip Diameter (A) | Nose Length (G) |
Indicative Image |
|---|---|---|---|---|---|---|

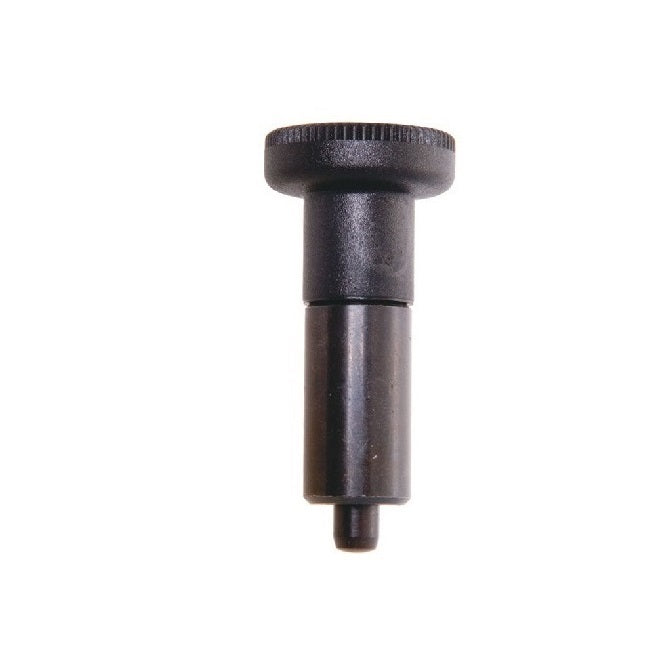

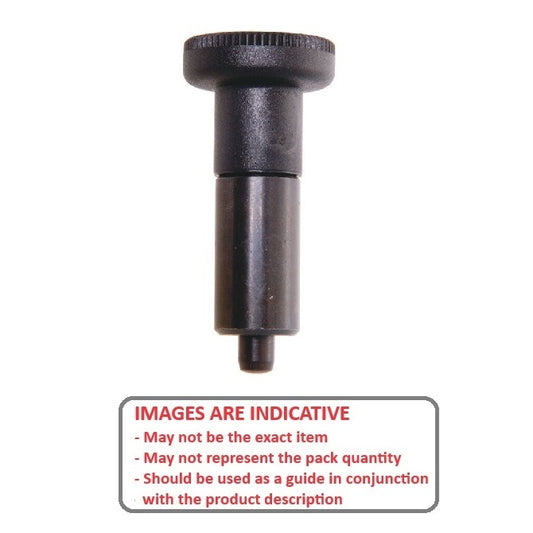

| Indexing Unthreaded Non Locking Plungers - 12x22 mm - 3.2 N With Knob - Steel Plunger | ||||||
|
Body Diameter (B)
12.00
mm (Equiv. 0.472 in.) |
Body Length (H)
22.0
mm (Equiv. 0.866 in.) |
Initial End Force
3.2
N |
Final End Force
7.3
N |
Tip Diameter (A)
5.0
mm |
Nose Length (G)
5.0
mm |
|
|
Material: Steel
Category: Plungers - Indexing Unthreaded Non Locking - With Knob |
||||||
|
Part Number: PLI-P-050120-21-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$35.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Body Diameter (B) | Body Length (H) | Initial End Force | Final End Force |
Indicative Image |
||
| Indexing Unthreaded Non Locking Plungers - 12x22 mm - 3.2 N With Knob - Steel Plunger | ||||||
|
Body Diameter (B)
12.00
mm (Equiv. 0.472 in.) |
Body Length (H)
22.0
mm (Equiv. 0.866 in.) |
Initial End Force
3.2
N |
Final End Force
7.3
N |
|
||
|
Material: Steel
Tip Diameter (A): 5.0 mm
Nose Length (G): 5.0 mm
Category: Plungers - Indexing Unthreaded Non Locking - With Knob |
||||||
|
Part Number: PLI-P-050120-21-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$35.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Unthreaded Non Locking Plungers - 14x26 mm - 3.2 N With Knob - Steel Plunger | ||||||
|
Body Diameter (B)
14.00
mm (Equiv. 0.551 in.) |
Body Length (H)
26.0
mm (Equiv. 1.024 in.) |
Initial End Force
3.2
N |
Final End Force
7.3
N |
Tip Diameter (A)
6.0
mm |
Nose Length (G)
6.0
mm |
|
|
Material: Steel
Category: Plungers - Indexing Unthreaded Non Locking - With Knob |
||||||
|
Part Number: PLI-P-060140-25-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$33.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Unthreaded Non Locking Plungers - 14x26 mm - 3.2 N With Knob - Steel Plunger | ||||||
|
Body Diameter (B)
14.00
mm (Equiv. 0.551 in.) |
Body Length (H)
26.0
mm (Equiv. 1.024 in.) |
Initial End Force
3.2
N |
Final End Force
7.3
N |
|
||
|
Material: Steel
Tip Diameter (A): 6.0 mm
Nose Length (G): 6.0 mm
Category: Plungers - Indexing Unthreaded Non Locking - With Knob |
||||||
|
Part Number: PLI-P-060140-25-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$33.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Unthreaded Non Locking Plungers - 18x12 mm - 5.4 N Without Knob - Steel Plunger | ||||||
|
Body Diameter (B)
18.00
mm (Equiv. 0.709 in.) |
Body Length (H)
12.0
mm (Equiv. 0.472 in.) |
Initial End Force
5.4
N |
Final End Force
14.1
N |
Tip Diameter (A)
8.0
mm |
Nose Length (G)
8.0
mm |
|
|
Material: Steel
Category: Plungers - Indexing Unthreaded Non Locking - Without Knob |
||||||
|
Part Number: PLI-P-080180-69-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$37.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Unthreaded Non Locking Plungers - 18x12 mm - 5.4 N Without Knob - Steel Plunger | ||||||
|
Body Diameter (B)
18.00
mm (Equiv. 0.709 in.) |
Body Length (H)
12.0
mm (Equiv. 0.472 in.) |
Initial End Force
5.4
N |
Final End Force
14.1
N |
|
||
|
Material: Steel
Tip Diameter (A): 8.0 mm
Nose Length (G): 8.0 mm
Category: Plungers - Indexing Unthreaded Non Locking - Without Knob |
||||||
|
Part Number: PLI-P-080180-69-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$37.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Unthreaded Non Locking Plungers - 18x34 mm - 5.4 N With Knob - Steel Plunger | ||||||
|
Body Diameter (B)
18.00
mm (Equiv. 0.709 in.) |
Body Length (H)
34.0
mm (Equiv. 1.339 in.) |
Initial End Force
5.4
N |
Final End Force
14.1
N |
Tip Diameter (A)
8.0
mm |
Nose Length (G)
8.0
mm |
|
|
Material: Steel
Category: Plungers - Indexing Unthreaded Non Locking - With Knob |
||||||
|
Part Number: PLI-P-080180-31-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$38.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Unthreaded Non Locking Plungers - 18x34 mm - 5.4 N With Knob - Steel Plunger | ||||||
|
Body Diameter (B)
18.00
mm (Equiv. 0.709 in.) |
Body Length (H)
34.0
mm (Equiv. 1.339 in.) |
Initial End Force
5.4
N |
Final End Force
14.1
N |
|
||
|
Material: Steel
Tip Diameter (A): 8.0 mm
Nose Length (G): 8.0 mm
Category: Plungers - Indexing Unthreaded Non Locking - With Knob |
||||||
|
Part Number: PLI-P-080180-31-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026 Regular price
$38.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
