Plungers - Indexing Unthreaded Non Locking - Without Knob

Plungers -> Indexing Unthreaded Non Locking -> Without Knob

There is only 1 product in the sub-categories of Plungers - Indexing Unthreaded Non Locking - Without Knob. Browse the Plungers - Indexing Unthreaded Non Locking - Without Knob products table.

Category Details

A selection of Without Knob Indexing Unthreaded Non Locking Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.
  • For use where the application calls for the plunger to be welded or bonded.
  • Body and pin are steel with black oxide finish.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing Unthreaded Non Locking - Without Knob category on the Small Parts & Bearings online store.
Body Diameter (B) Thread Length (K) Initial End Force Final End Force Tip Diameter (A) Nose Length (G) Indicative

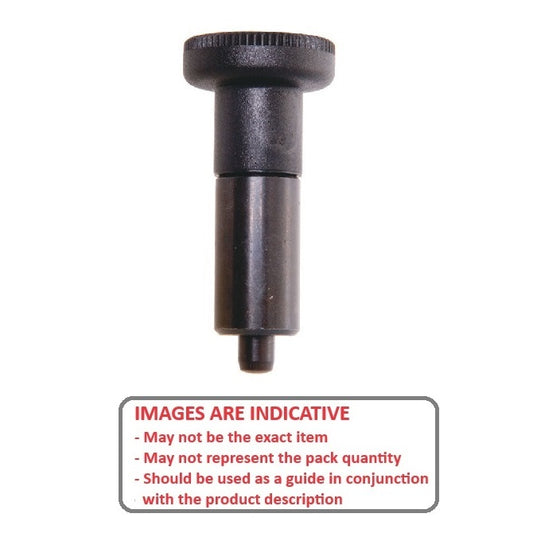

Indexing Unthreaded Non Locking Plungers - 18x12 mm - 5.4 N Without Knob - Steel Plunger
Body Diameter (B)
18.00
mm
Thread Length (K)
12.0
mm
Initial End Force
5.4
N
Final End Force
14.1
N
Tip Diameter (A)
8.0
mm
Nose Length (G)
8.0
mm
Indexing Unthreaded Non Locking Plungers - 18x12 mm - 5.4 N Without Knob - Steel
Material: Steel    Handle Length (G): 34.0 mm    Body Length (H): 12.0    Length (F): 69.0 mm
Part Number: PLI-P-080180-69-K-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$39.23 AUD
$39.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B) Thread Length (K) Initial End Force Final End Force Indicative
Indexing Unthreaded Non Locking Plungers - 18x12 mm - 5.4 N Without Knob - Steel Plunger
Body Diameter (B)
18.00
mm
Thread Length (K)
12.0
mm
Initial End Force
5.4
N
Final End Force
14.1
N
Indexing Unthreaded Non Locking Plungers - 18x12 mm - 5.4 N Without Knob - Steel
Material: Steel    Tip Diameter (A): 8.0 mm    Nose Length (G): 8.0 mm    Handle Length (G): 34.0 mm    Body Length (H): 12.0    Length (F): 69.0 mm
Part Number: PLI-P-080180-69-K-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$39.23 AUD
$39.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
