Plungers - Indexing Unthreaded Non Locking - With Knob

Plungers -> Indexing Unthreaded Non Locking -> With Knob

There are 3 products in the sub-categories of Plungers - Indexing Unthreaded Non Locking - With Knob. Browse the Plungers - Indexing Unthreaded Non Locking - With Knob products table.

Category Details

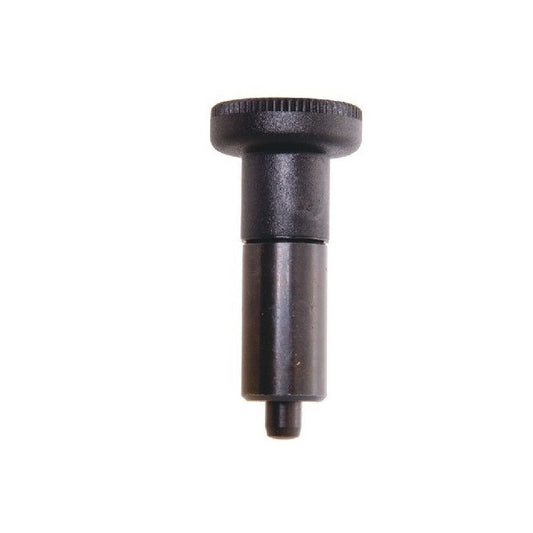

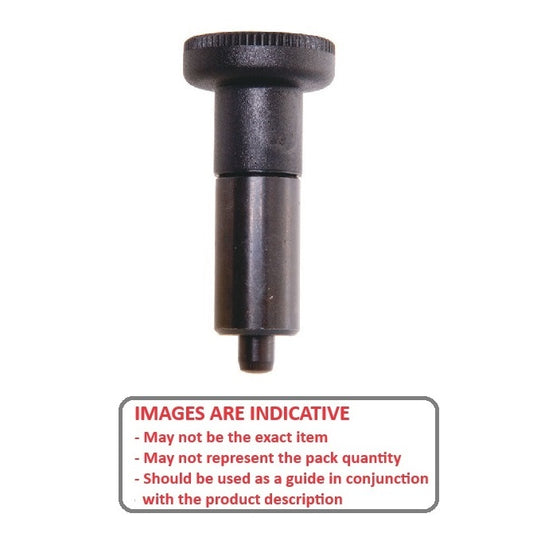

A selection of With Knob Indexing Unthreaded Non Locking Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • For use where the application calls for the plunger to be welded or bonded.
  • Body and pin are steel with black oxide finish.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing Unthreaded Non Locking - With Knob category on the Small Parts & Bearings online store.
Body Diameter (B) Body Length (H) Initial End Force Final End Force Tip Diameter (A) Nose Length (G) Indicative
Body Diameter (B)
12.00
mm

(Equiv. 0.472 in.)
Body Length (H)
22.0
mm

(Equiv. 0.866 in.)
Initial End Force
3.2
N
Final End Force
7.3
N
Tip Diameter (A)
5.0
mm
Nose Length (G)
5.0
mm
Indexing Unthreaded Non Locking Plungers - 12x22 mm - 3.2 N With Knob - Steel
Material: Steel    Knob Diameter (C): 21.0 mm    Length (F): 45.0 mm
Part Number: PLI-P-050120-21-K-C
Indexing Unthreaded Non Locking Plungers - 12x22 mm - 3.2 N With Knob - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$35.50 AUD
$35.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B) Body Length (H) Initial End Force Final End Force Indicative
Body Diameter (B)
12.00
mm

(Equiv. 0.472 in.)
Body Length (H)
22.0
mm

(Equiv. 0.866 in.)
Initial End Force
3.2
N
Final End Force
7.3
N
Indexing Unthreaded Non Locking Plungers - 12x22 mm - 3.2 N With Knob - Steel
Material: Steel    Tip Diameter (A): 5.0 mm    Nose Length (G): 5.0 mm    Knob Diameter (C): 21.0 mm    Length (F): 45.0 mm
Part Number: PLI-P-050120-21-K-C
Indexing Unthreaded Non Locking Plungers - 12x22 mm - 3.2 N With Knob - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$35.50 AUD
$35.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B)
14.00
mm

(Equiv. 0.551 in.)
Body Length (H)
26.0
mm

(Equiv. 1.024 in.)
Initial End Force
3.2
N
Final End Force
7.3
N
Tip Diameter (A)
6.0
mm
Nose Length (G)
6.0
mm
Indexing Unthreaded Non Locking Plungers - 14x26 mm - 3.2 N With Knob - Steel
Material: Steel    Knob Diameter (C): 25.0 mm    Length (F): 54.5 mm
Part Number: PLI-P-060140-25-K-C
Indexing Unthreaded Non Locking Plungers - 14x26 mm - 3.2 N With Knob - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$33.59 AUD
$40.31 AUD $33.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B)
14.00
mm

(Equiv. 0.551 in.)
Body Length (H)
26.0
mm

(Equiv. 1.024 in.)
Initial End Force
3.2
N
Final End Force
7.3
N
Indexing Unthreaded Non Locking Plungers - 14x26 mm - 3.2 N With Knob - Steel
Material: Steel    Tip Diameter (A): 6.0 mm    Nose Length (G): 6.0 mm    Knob Diameter (C): 25.0 mm    Length (F): 54.5 mm
Part Number: PLI-P-060140-25-K-C
Indexing Unthreaded Non Locking Plungers - 14x26 mm - 3.2 N With Knob - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$33.59 AUD
$40.31 AUD $33.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B)
18.00
mm

(Equiv. 0.709 in.)
Body Length (H)
34.0
mm

(Equiv. 1.339 in.)
Initial End Force
5.4
N
Final End Force
14.1
N
Tip Diameter (A)
8.0
mm
Nose Length (G)
8.0
mm
Indexing Unthreaded Non Locking Plungers - 18x34 mm - 5.4 N With Knob - Steel
Material: Steel    Knob Diameter (C): 31.0 mm    Length (F): 69.0 mm
Part Number: PLI-P-080180-31-K-C
Indexing Unthreaded Non Locking Plungers - 18x34 mm - 5.4 N With Knob - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$38.50 AUD
$46.20 AUD $38.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (B)
18.00
mm

(Equiv. 0.709 in.)
Body Length (H)
34.0
mm

(Equiv. 1.339 in.)
Initial End Force
5.4
N
Final End Force
14.1
N
Indexing Unthreaded Non Locking Plungers - 18x34 mm - 5.4 N With Knob - Steel
Material: Steel    Tip Diameter (A): 8.0 mm    Nose Length (G): 8.0 mm    Knob Diameter (C): 31.0 mm    Length (F): 69.0 mm
Part Number: PLI-P-080180-31-K-C
Indexing Unthreaded Non Locking Plungers - 18x34 mm - 5.4 N With Knob - Steel Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$38.50 AUD
$46.20 AUD $38.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
