Pitch	Teeth	Lead Angle	Direction	Bore (B)	Overall Length (l)	Indicative Image
Pitch Module 1.0	Teeth Worm - 2 Start	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 25.000	Overall Length (l) 25.00
Material: Carbon Steel Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H8) with Keyway
Part Number: WM2R-100-060-250-CS Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $37.59 AUD Regular price Sale price $37.59 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Pitch	Teeth	Lead Angle	Direction	Indicative Image
Pitch Module 1.0	Teeth Worm - 2 Start	Lead Angle 7 Deg 11 Min	Direction Right
Material: Carbon Steel Bore (B): 25.000 Overall Length (l): 25.00 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H8) with Keyway
Part Number: WM2R-100-060-250-CS Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $37.59 AUD Regular price Sale price $37.59 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
WM2R-100-060-250-CS --- Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel WM2R-100-060-250-CS --- Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel Regular price $37.59 AUD Regular price Sale price $37.59 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

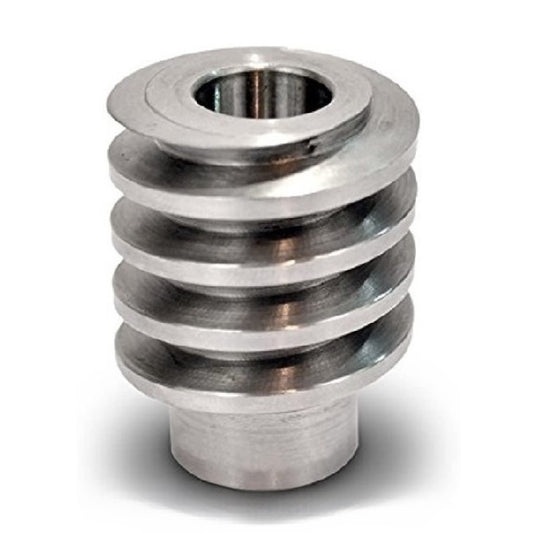

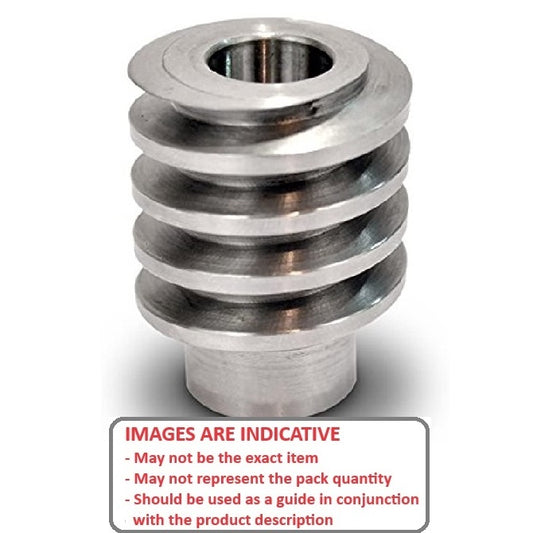

Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 32.000	Overall Length (l) 32.00
Material: 303 Stainless Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM1R-100-060-320-S3 Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $123.14 AUD Regular price Sale price $123.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Right
Material: 303 Stainless Bore (B): 32.000 Overall Length (l): 32.00 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM1R-100-060-320-S3 Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $123.14 AUD Regular price Sale price $123.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
WM1R-100-060-320-S3 --- Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - 303 Stainless WM1R-100-060-320-S3 --- Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - 303 Stainless Regular price $123.14 AUD Regular price Sale price $123.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 32.000	Overall Length (l) 32.00
Material: Carbon Steel Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM1R-100-060-320-CS Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Right
Material: Carbon Steel Bore (B): 32.000 Overall Length (l): 32.00 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM1R-100-060-320-CS Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
WM1R-100-060-320-CS --- Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Carbon Steel WM1R-100-060-320-CS --- Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Carbon Steel Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth Worm - 2 Start	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 32.000	Overall Length (l) 32.00
Material: 303 Stainless Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM2R-100-060-320-S3 Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $123.14 AUD Regular price Sale price $123.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth Worm - 2 Start	Lead Angle 7 Deg 11 Min	Direction Right
Material: 303 Stainless Bore (B): 32.000 Overall Length (l): 32.00 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM2R-100-060-320-S3 Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $123.14 AUD Regular price Sale price $123.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
WM2R-100-060-320-S3 --- Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - 303 Stainless WM2R-100-060-320-S3 --- Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - 303 Stainless Regular price $123.14 AUD Regular price Sale price $123.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth Worm - 2 Start	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 32.000	Overall Length (l) 32.00
Material: Carbon Steel Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM2R-100-060-320-CS Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth Worm - 2 Start	Lead Angle 7 Deg 11 Min	Direction Right
Material: Carbon Steel Bore (B): 32.000 Overall Length (l): 32.00 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM2R-100-060-320-CS Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
WM2R-100-060-320-CS --- Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel WM2R-100-060-320-CS --- Worm Gears - Pitch Module 1.0 - Worm - 2 Start tooth - 7 Deg 11 Min Module 1.0 - Carbon Steel Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

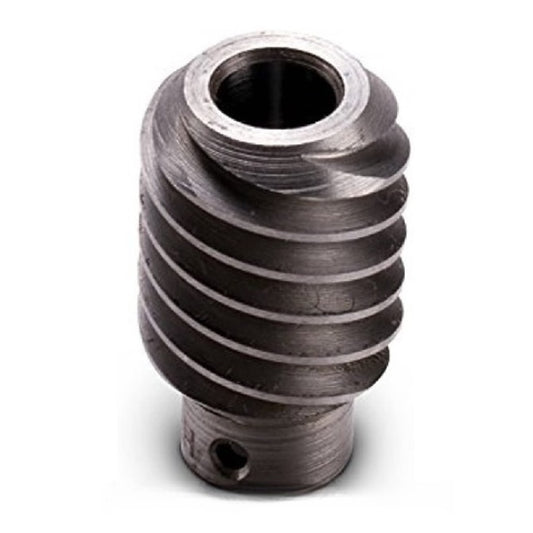

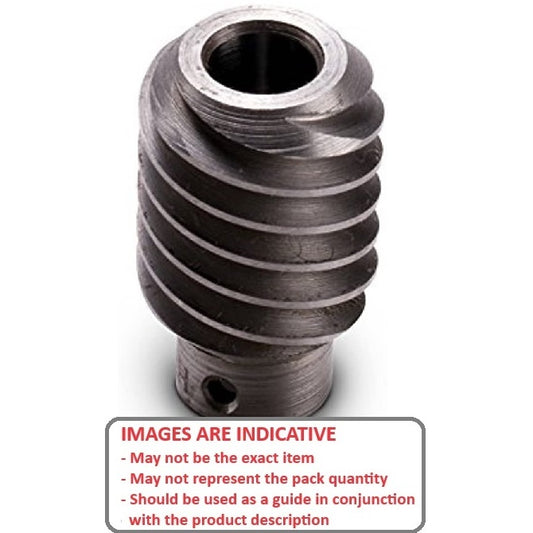

Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Left Hand	Bore (B) 13mm Shaft (25 / 50) Refer Notes.	Overall Length (l) 100.000
Material: Steel Pitch Diameter (C): 16.000 mm Face Width (fw): 25.000 mm Bore Type: Finished Hub Diameter (Dh): 13.000 mm Locking Type: Integral Shaft
Part Number: WM1L-100-100S130-ST Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Steel Contact Us \| Special Order Only - Please contact us if you need a large quantity
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Left Hand
Material: Steel Bore (B): 13mm Shaft (25 / 50) Refer Notes. Overall Length (l): 100.000 Pitch Diameter (C): 16.000 mm Face Width (fw): 25.000 mm Bore Type: Finished Hub Diameter (Dh): 13.000 mm Locking Type: Integral Shaft
Part Number: WM1L-100-100S130-ST Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Steel Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Thu, Jun 08, 2028
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Left Hand	Bore (B) 6.000	Overall Length (l) 32.000
Material: Steel Pitch Diameter (C): 16.000 mm Face Width (fw): 22.000 mm Bore Type: Finished Hub Diameter (Dh): 15.700 mm Locking Type: Set Screw
Part Number: WM1L-100-032HS060-ST Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Steel Contact Us \| Special Order Only - Please contact us if you need a large quantity
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Left Hand
Material: Steel Bore (B): 6.000 Overall Length (l): 32.000 Pitch Diameter (C): 16.000 mm Face Width (fw): 22.000 mm Bore Type: Finished Hub Diameter (Dh): 15.700 mm Locking Type: Set Screw
Part Number: WM1L-100-032HS060-ST Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Steel Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Thu, Jun 08, 2028
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Left Hand	Bore (B) 8.000	Overall Length (l) 25.000
Material: Steel Pitch Diameter (C): 16.000 mm Face Width (fw): 25.000 mm Bore Type: Finished Locking Type: No Hub
Part Number: WM1L-100-025NPK080-ST Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Steel Contact Us \| Special Order Only - Please contact us if you need a large quantity
Pitch Module 1.0	Teeth Worm - 1 Start	Lead Angle 3 Deg 35 Min	Direction Left Hand
Material: Steel Bore (B): 8.000 Overall Length (l): 25.000 Pitch Diameter (C): 16.000 mm Face Width (fw): 25.000 mm Bore Type: Finished Locking Type: No Hub
Part Number: WM1L-100-025NPK080-ST Worm Gears - Pitch Module 1.0 - Worm - 1 Start tooth - 3 Deg 35 Min Module 1.0 - Steel Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Thu, Jun 08, 2028

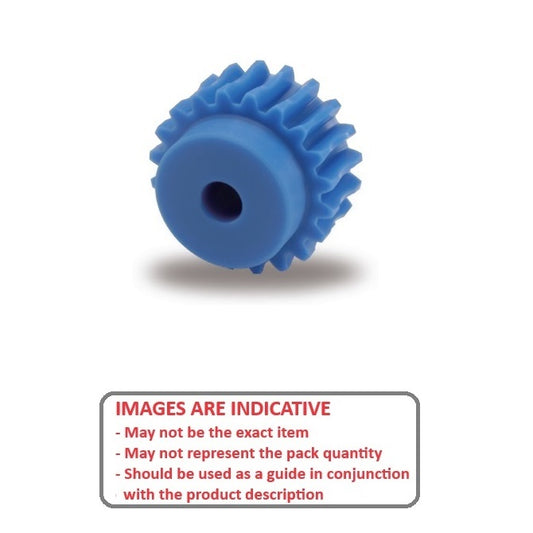

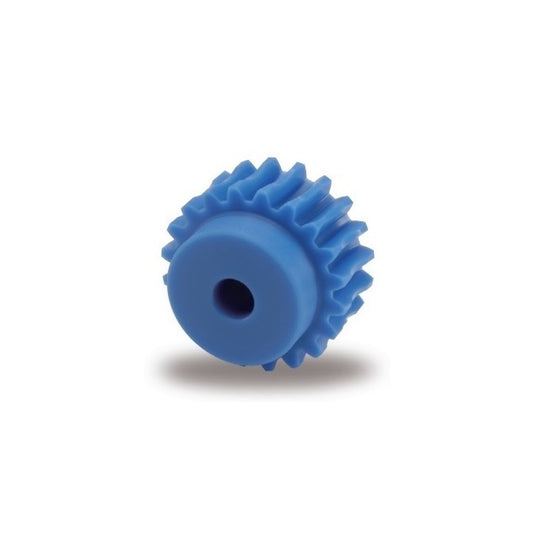

Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right Hand	Bore (B) 6.000	Overall Length (l) 20.000
Material: Nylon (Polyamide 6/6) Pitch Diameter (C): 20.00 mm Face Width (fw): 10.000 mm Bore Type: Finished Hub Diameter (Dh): 16.00 mm Locking Type: No Set Screw
Part Number: WG1R-100-020-060-NY Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Nylon Polyamide 6/6 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right Hand
Material: Nylon (Polyamide 6/6) Bore (B): 6.000 Overall Length (l): 20.000 Pitch Diameter (C): 20.00 mm Face Width (fw): 10.000 mm Bore Type: Finished Hub Diameter (Dh): 16.00 mm Locking Type: No Set Screw
Part Number: WG1R-100-020-060-NY Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Nylon Polyamide 6/6 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
WG1R-100-020-060-NY --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Nylon Polyamide 6/6 Sale WG1R-100-020-060-NY --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Nylon Polyamide 6/6 Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Excludes GST and overseas Taxes & Duties 1 Available Now Sale

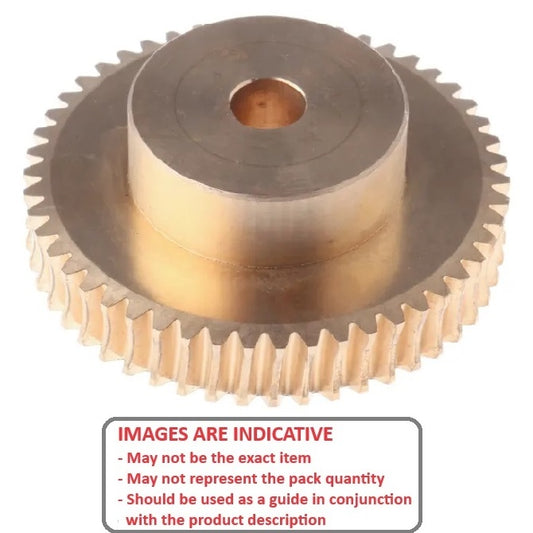

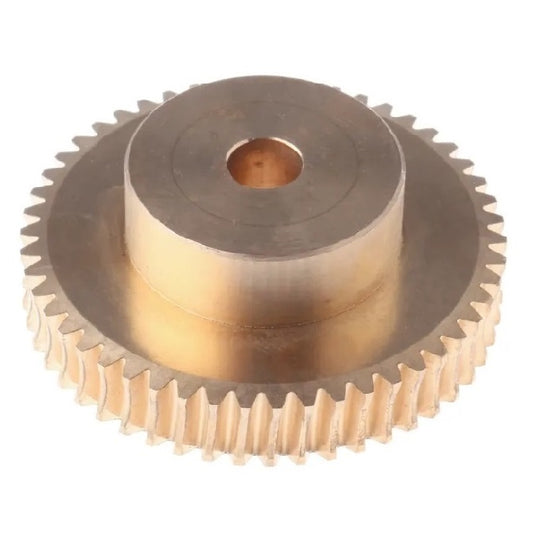

Pitch Module 1.0	Teeth 50	Lead Angle 3 Deg 35 Min	Direction Left Hand	Bore (B) 8.000	Overall Length (l) 18.000
Material: Aluminium Bronze Pitch Diameter (C): 50.00 mm Face Width (fw): 10.000 mm Bore Type: Finished Hub Diameter (Dh): 30.00 mm Locking Type: Set Screw
Part Number: WG1L-100-050-080-ALB Worm Gears - Pitch Module 1.0 - 50 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $50.00 AUD Regular price ~~$95.00 AUD~~ Sale price $50.00 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Pitch Module 1.0	Teeth 50	Lead Angle 3 Deg 35 Min	Direction Left Hand
Material: Aluminium Bronze Bore (B): 8.000 Overall Length (l): 18.000 Pitch Diameter (C): 50.00 mm Face Width (fw): 10.000 mm Bore Type: Finished Hub Diameter (Dh): 30.00 mm Locking Type: Set Screw
Part Number: WG1L-100-050-080-ALB Worm Gears - Pitch Module 1.0 - 50 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $50.00 AUD Regular price ~~$95.00 AUD~~ Sale price $50.00 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
WG1L-100-050-080-ALB --- Worm Gears - Pitch Module 1.0 - 50 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze Sale WG1L-100-050-080-ALB --- Worm Gears - Pitch Module 1.0 - 50 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze Regular price $50.00 AUD Regular price ~~$95.00 AUD~~ Sale price $50.00 AUD Unit price per Excludes GST and overseas Taxes & Duties 1 Available Now Sale
