Gears - Spur - Standard - Module 3 Plastic

Gears -> Spur -> Standard -> Module 3 Plastic

There are 2 products in the sub-categories of Gears - Spur - Standard - Module 3 Plastic. Browse the Gears - Spur - Standard - Module 3 Plastic products table.

Category Details

A selection of Module 3 Plastic Standard Spur Gears. PCD in mm = No. of Teeth x 3. 20 Degree Pressure Angle

  • The diameter increases by 3mm per tooth
  • Module 1. Approximately 9.42mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Standard - Module 3 Plastic category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
15

Pitch Circle Diameter (PD)
45.00
mm

(Equiv. 1.772 in.)
Bore (d)
12.000
mm

(Equiv. 0.472 in.)
Outside Diameter (OD)
51.000
mm
Face Width (FW)
19.000
mm
Type
Hubbed
Spur Gears - 15 tooth - 45x12 mm Hubbed - Acetal - No Insert Gear
Material: Acetal - No Insert    Locking Method: None    Quality: Commercial - Molded
Part Number: G045B-015-M3-190-120-A-P (2 Pcs)
Spur Gears - 15 tooth - 45x12 mm Hubbed - Acetal - No Insert Gear
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
15

Pitch Circle Diameter (PD)
45.00
mm

(Equiv. 1.772 in.)
Bore (d)
12.000
mm

(Equiv. 0.472 in.)
Outside Diameter (OD)
51.000
mm
Spur Gears - 15 tooth - 45x12 mm Hubbed - Acetal - No Insert Gear
Material: Acetal - No Insert    Face Width (FW): 19.000 mm    Type: Hubbed    Locking Method: None    Quality: Commercial - Molded
Part Number: G045B-015-M3-190-120-A-P (2 Pcs)
Spur Gears - 15 tooth - 45x12 mm Hubbed - Acetal - No Insert Gear
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
33

Pitch Circle Diameter (PD)
99.00
mm

(Equiv. 3.898 in.)
Bore (d)
16.000
mm

(Equiv. 0.63 in.)
Outside Diameter (OD)
105.000
mm
Face Width (FW)
19.000
mm
Type
Hubbed

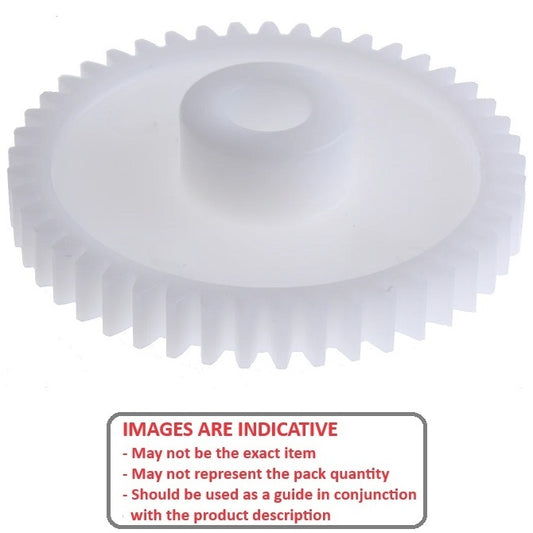

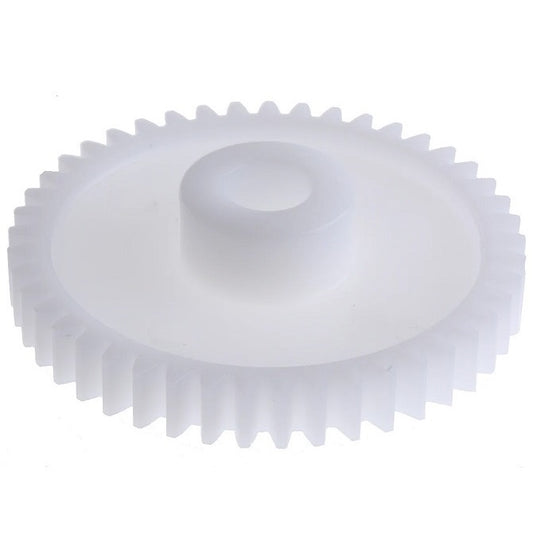

Spur Gears - 33 tooth - 99x16 mm Hubbed - Acetal - No Insert Gear
Material: Acetal - No Insert    Locking Method: None    Quality: Commercial - Molded
Part Number: G099B-033-M3-190-160-A-P
Spur Gears - 33 tooth - 99x16 mm Hubbed - Acetal - No Insert Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
33

Pitch Circle Diameter (PD)
99.00
mm

(Equiv. 3.898 in.)
Bore (d)
16.000
mm

(Equiv. 0.63 in.)
Outside Diameter (OD)
105.000
mm
Spur Gears - 33 tooth - 99x16 mm Hubbed - Acetal - No Insert Gear
Material: Acetal - No Insert    Face Width (FW): 19.000 mm    Type: Hubbed    Locking Method: None    Quality: Commercial - Molded
Part Number: G099B-033-M3-190-160-A-P
Spur Gears - 33 tooth - 99x16 mm Hubbed - Acetal - No Insert Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
