Gears - Spur - Standard - Module 0.75 Brass

Gears -> Spur -> Standard -> Module 0.75 Brass

There is only 1 product in the sub-categories of Gears - Spur - Standard - Module 0.75 Brass. Browse the Gears - Spur - Standard - Module 0.75 Brass products table.

Category Details

A selection of Module 0.75 Brass Standard Spur Gears. PCD in mm = No. of Teeth x 0.75. 20 Degree Pressure Angle.

  • The diameter increases by 0.75mm per tooth
  • Module 0.7. Approximately 2.35mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Standard - Module 0.75 Brass category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
24

Pitch Circle Diameter (PD)
18.00
mm

(Equiv. 0.709 in.)
Bore (d)
6.000
mm
H7
(Equiv. 0.236 in.)
Outside Diameter (OD)
19.500
mm
Face Width (FW)
3.000
mm
Type
Hubbed

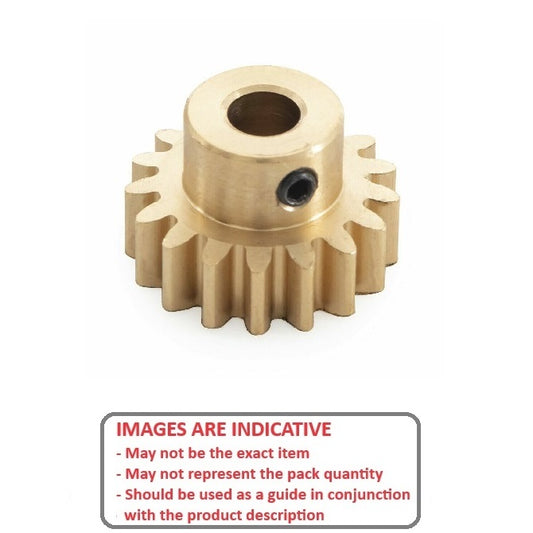

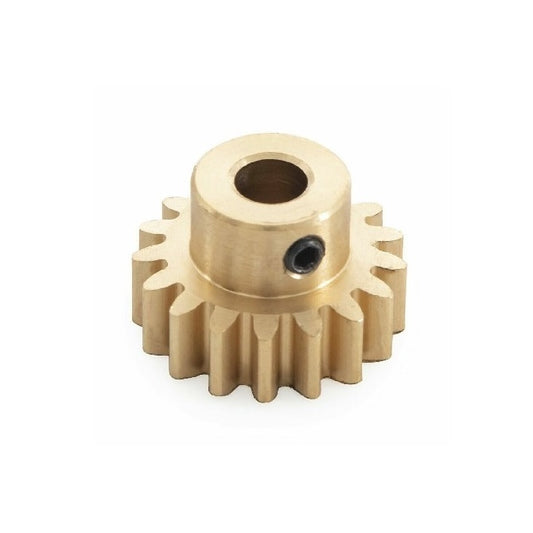

Spur Gears - 24 tooth - 18x6 mm Hubbed - Brass Gear
Material: Brass    Locking Method: Set Screw    Quality: Commercial
Part Number: G018B-024-M075-030-060-B-G
Spur Gears - 24 tooth - 18x6 mm Hubbed - Brass Gear
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$29.86 AUD
$29.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
24

Pitch Circle Diameter (PD)
18.00
mm

(Equiv. 0.709 in.)
Bore (d)
6.000
mm
H7
(Equiv. 0.236 in.)
Outside Diameter (OD)
19.500
mm
Spur Gears - 24 tooth - 18x6 mm Hubbed - Brass Gear
Material: Brass    Face Width (FW): 3.000 mm    Type: Hubbed    Locking Method: Set Screw    Quality: Commercial
Part Number: G018B-024-M075-030-060-B-G
Spur Gears - 24 tooth - 18x6 mm Hubbed - Brass Gear
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$29.86 AUD
$29.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
