Gears - Spur - Standard - 64DP Aluminium

Gears -> Spur -> Standard -> 64DP Aluminium

There is only 1 product in the sub-categories of Gears - Spur - Standard - 64DP Aluminium. Browse the Gears - Spur - Standard - 64DP Aluminium products table.

Category Details

A selection of 64DP Aluminium Standard Spur Gears. PCD in mm = No. of Teeth x 0.3969 (1/64 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.

  • The diameter increases by 1 inch for every 64 teeth
  • 64 Diametrical Pitch. Approx 1.25mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Standard - 64DP Aluminium category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
21

Pitch Circle Diameter (PD)
8.33
mm

(Equiv. 0.328 in.)
Bore (d)
3.175
mm

(Equiv. 0.125 in.)
Outside Diameter (OD)
9.126
mm
Face Width (FW)
3.18
mm
Type
Hubbed

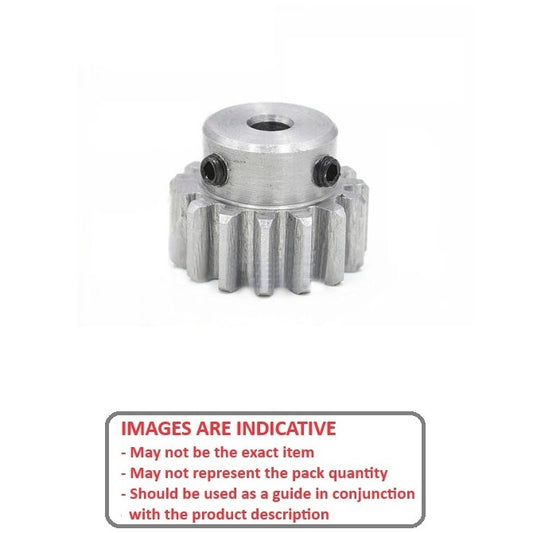

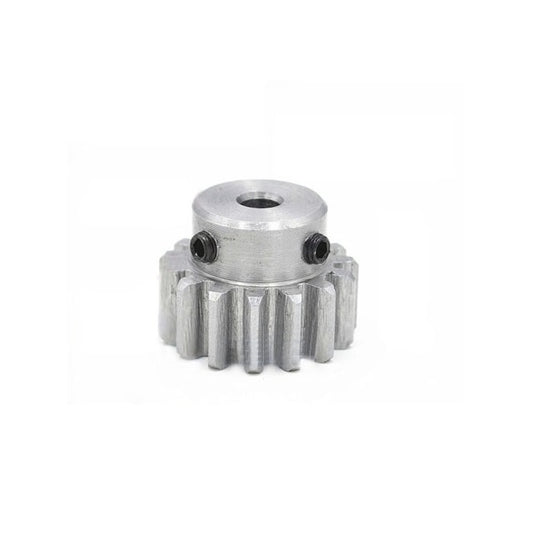

Spur Gears - 21 tooth - 8.33x3.175 mm Hubbed - Aluminium Alloy 2024 Gear
Material: Aluminium Alloy 2024    Hub Diameter (D1): 7.93 mm    Hub Projection (HL): 4.76 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G008B-021-D64-032-032-AL-G
Spur Gears - 21 tooth - 8.33x3.175 mm Hubbed - Aluminium Alloy 2024 Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
21

Pitch Circle Diameter (PD)
8.33
mm

(Equiv. 0.328 in.)
Bore (d)
3.175
mm

(Equiv. 0.125 in.)
Outside Diameter (OD)
9.126
mm
Spur Gears - 21 tooth - 8.33x3.175 mm Hubbed - Aluminium Alloy 2024 Gear
Material: Aluminium Alloy 2024    Face Width (FW): 3.18 mm    Type: Hubbed    Hub Diameter (D1): 7.93 mm    Hub Projection (HL): 4.76 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G008B-021-D64-032-032-AL-G
Spur Gears - 21 tooth - 8.33x3.175 mm Hubbed - Aluminium Alloy 2024 Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
