Collection: Gears - Spur - Standard - 16DP
Gears -> Spur -> Standard -> 16DPThere are 10 products in the sub-categories of Gears - Spur - Standard - 16DP. Browse the Gears - Spur - Standard - 16DP products table. To narrow down the selection, please choose a sub-category from the links below.
Gears - Spur - Standard - 16DP - 14.5 Degree Steel
A selection of 14.5 Degree Steel 16DP Standard Spur Gears. PCD in...
Gears - Spur - Standard - 16DP - 20 Degree Plastic
A selection of 20 Degree Plastic 16DP Standard Spur Gears. PCD in...
Category Details
Combined category including various types of spur gears.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Gears - Spur - Standard - 16DP category on the Small Parts & Bearings online store.
| Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) | Face Width (FW) | Type |
Indicative Image |
|---|---|---|---|---|---|---|
|
Number of Teeth
12
|
Pitch Circle Diameter (PD)
19.050
mm (Equiv. 0.75 in.) |
Bore (d)
9.525
mm (Equiv. 0.375 in.) |
Outside Diameter (OD)
22.225
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 14.224 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G019B-012-V16-127-095-CG
Spur Gears - 12 tooth - 19.05x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$83.32 AUD
Regular price
Unit price
per
Each
|
||||||
| Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) |
Indicative Image |
||
|
Number of Teeth
12
|
Pitch Circle Diameter (PD)
19.050
mm (Equiv. 0.75 in.) |
Bore (d)
9.525
mm (Equiv. 0.375 in.) |
Outside Diameter (OD)
22.225
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 14.224 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G019B-012-V16-127-095-CG
Spur Gears - 12 tooth - 19.05x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$83.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
14
|
Pitch Circle Diameter (PD)
22.225
mm (Equiv. 0.875 in.) |
Bore (d)
9.525
mm (Equiv. 0.375 in.) |
Outside Diameter (OD)
25.400
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 17.526 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G022B-014-V16-127-095-CG
Spur Gears - 14 tooth - 22.225x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$91.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
14
|
Pitch Circle Diameter (PD)
22.225
mm (Equiv. 0.875 in.) |
Bore (d)
9.525
mm (Equiv. 0.375 in.) |
Outside Diameter (OD)
25.400
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 17.526 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G022B-014-V16-127-095-CG
Spur Gears - 14 tooth - 22.225x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$91.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
16
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
28.575
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel
Hub Diameter (D1): 20.574 mm
Hub Projection (HL): 11.176 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G025B-016-V16-127-127-CG
Spur Gears - 16 tooth - 25.4x12.7 mm Hubbed - Steel Gear 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$36.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
16
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
28.575
mm |
|
||
|
Material: Steel
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 20.574 mm
Hub Projection (HL): 11.176 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G025B-016-V16-127-127-CG
Spur Gears - 16 tooth - 25.4x12.7 mm Hubbed - Steel Gear 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$36.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
20
|
Pitch Circle Diameter (PD)
31.750
mm (Equiv. 1.25 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
34.925
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 24.384 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G032B-020-V16-127-127-CG
Spur Gears - 20 tooth - 31.75x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$153.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
20
|
Pitch Circle Diameter (PD)
31.750
mm (Equiv. 1.25 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
34.925
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 24.384 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G032B-020-V16-127-127-CG
Spur Gears - 20 tooth - 31.75x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$153.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
24
|
Pitch Circle Diameter (PD)
38.100
mm (Equiv. 1.5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
41.275
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 30.480 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G038B-024-V16-127-127-CG
Spur Gears - 24 tooth - 38.1x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$143.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
24
|
Pitch Circle Diameter (PD)
38.100
mm (Equiv. 1.5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
41.275
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 30.480 mm
Hub Projection (HL): 11.176 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G038B-024-V16-127-127-CG
Spur Gears - 24 tooth - 38.1x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$143.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
32
|
Pitch Circle Diameter (PD)
50.800
mm (Equiv. 2 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
53.975
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 43.180 mm
Hub Projection (HL): 12.700 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G051B-032-V16-127-127-CG
Spur Gears - 32 tooth - 50.8x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$212.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
32
|
Pitch Circle Diameter (PD)
50.800
mm (Equiv. 2 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
53.975
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 43.180 mm
Hub Projection (HL): 12.700 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G051B-032-V16-127-127-CG
Spur Gears - 32 tooth - 50.8x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$212.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
40
|
Pitch Circle Diameter (PD)
63.500
mm (Equiv. 2.5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
66.675
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 42.926 mm
Hub Projection (HL): 12.700 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G064B-040-V16-127-127-CG
Spur Gears - 40 tooth - 63.5x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$247.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
40
|
Pitch Circle Diameter (PD)
63.500
mm (Equiv. 2.5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
66.675
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 42.926 mm
Hub Projection (HL): 12.700 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G064B-040-V16-127-127-CG
Spur Gears - 40 tooth - 63.5x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$247.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
48
|
Pitch Circle Diameter (PD)
76.200
mm (Equiv. 3 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
79.375
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 55.626 mm
Hub Projection (HL): 12.700 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G076B-048-V16-127-127-CG
Spur Gears - 48 tooth - 76.2x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$287.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
48
|
Pitch Circle Diameter (PD)
76.200
mm (Equiv. 3 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
79.375
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 55.626 mm
Hub Projection (HL): 12.700 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel |
||||||
|
Part Number: G076B-048-V16-127-127-CG
Spur Gears - 48 tooth - 76.2x12.7 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$287.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|

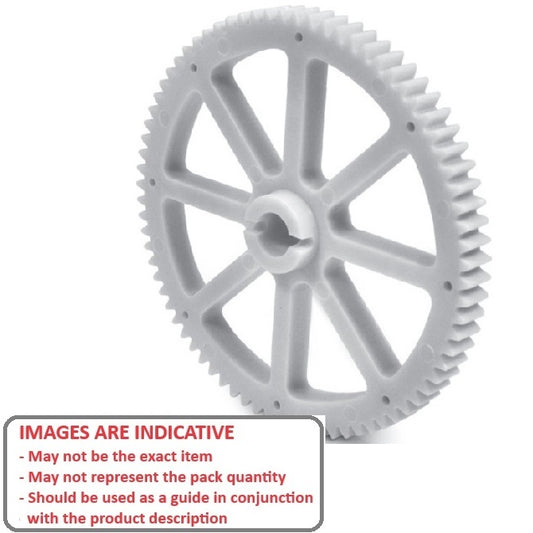

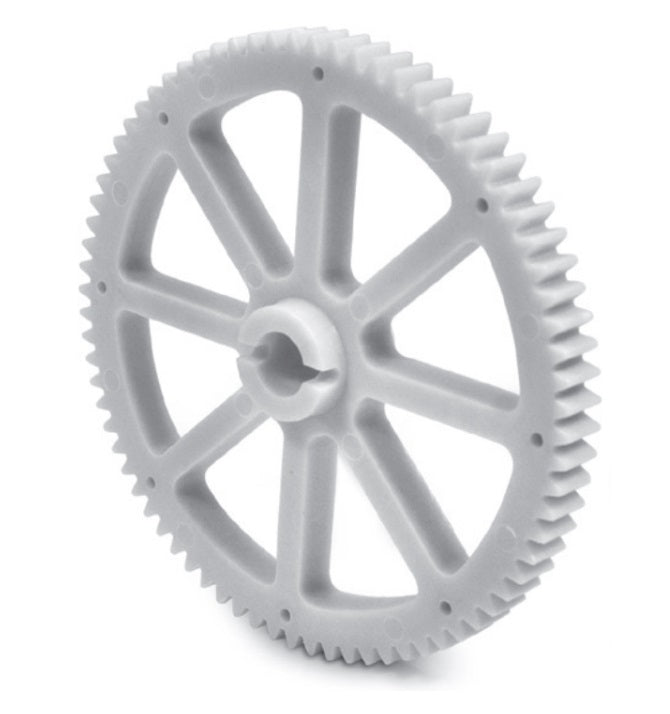

Number of Teeth
76
|
Pitch Circle Diameter (PD)
120.65
mm (Equiv. 4.75 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
123.825
mm |
Face Width (FW)
9.53
mm |
Type
Hubbed
|
|
|
Material: Glass Filled Acetal
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic |
||||||
|
Part Number: G121B-076-D16-095-127-AGPD
Spur Gears - 76 tooth - 120.65x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
76
|
Pitch Circle Diameter (PD)
120.65
mm (Equiv. 4.75 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
123.825
mm |
|
||
|
Material: Glass Filled Acetal
Face Width (FW): 9.53 mm
Type: Hubbed
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic |
||||||
|
Part Number: G121B-076-D16-095-127-AGPD
Spur Gears - 76 tooth - 120.65x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Number of Teeth
80
|
Pitch Circle Diameter (PD)
127.00
mm (Equiv. 5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
130.175
mm |
Face Width (FW)
9.53
mm |
Type
Hubbed
|
|
|
Material: Glass Filled Acetal
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic |
||||||
|
Part Number: G127B-080-D16-095-127-AGPD
Spur Gears - 80 tooth - 127x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Number of Teeth
80
|
Pitch Circle Diameter (PD)
127.00
mm (Equiv. 5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
130.175
mm |
|
||
|
Material: Glass Filled Acetal
Face Width (FW): 9.53 mm
Type: Hubbed
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic |
||||||
|
Part Number: G127B-080-D16-095-127-AGPD
Spur Gears - 80 tooth - 127x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
